SLOT GRATING SQUARE - (790.268.000.10)
×
![]()
Part Of the Series: Grating-Drain-300
Type no.: 790.268.000.10
EAN no.: 5705499113648
RSK no.: 7123459
NRF no.: 3396408
LVI no.: 3304037
Size: 300x300

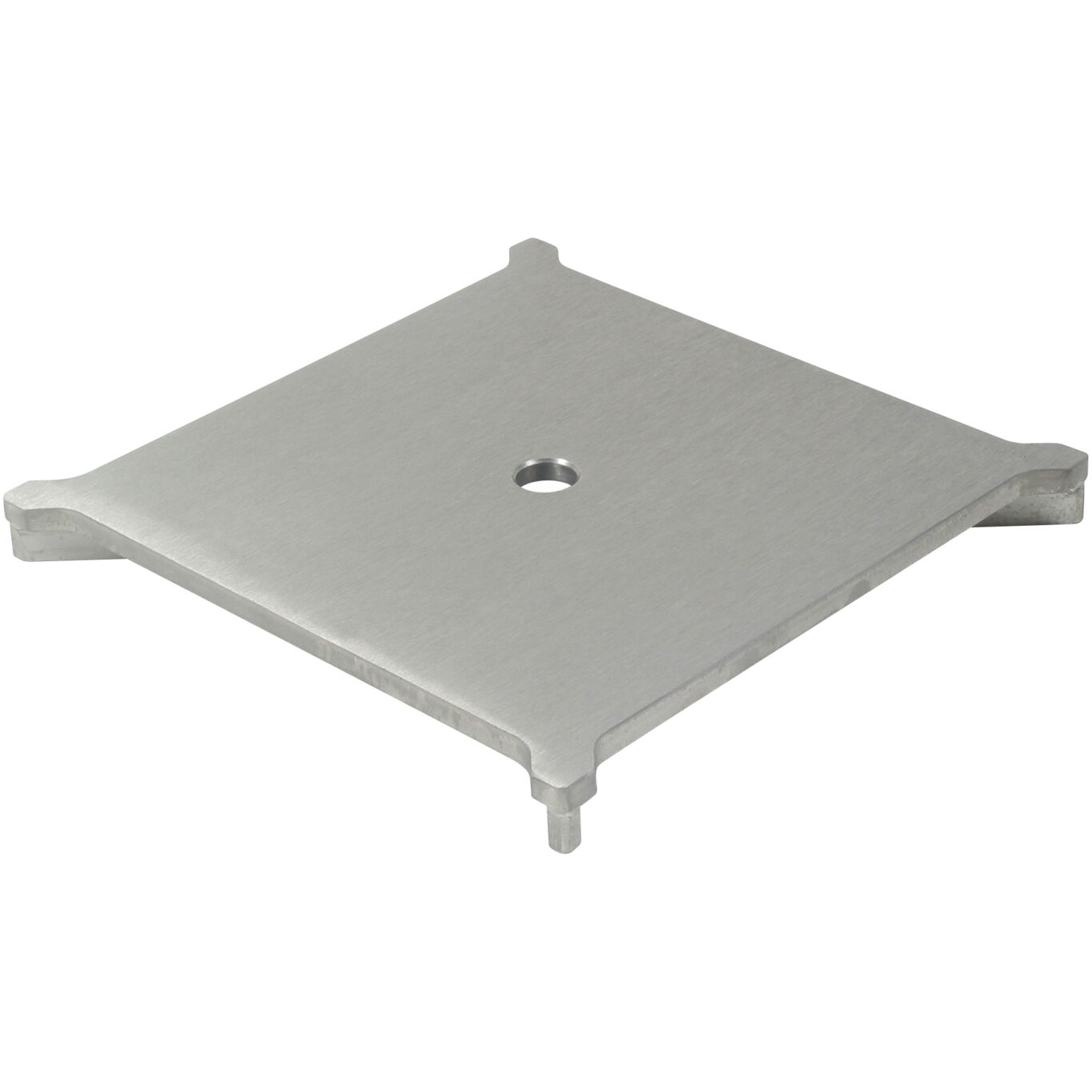

SLOT GRATING SQUARE
-Grating: 270x270mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | R50 |
| Load Class EN1253 (kg) | R50 (6000) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Square |
| Size (mm) | 300x300 |
| Weight (kg) | 5,11 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
