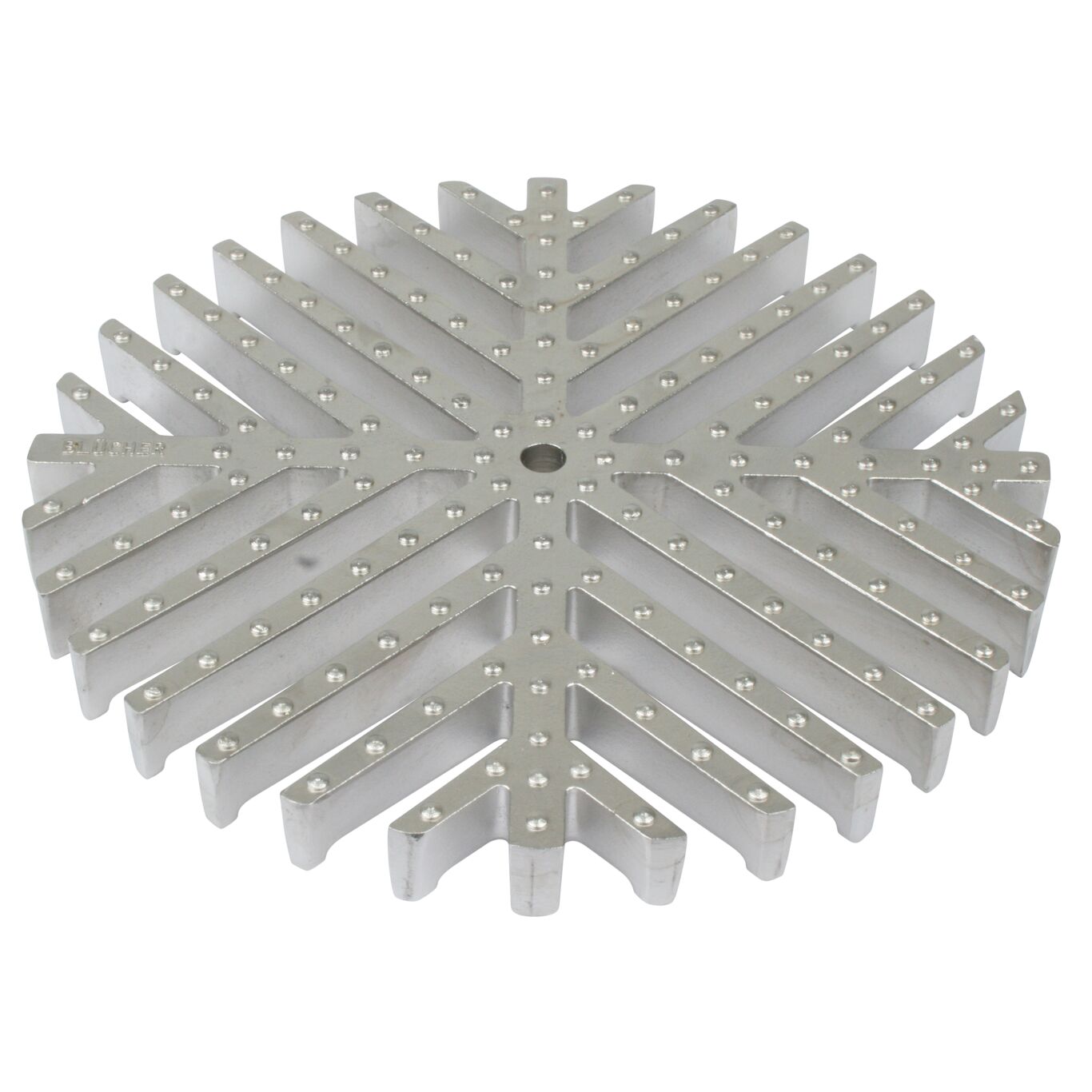

HYGIENICPRO GRATING CIRCLE - (790.273.000.60 S)
×
![]()
Part Of the Series: Grating-Drain-305-Vinyl-332
Type no.: 790.273.000.60 S
EAN no.: 5705499138672
Size: Ø295
HYGIENICPRO GRATING CIRCLE
-Grating: Ø273mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Load Class EN1253 | R50 |
| Load Class EN1253 (kg) | R50 (5000) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 24 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Round |
| Size (mm) | Ø295 |
| Weight (kg) | 4,43 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
