LADDER GRATING CIRCLE - (790.273.000.28)
×
![]()
Part Of the Series: Grating-Drain-305-Vinyl-332
Type no.: 790.273.000.28
EAN no.: 5705499128635
RSK no.: 7123465
NRF no.: 3397197
Size: Ø295

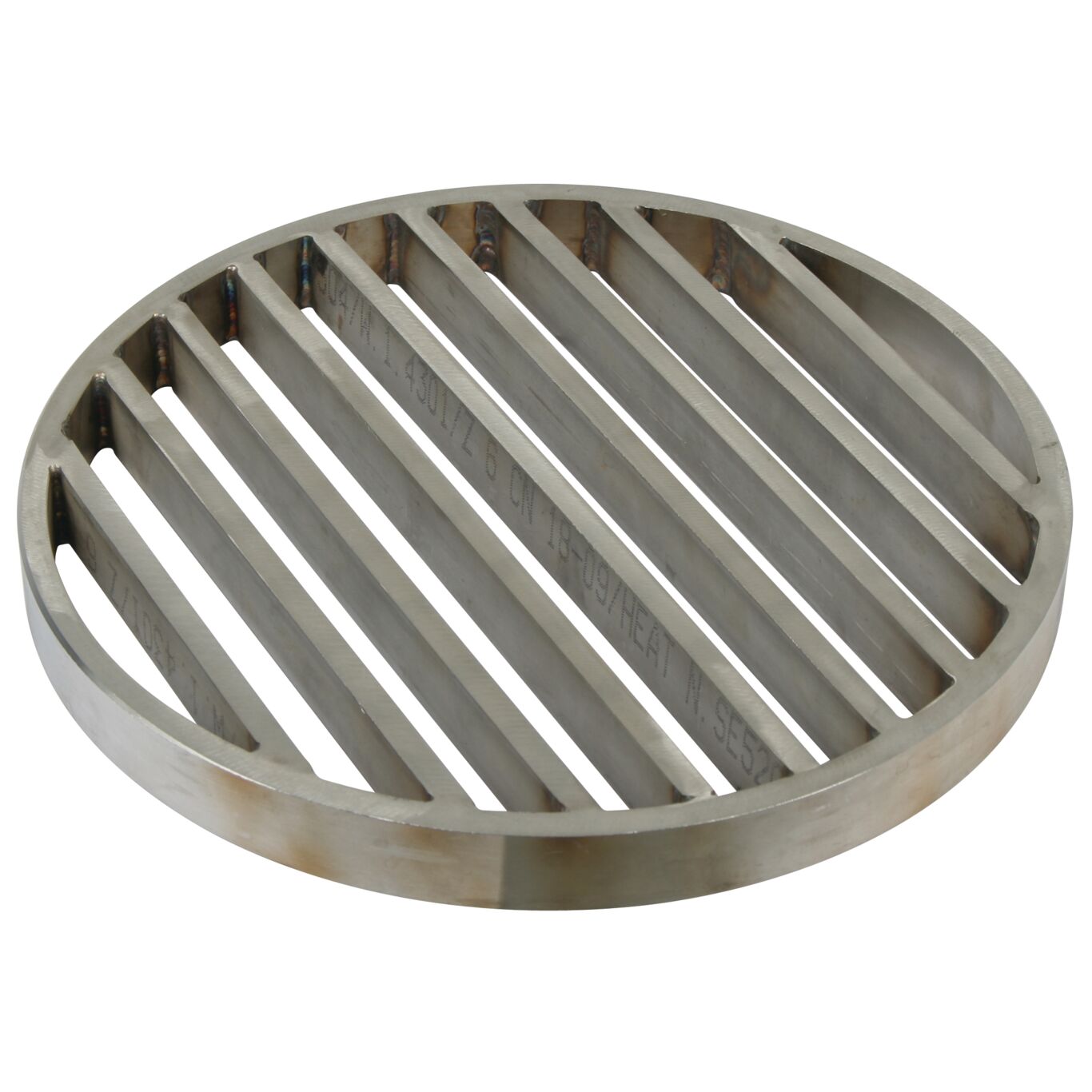

LADDER GRATING CIRCLE
-8mm material, fully welded

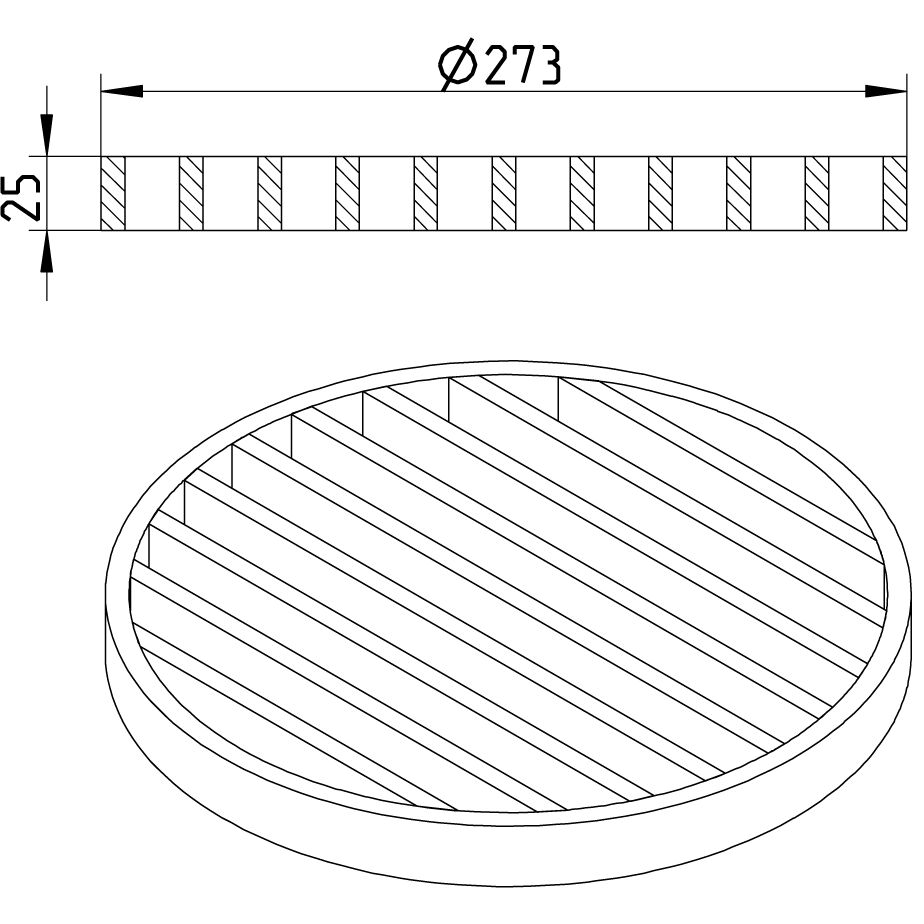

-Grating: Ø273mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | M125 |
| Load Class EN1253 (kg) | M125 (10000) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R11 |
| Number of Screws | 0 |
| Shape | Round |
| Size (mm) | Ø295 |
| Weight (kg) | 4,35 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
