GRATING TRIO ATHENS - (620.300.031)
×
![]()
Part Of the Series: Grating-Drain-triangular
Type no.: 620.300.031
EAN no.: 5705499122855
VVS no.: 153309072
RSK no.: 7121717
NRF no.: 3394817

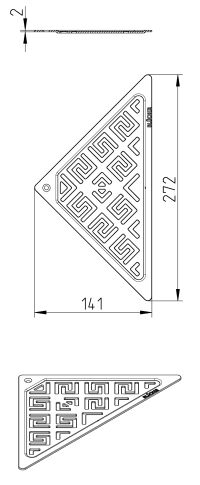

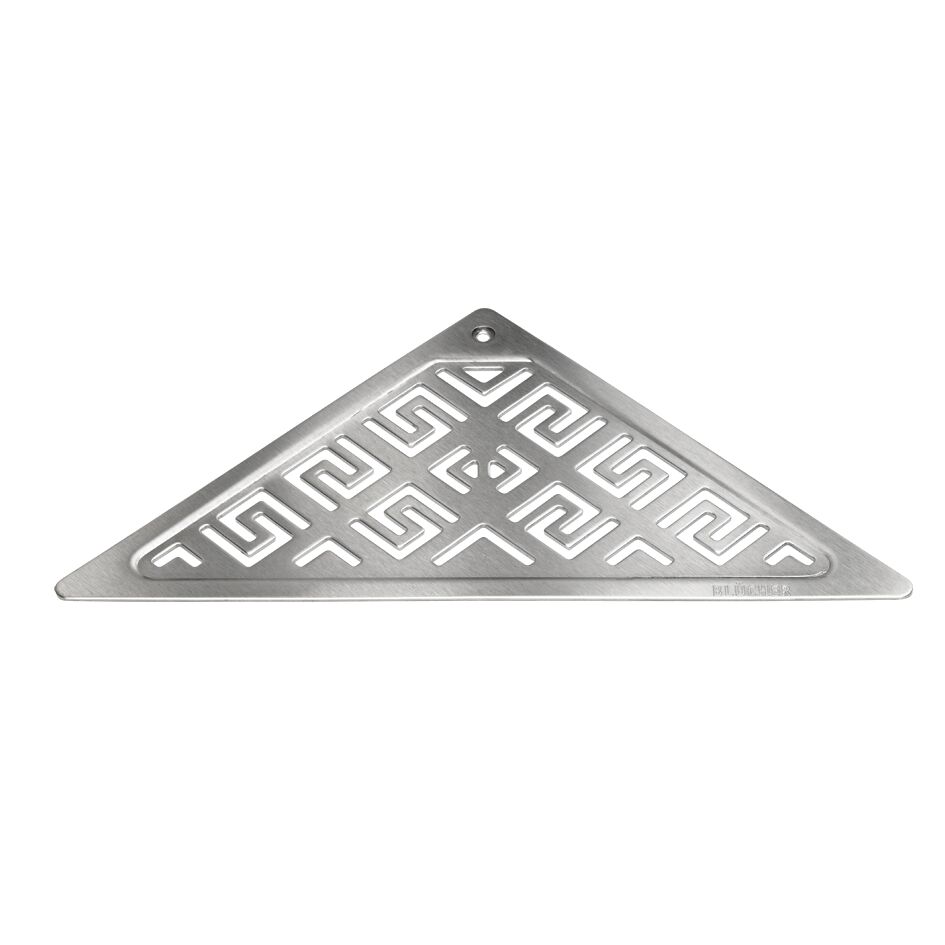

GRATING TRIO ATHENS
-With screw lock
-Grating: triangular
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 2 |
| Number of Screws | 1 |
| Shape | Triangular |
| Weight (kg) | 0,26 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
