GRATING LINE COPENHAGEN 1000 - (697.004.100)
×
![]()
Part Of the Series: Grating-Shower channel
Type no.: 697.004.100
EAN no.: 5705499119299
VVS no.: 155071110
RSK no.: 7121731
NRF no.: 3394769
LVI no.: 3304432
Size: 50x1000
GRATING LINE COPENHAGEN 1000

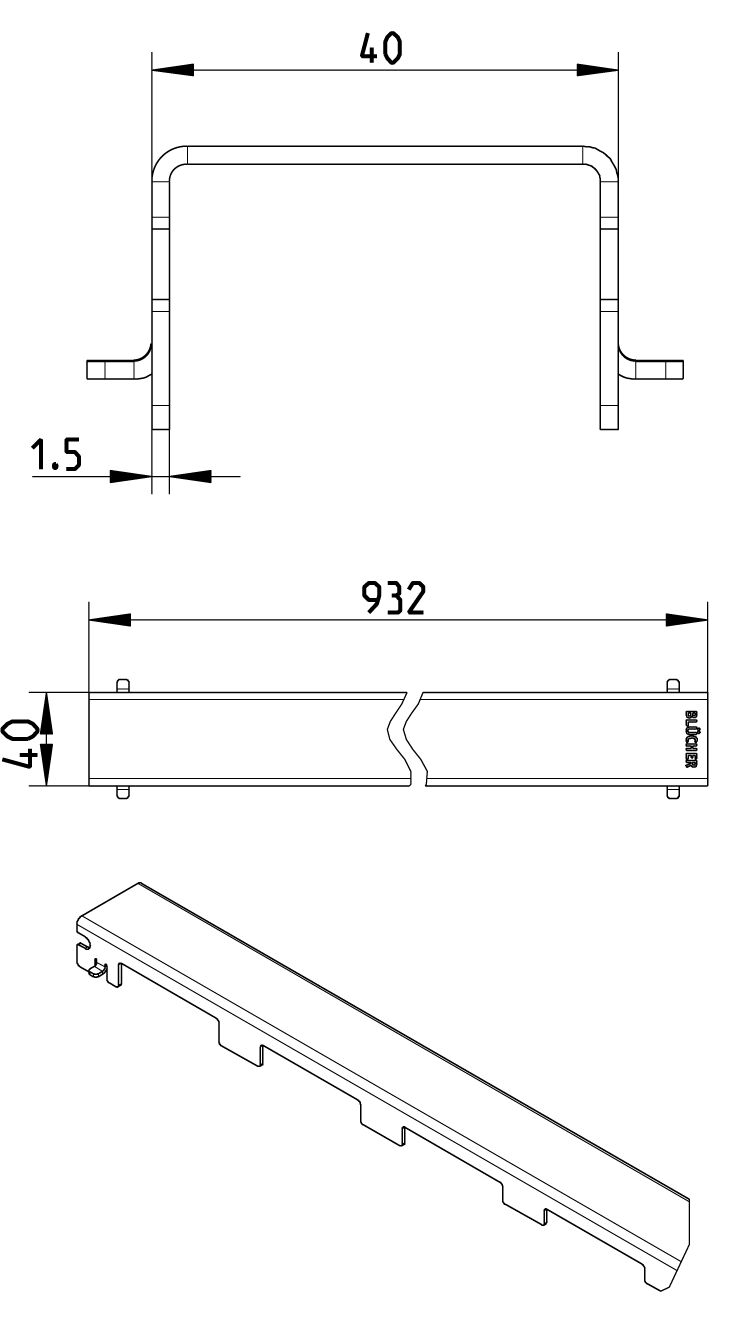

-Grating: 40x932mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 1.1 |
| Number of Screws | 0 |
| Size (mm) | 50x1000 |
| Weight (kg) | 0,67 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
