GRATING LINE DETROIT 300 - (697.006.030)
×
![]()
Part Of the Series: Grating-Shower channel
Type no.: 697.006.030
EAN no.: 5705499122862
VVS no.: 155075103
RSK no.: 7121737
NRF no.: 3394776
LVI no.: 3304438
Size: 50x300

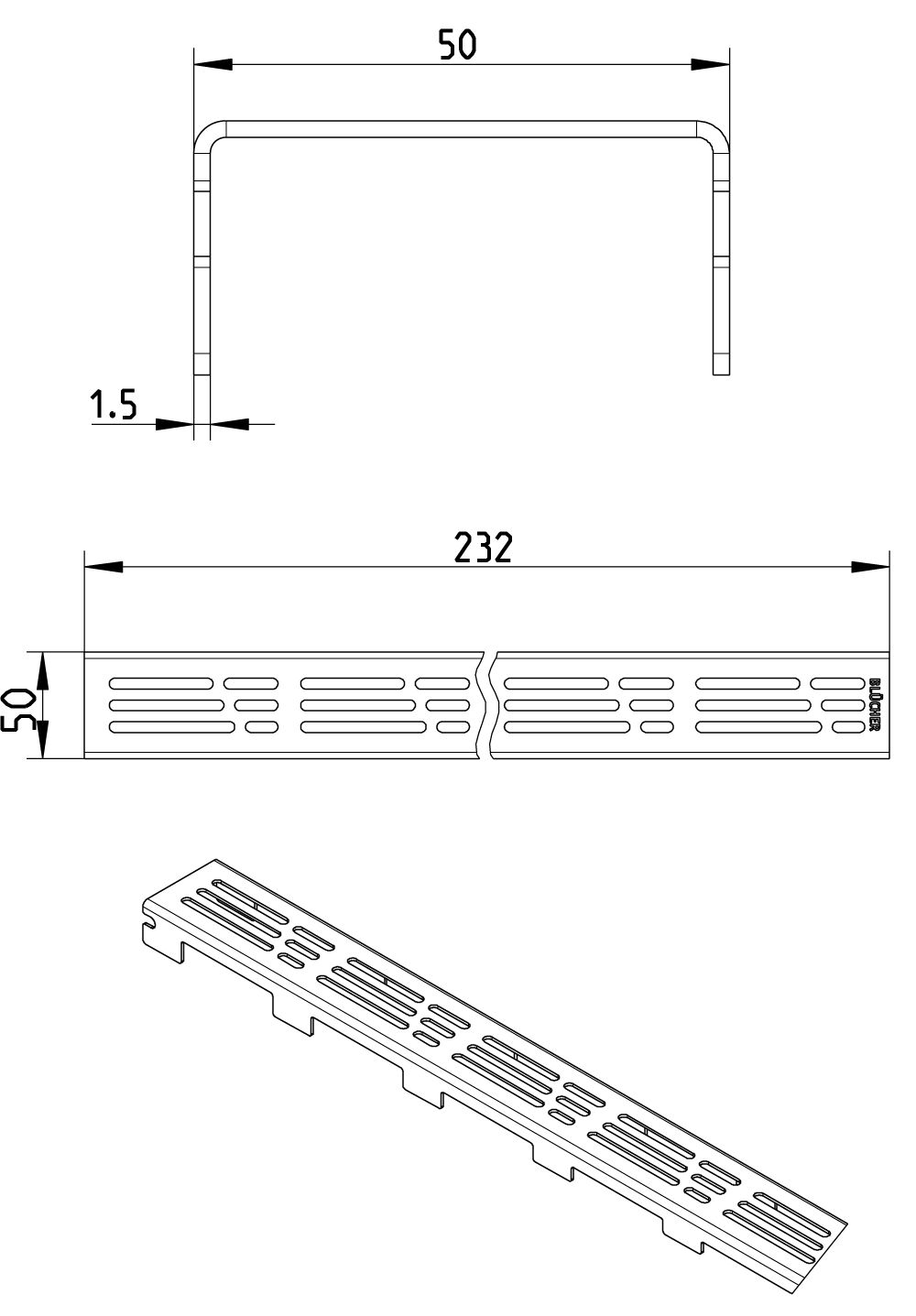

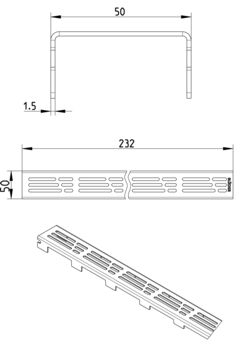

GRATING LINE DETROIT 300
-Grating: 50x232mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 0.6 |
| Number of Screws | 0 |
| Size (mm) | 50x300 |
| Weight (kg) | 0,17 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
