TRIANGULAR FLANGE FOR LIQUID MEMBRAN - (326.003.000)
×
![]()
Part Of the Series: Intermediate section
Type no.: 326.003.000
EAN no.: 5705499120240
RSK no.: 7119832

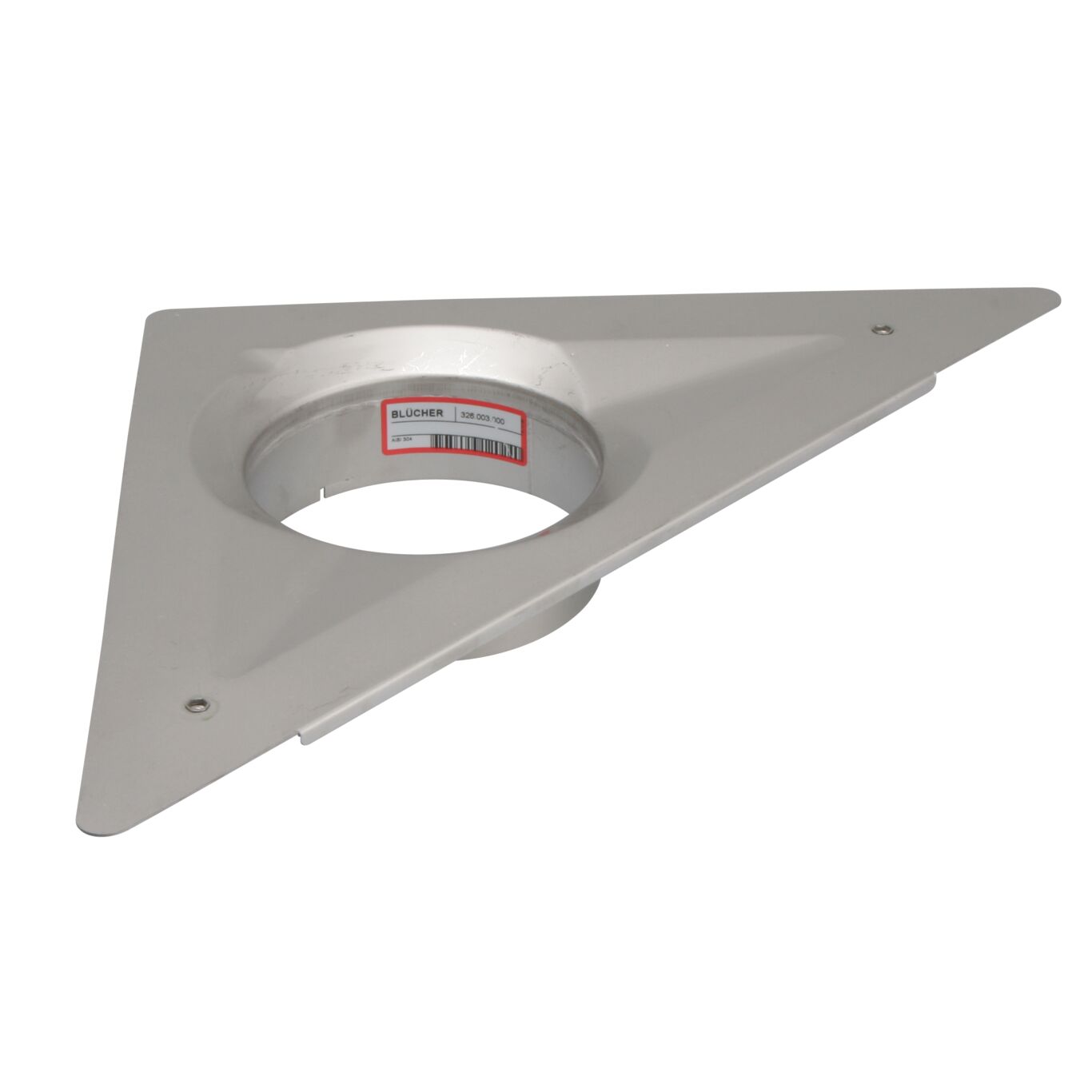

TRIANGULAR FLANGE FOR LIQUID MEMBRAN
-Flange: triangular
-Stainless steel: AISI304/EN1.4301

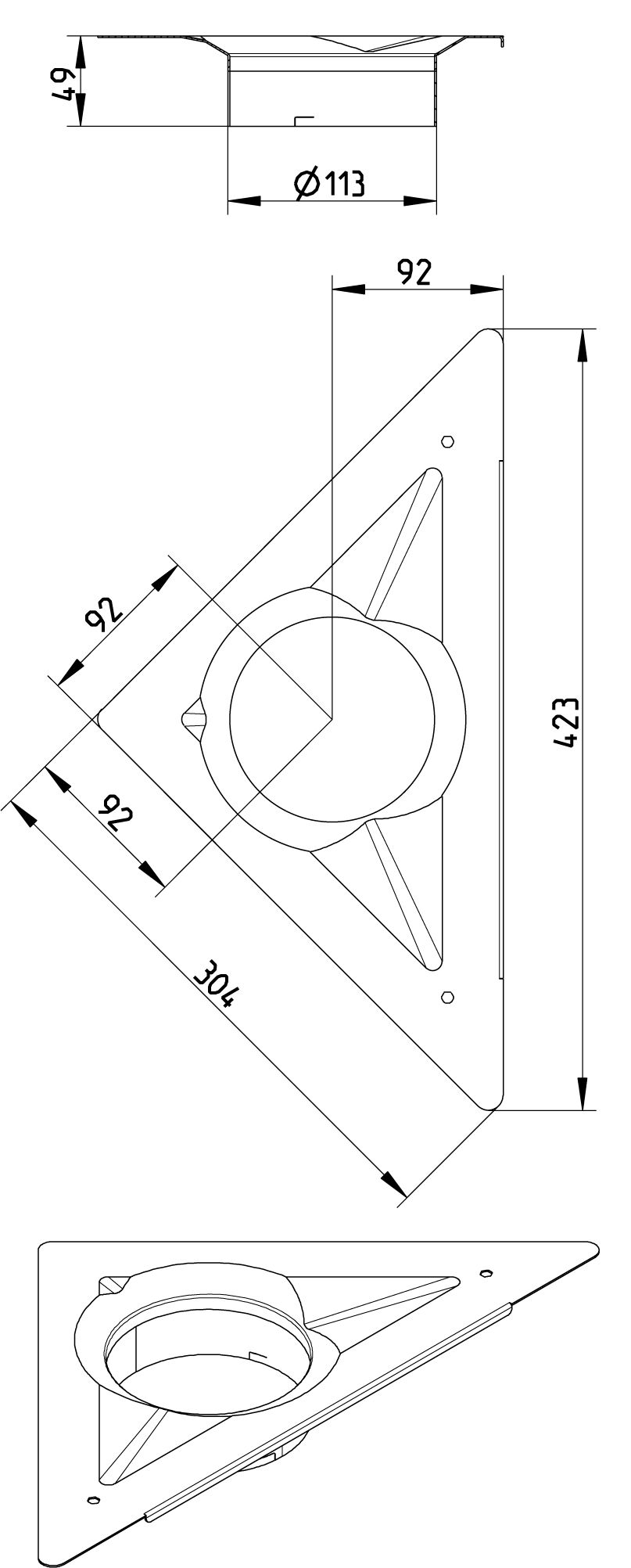

| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 49 |
| Outlet Diameter (mm) | 110 |
| Shape | Triangular |
| Weight (kg) | 0,42 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
