ADJUSTABLE LOWER PART FLANGE - (310.020.050)
×
![]()
Part Of the Series: Lower part-110
Type no.: 310.020.050
EAN no.: 5705499141672

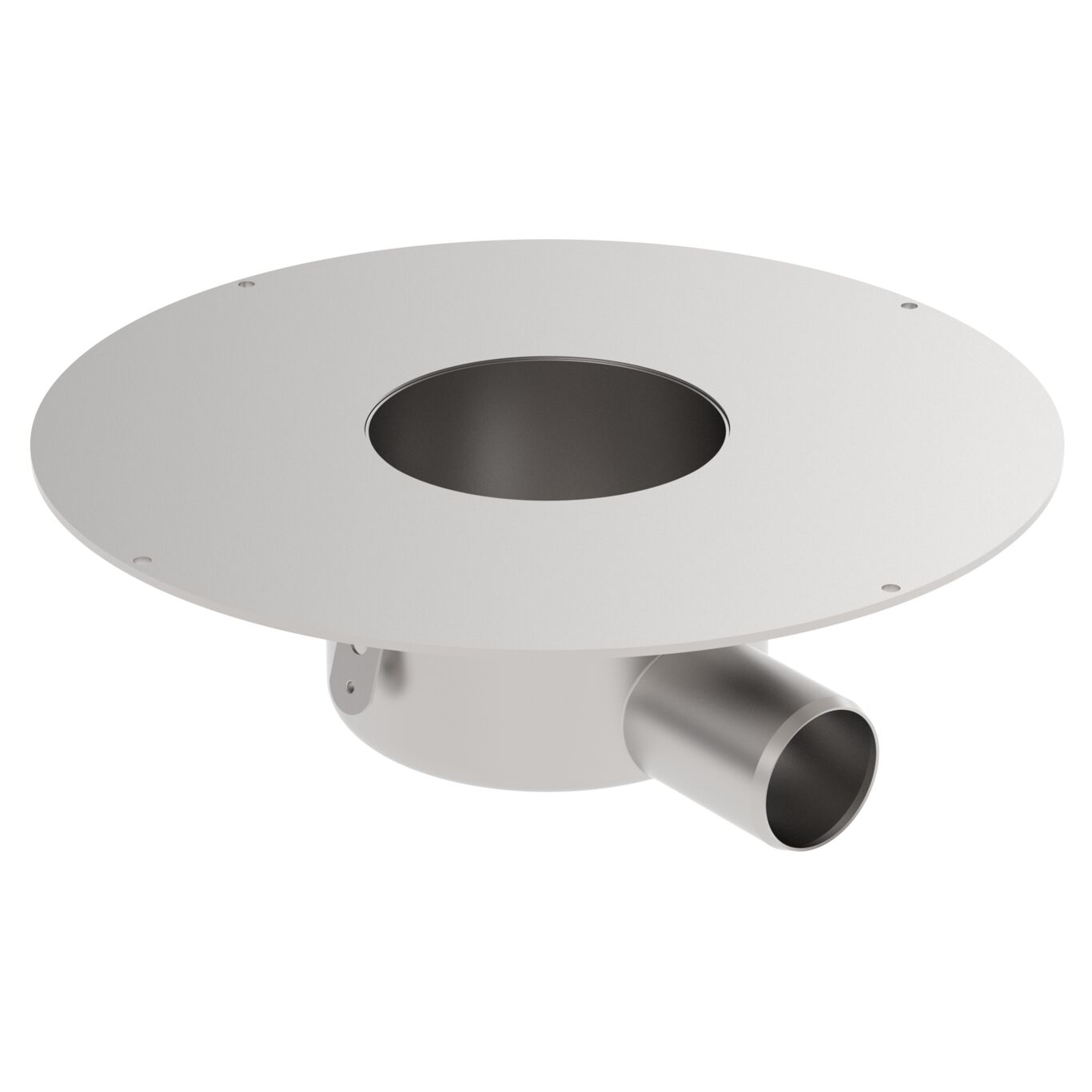

ADJUSTABLE LOWER PART FLANGE
-Liquid Membrane Flange
-Outlet: Ø50mm, horizontal
-Stainless Steel AISI304/EN1.14301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 106 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Weight (kg) | 2,50 |
-
