MOUNTING SET SQUARE VIENNA - (620.200.017)
×
![]()
Part Of the Series: MULTI top-145
Type no.: 620.200.017
EAN no.: 5705499123517
RSK no.: 7122078
Size: 145x145

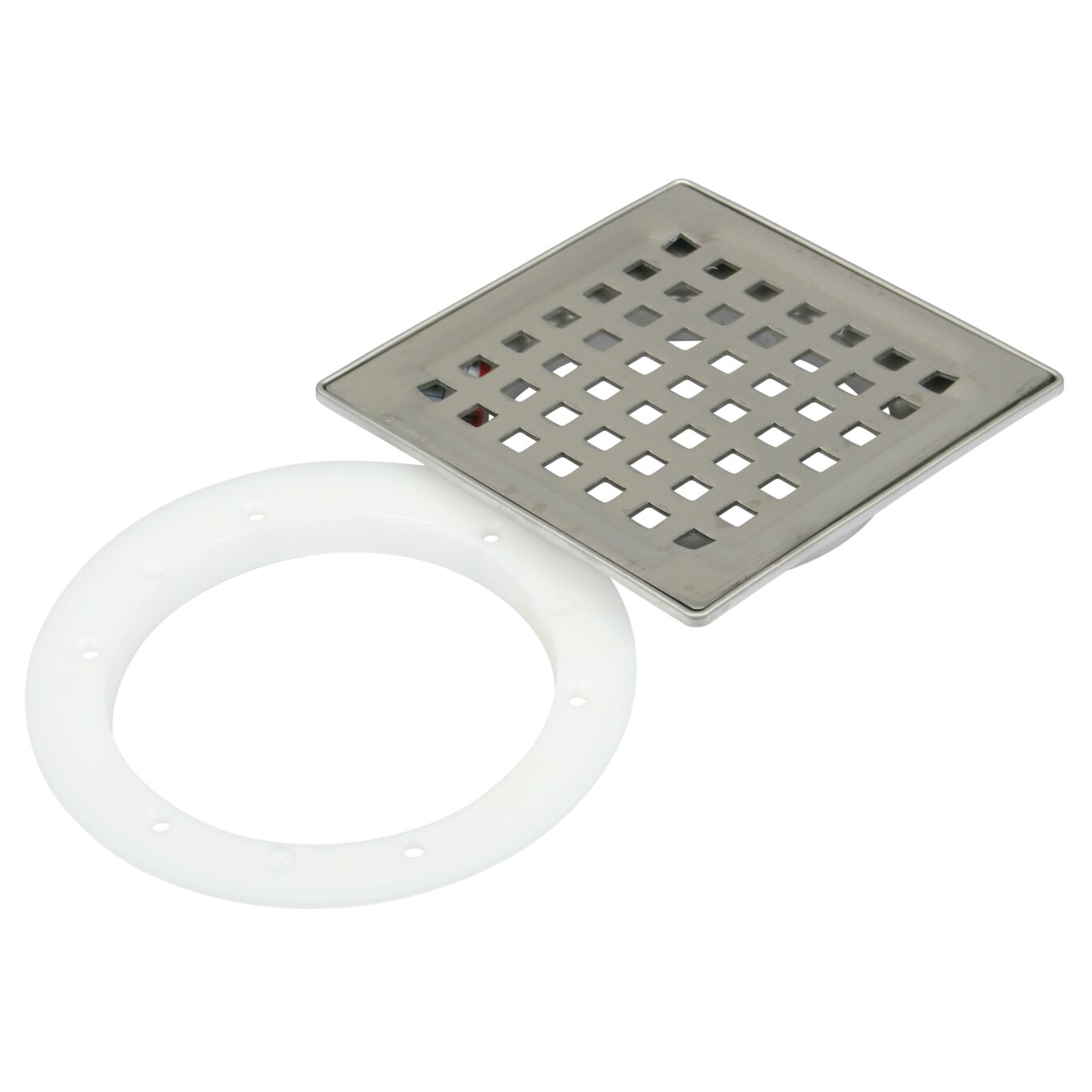

MOUNTING SET SQUARE VIENNA
-With clamping ring
-Floor: concrete and tiled
-Frame: 145x145mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 27 |
| Number of Screws | 0 |
| Outlet Diameter (mm) | 110 |
| Shape | Square |
| Size (mm) | 145x145 |
| Weight (kg) | 0,54 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
