MOUNTING SET CIRCLE VIENNA - (620.200.003 S)
×
![]()
Part Of the Series: MULTI top-180
Type no.: 620.200.003 S
EAN no.: 5705499105957
RSK no.: 7120184
NRF no.: 3394505
LVI no.: 3304801
Size: Ø180

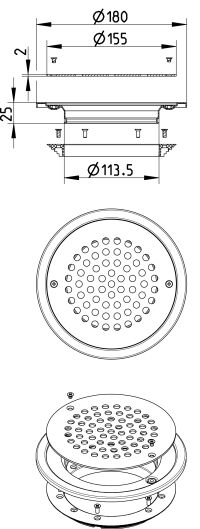

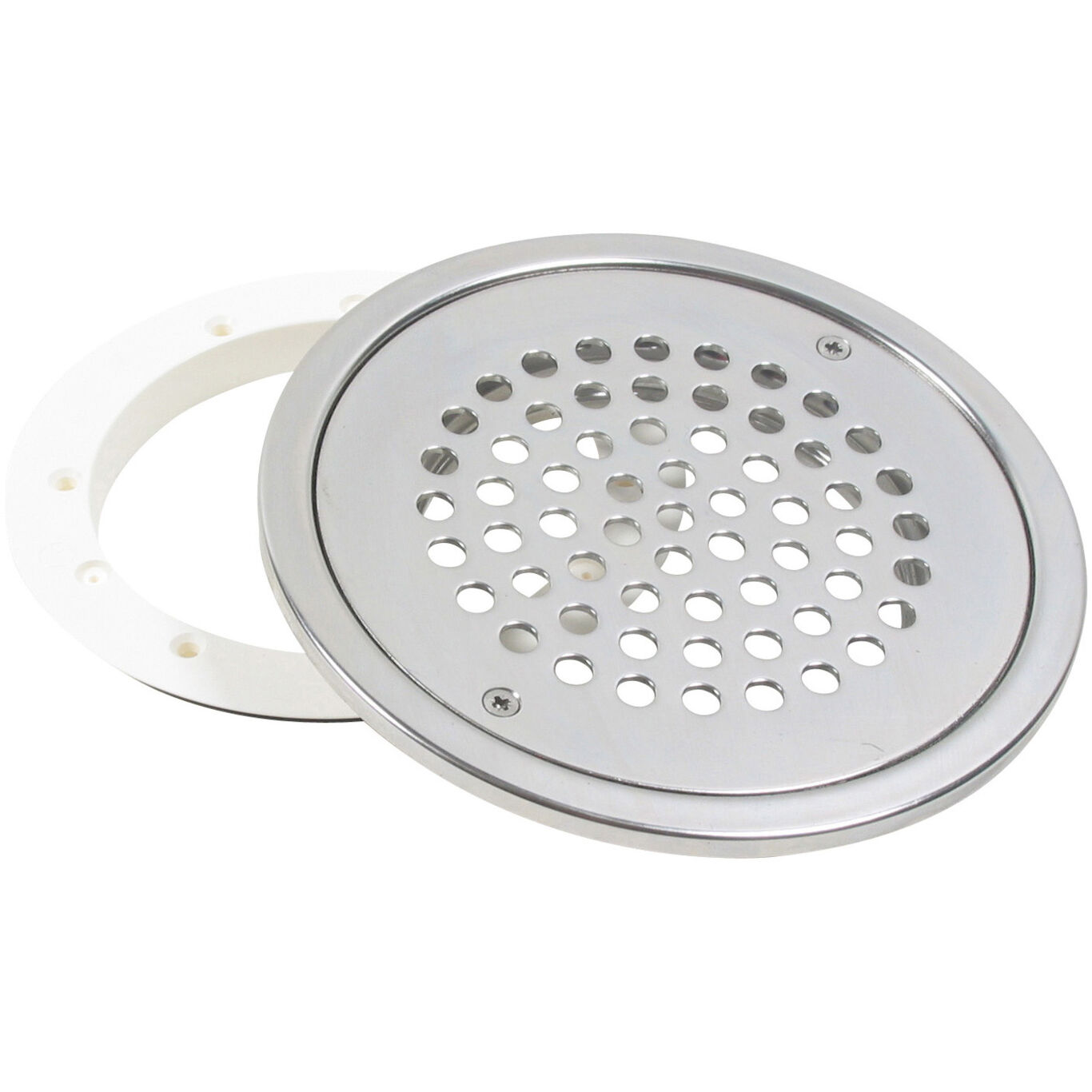

MOUNTING SET CIRCLE VIENNA
-With screw lock and clamping ring
-Floor: resin
-Frame: Ø180mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Resin |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Number of Screws | 2 |
| Shape | Round |
| Size (mm) | Ø180 |
| Weight (kg) | 0,50 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
