MOUNTING SET CIRCLE VIENNA, CUT C - (620.200.003 CS)
×
![]()
Part Of the Series: MULTI top-180
Type no.: 620.200.003 CS
EAN no.: 5705499107814
RSK no.: 7120112
LVI no.: 3305793
Size: Ø180

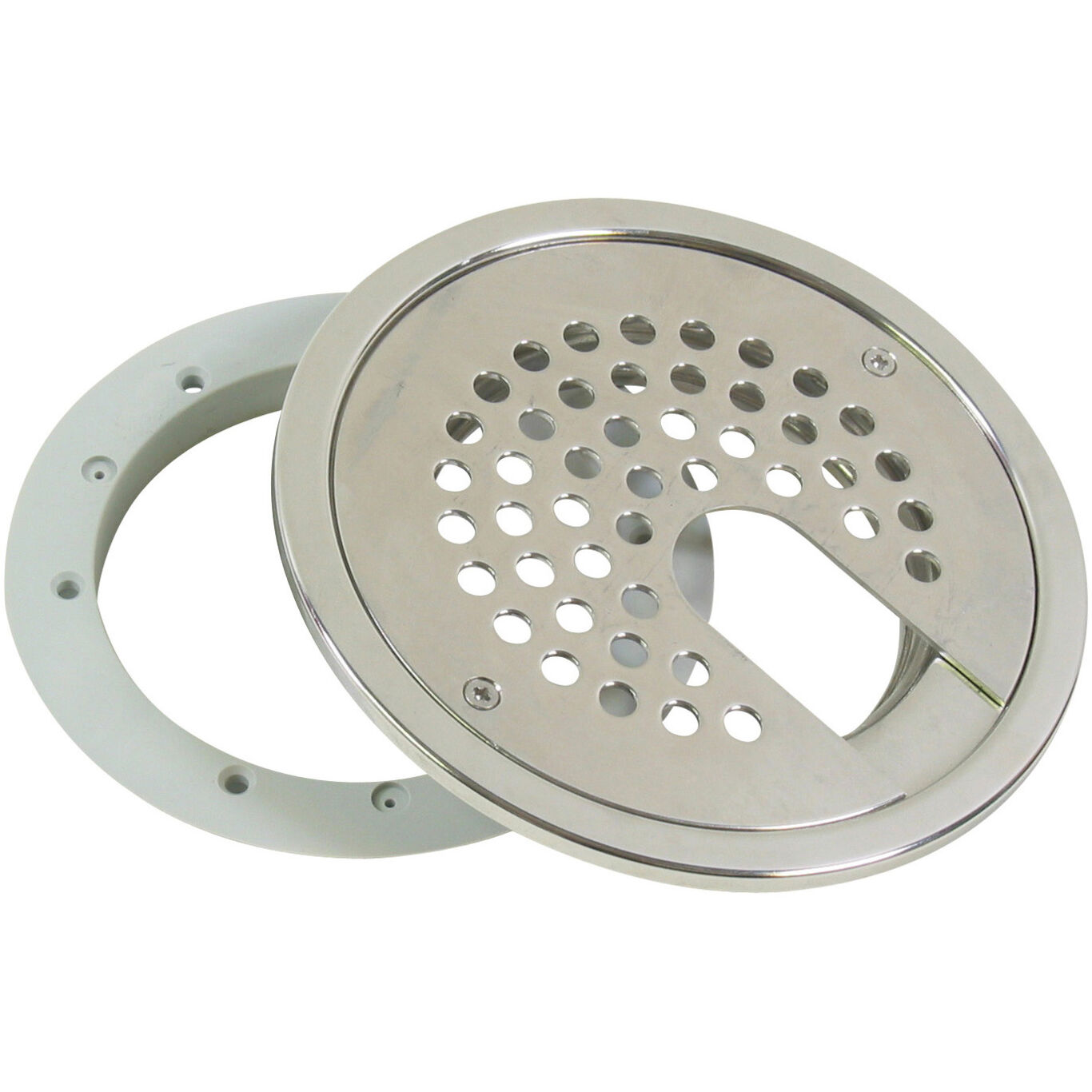

MOUNTING SET CIRCLE VIENNA, CUT C
-With screw lock and clamping ring
-Floor: resin

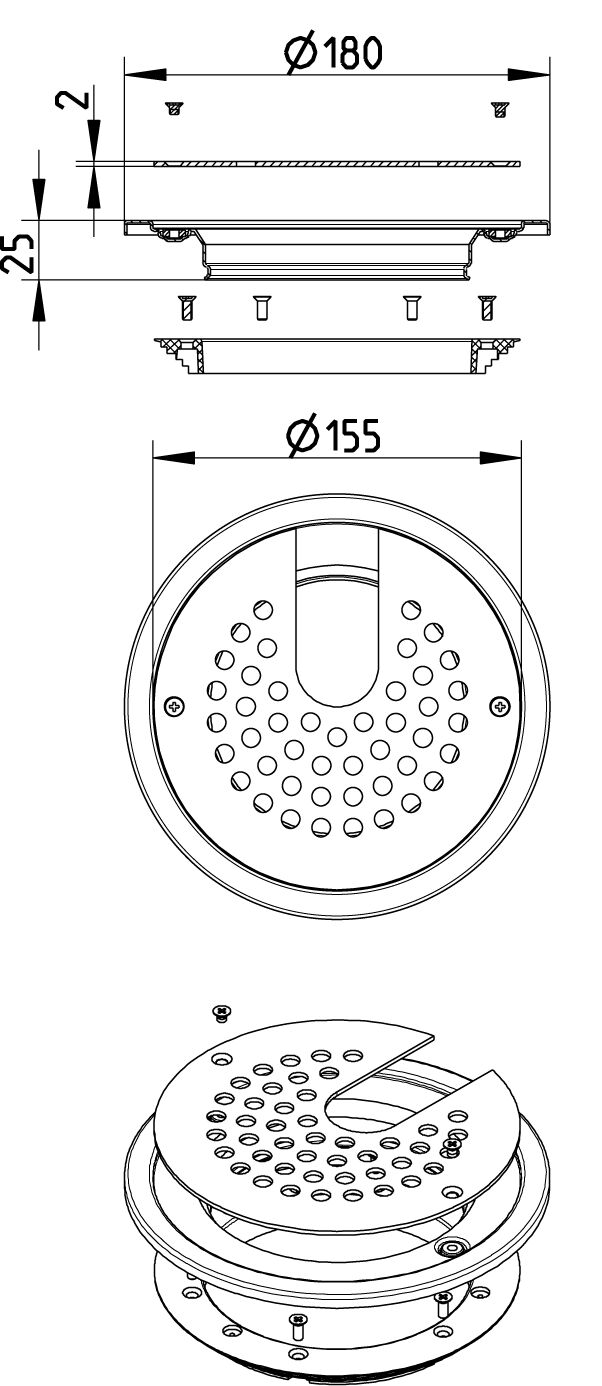

-Frame: Ø180mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Resin |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Number of Screws | 2 |
| Shape | Round |
| Size (mm) | Ø180 |
| Weight (kg) | 0,50 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
