MOUNTING SET SQUARE TOKYO - (650.200.008)
×
![]()
Part Of the Series: MULTI top-197
Type no.: 650.200.008
EAN no.: 5705499131970
RSK no.: 7122867
Size: 197x197

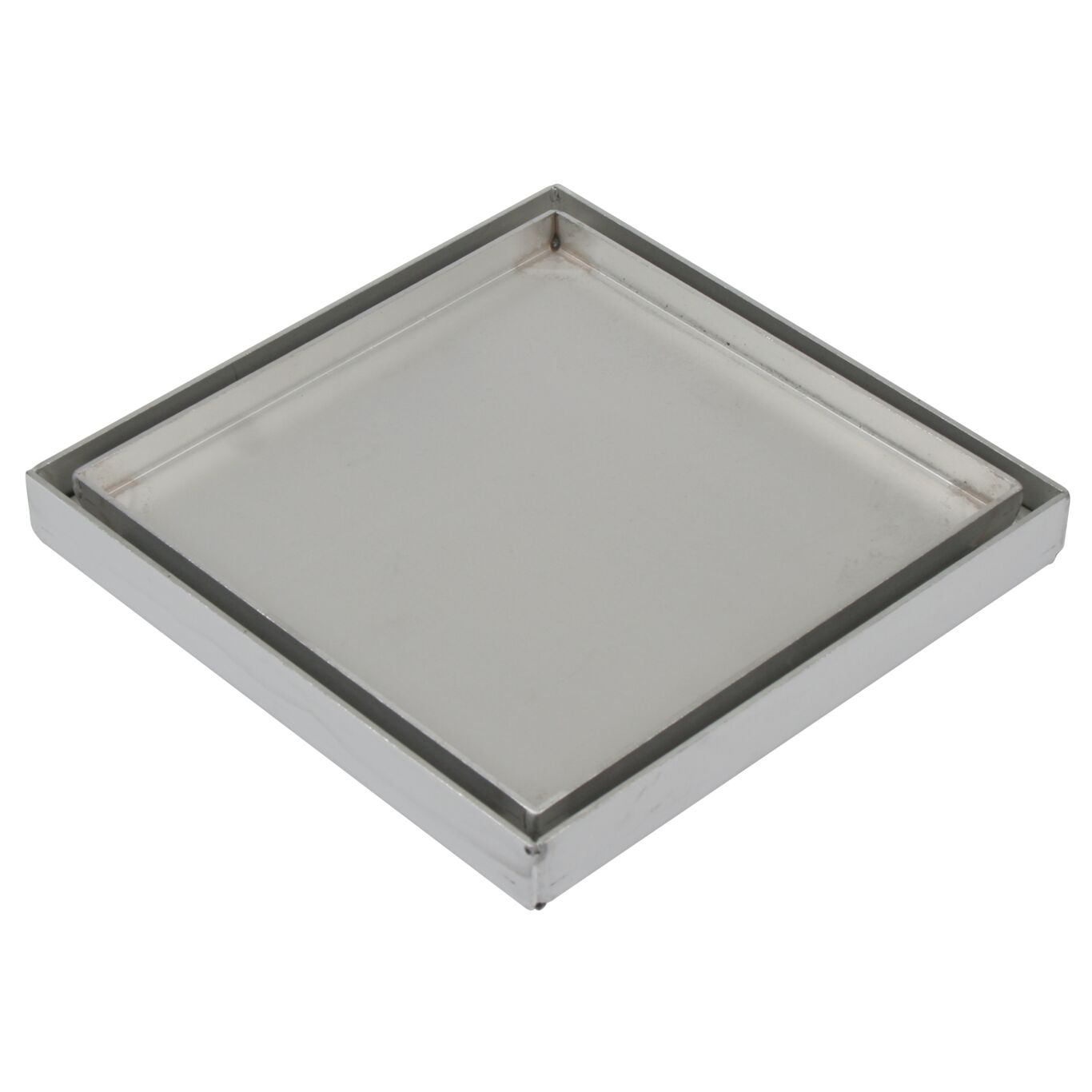

MOUNTING SET SQUARE TOKYO
-With clamping ring
-Floor: concrete and tiled

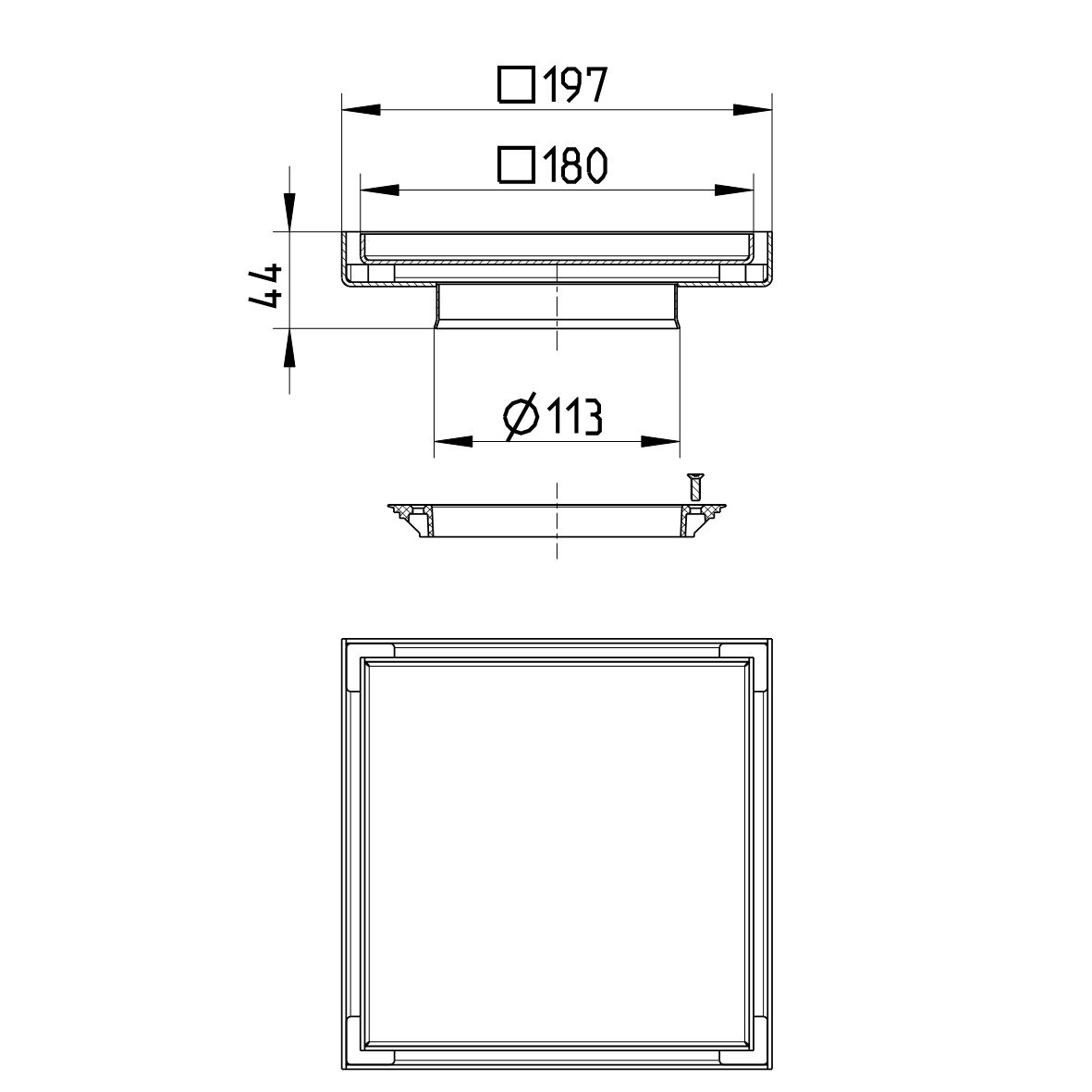

-Frame: 197x197mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 44 |
| Number of Screws | 0 |
| Shape | Square |
| Size (mm) | 197x197 |
| Weight (kg) | 0,80 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
