MOUNTING SET SQUARE ATHENS - (650.200.106)
×
![]()
Part Of the Series: MULTI top-200
Type no.: 650.200.106
EAN no.: 5705499127133
RSK no.: 7122052
NRF no.: 3394884
LVI no.: 3304135
Size: 200x200

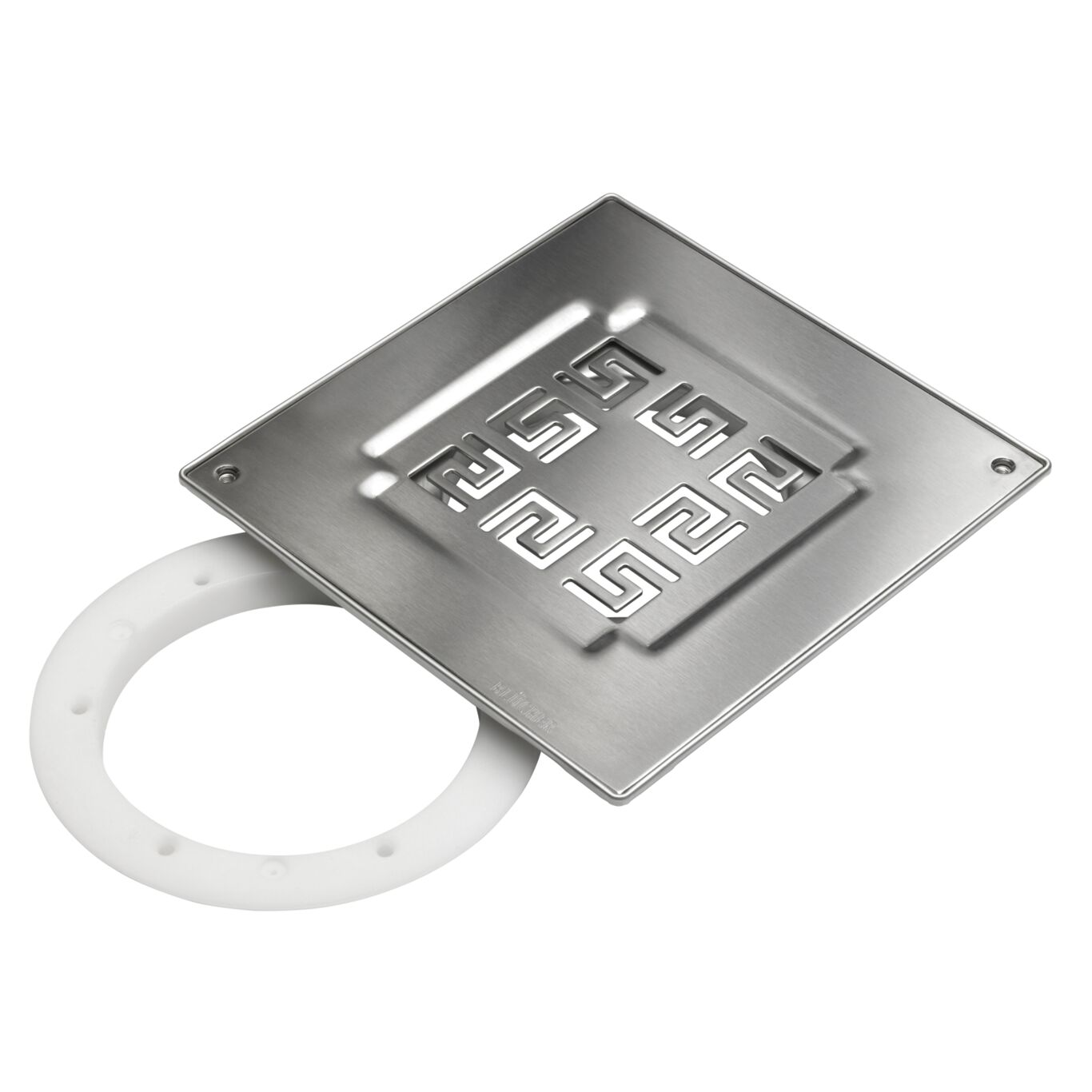

MOUNTING SET SQUARE ATHENS
-With screw lock and clamping ring
-Floor: concrete and tiled

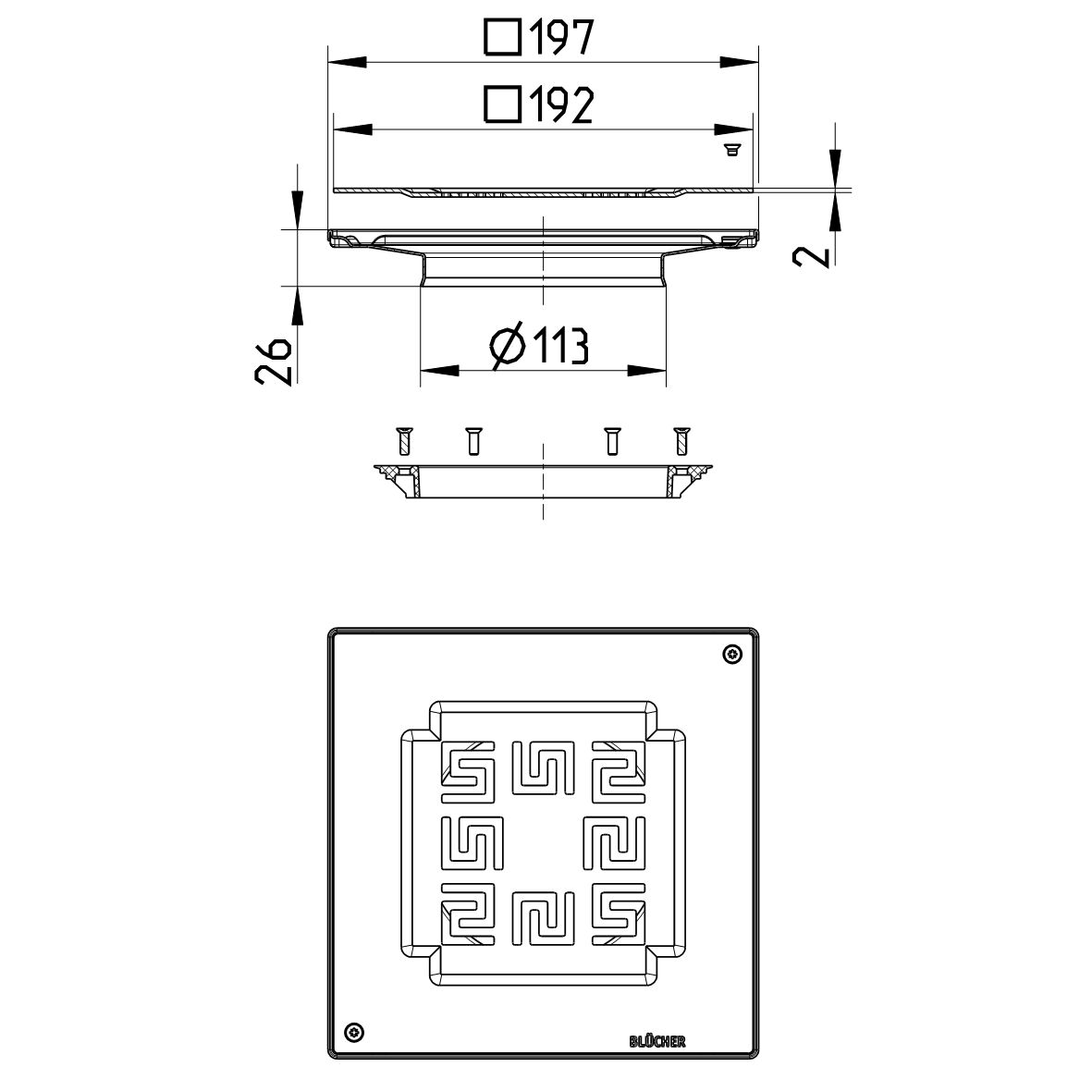

-Frame: 197x197mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 26 |
| Number of Screws | 2 |
| Shape | Square |
| Size (mm) | 200x200 |
| Weight (kg) | 1,00 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
