MOUNTING SET LINE TOKYO 1200 - (650.350.120)
×
![]()
Part Of the Series: MULTI top-Channel
Type no.: 650.350.120
EAN no.: 5705499135435
RSK no.: 7129527
NRF no.: 3394351
LVI no.: 3304189
Size: 130x1200

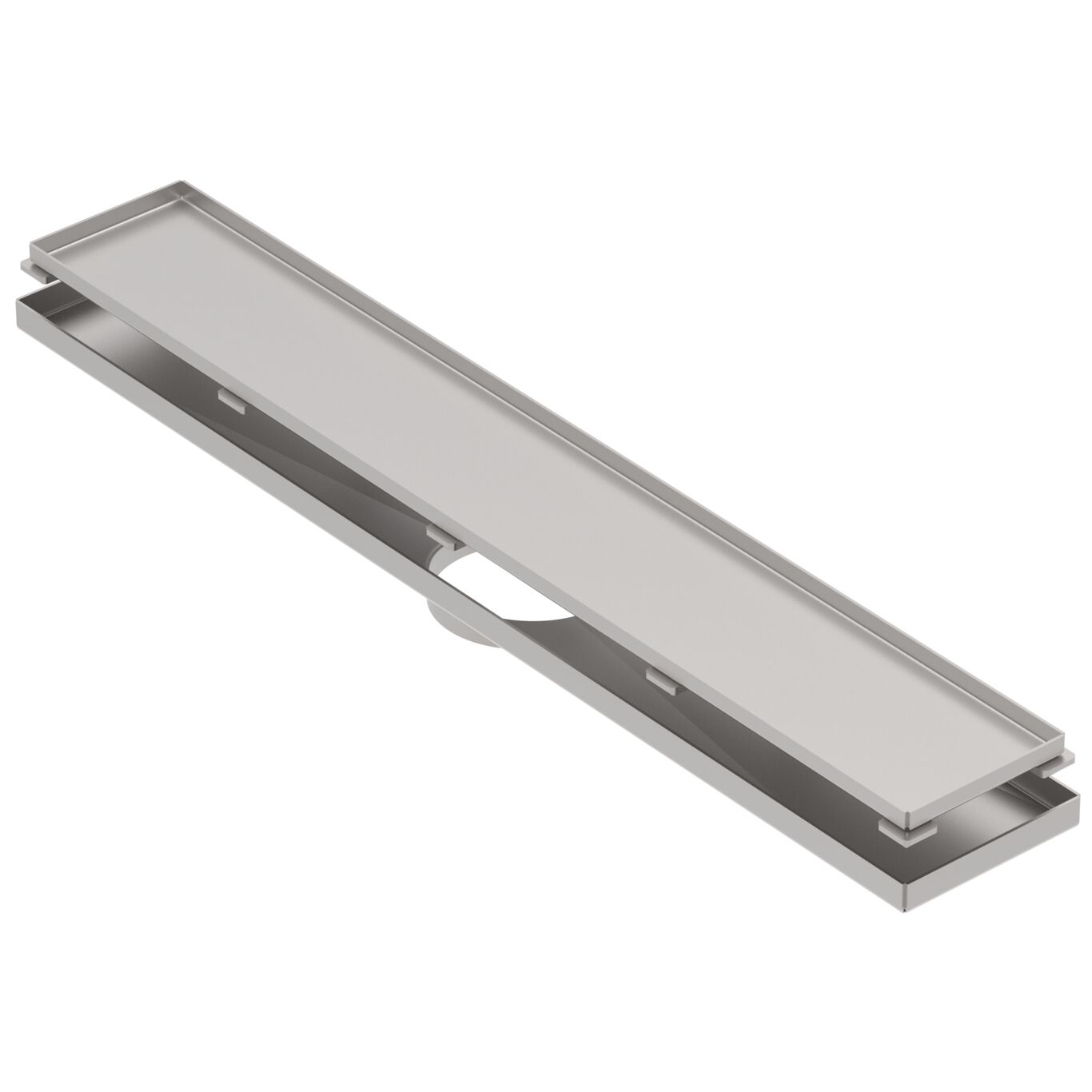

MOUNTING SET LINE TOKYO 1200
-With clamping ring
-Floor: concrete and tiled
-Frame: rectangular
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 (300) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 41 |
| Outlet Diameter (mm) | 112 |
| Shape | Rectangular |
| Size (mm) | 130x1200 |
| Weight (kg) | 6,15 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
