MOUNTING SET TRIO OSLO - (620.260.003)
×
![]()
Part Of the Series: MULTI top-Triangular
Type no.: 620.260.003
EAN no.: 5705499127263
RSK no.: 7122036
NRF no.: 3394564
LVI no.: 3303563

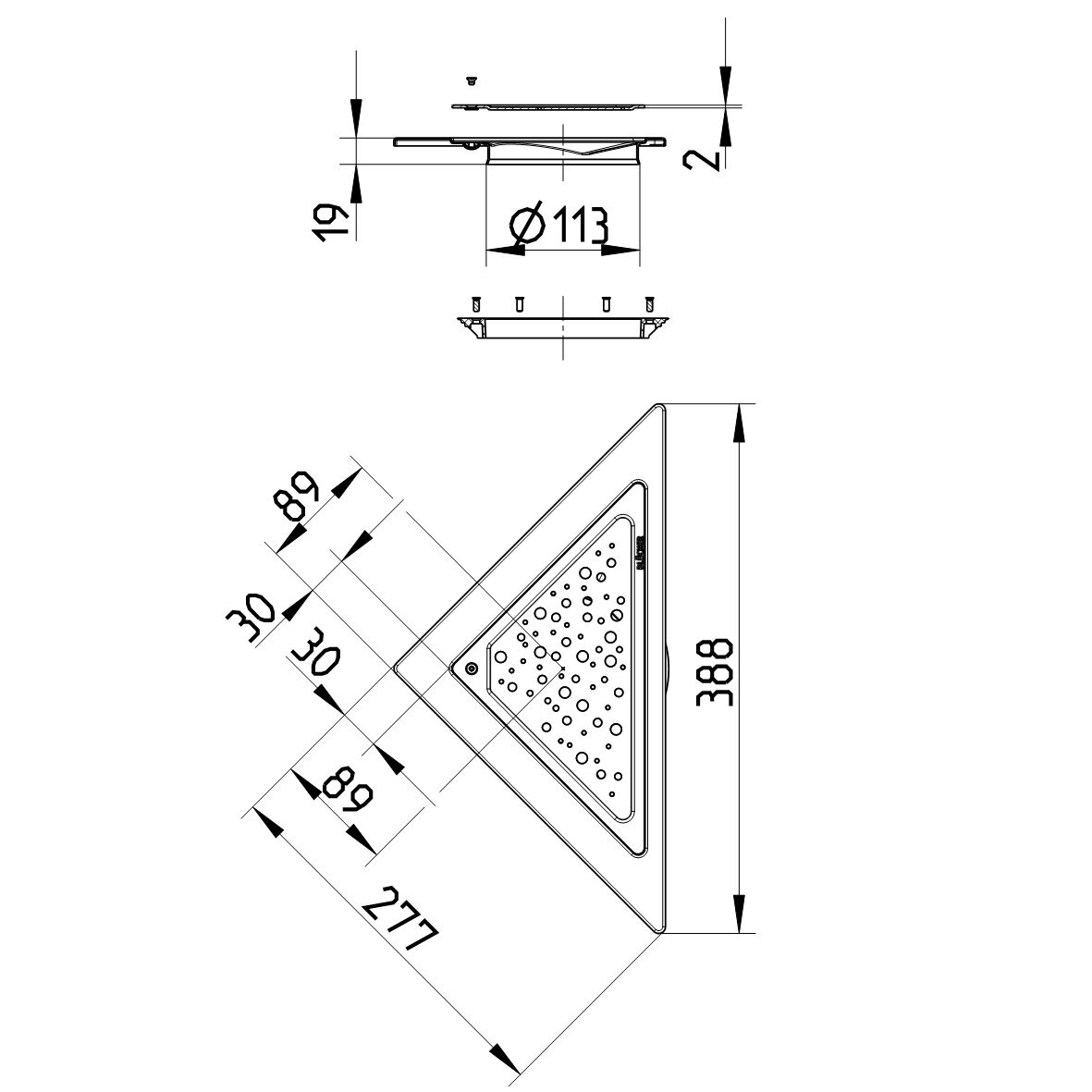

MOUNTING SET TRIO OSLO
-With screw lock and clamping ring, for installation in corner
-Floor: concrete and tiled
-Frame: triangular
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Installation | Corner |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 19 |
| Number of Screws | 1 |
| Shape | Triangular |
| Weight (kg) | 0,73 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
