MOUNTING SET CIRCLE COPENHAGEN - (620.300.040)
×
![]()
Part Of the Series: MULTI top-Vinyl-155
Type no.: 620.300.040
EAN no.: 5705499127300
LVI no.: 3303576
Size: Ø155

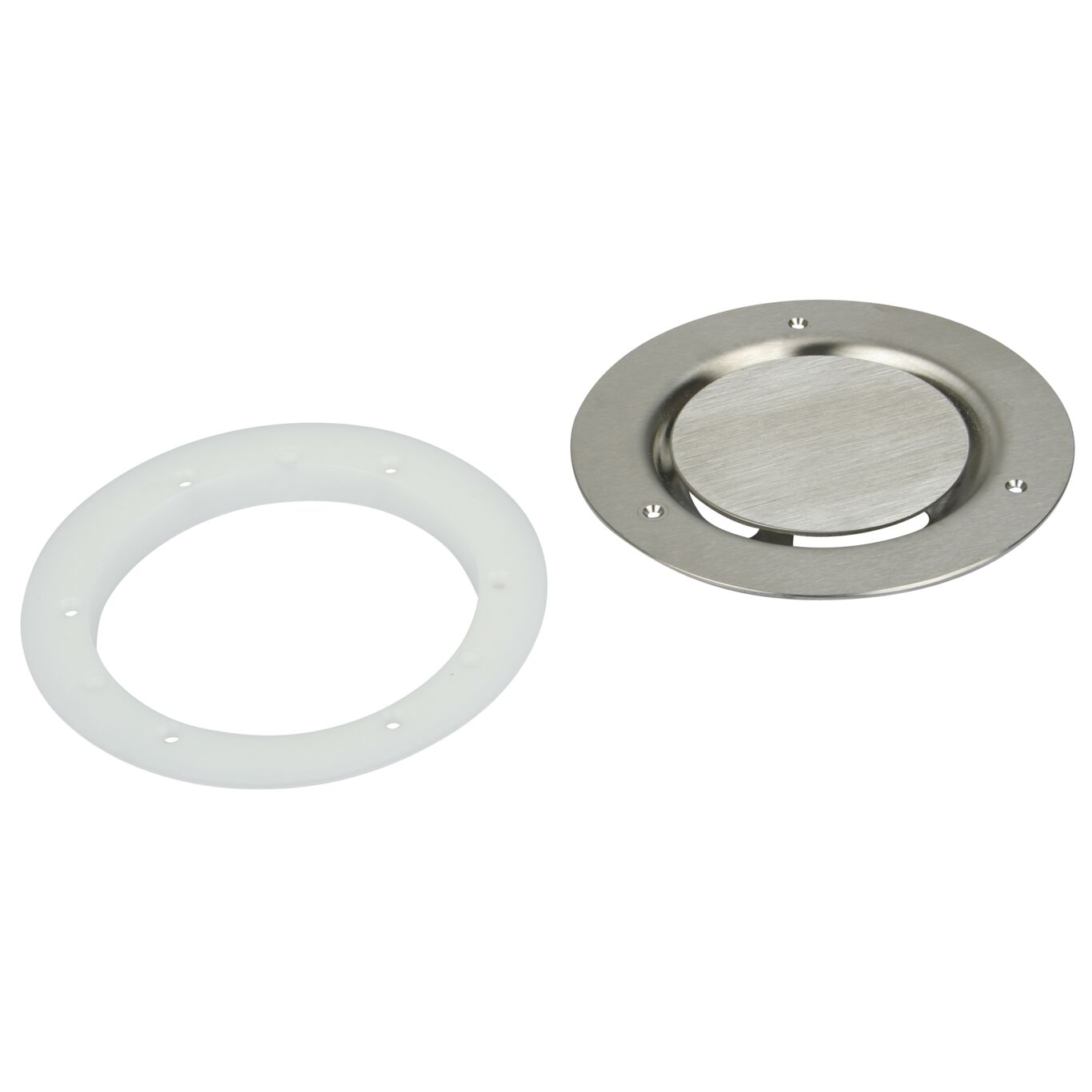

MOUNTING SET CIRCLE COPENHAGEN
-With screw lock and clamping ring
-Floor: vinyl
-Grating: Ø155mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 15 |
| Number of Screws | 3 |
| Shape | Round |
| Size (mm) | Ø155 |
| Weight (kg) | 0,49 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
