REMOVABLE TWO-PART WATER TRAP - (502.050.110)
×
![]()
Part Of the Series: Water trap-110
Type no.: 502.050.110
EAN no.: 5705499124064
VVS no.: 153416516
RSK no.: 7122025
NRF no.: 3394898
LVI no.: 3303887

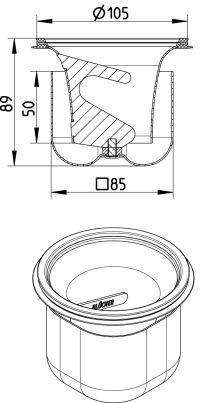

REMOVABLE TWO-PART WATER TRAP
-Water seal height = 50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 1.7 |
| Minimum Height (mm) | 89 |
| Outlet Diameter (mm) | 108 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0,36 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
