REMOVABLE WATER TRAP WITH ODOUR STOP - (503.001.110)
×
![]()
Part Of the Series: Water trap-110
Type no.: 503.001.110
EAN no.: 5705499134728
VVS no.: 153415546
RSK no.: 7120299
NRF no.: 3394665
LVI no.: 3304911

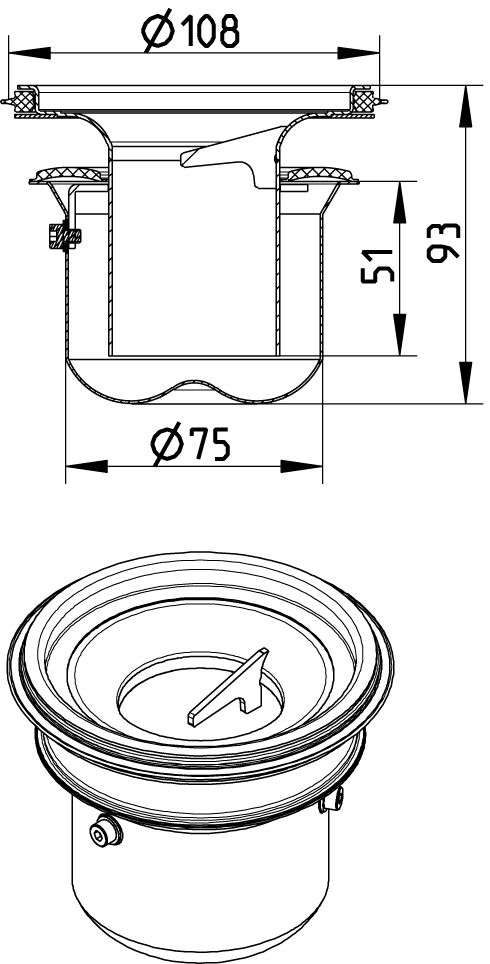

REMOVABLE WATER TRAP WITH ODOUR STOP
-Water seal height = 51mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 1.3 |
| Minimum Height (mm) | 93 |
| Outlet Diameter (mm) | 108 |
| Water Seal Height (mm) | 51 |
| Weight (kg) | 0,37 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
