REMOVABLE TWO-PART WATER TRAP - (562.103.000 S)
×
![]()
Part Of the Series: Water trap-250
Type no.: 562.103.000 S
EAN no.: 5705499138733
VVS no.: 153019590
RSK no.: 7129550
NRF no.: 3396306
LVI no.: 3305830

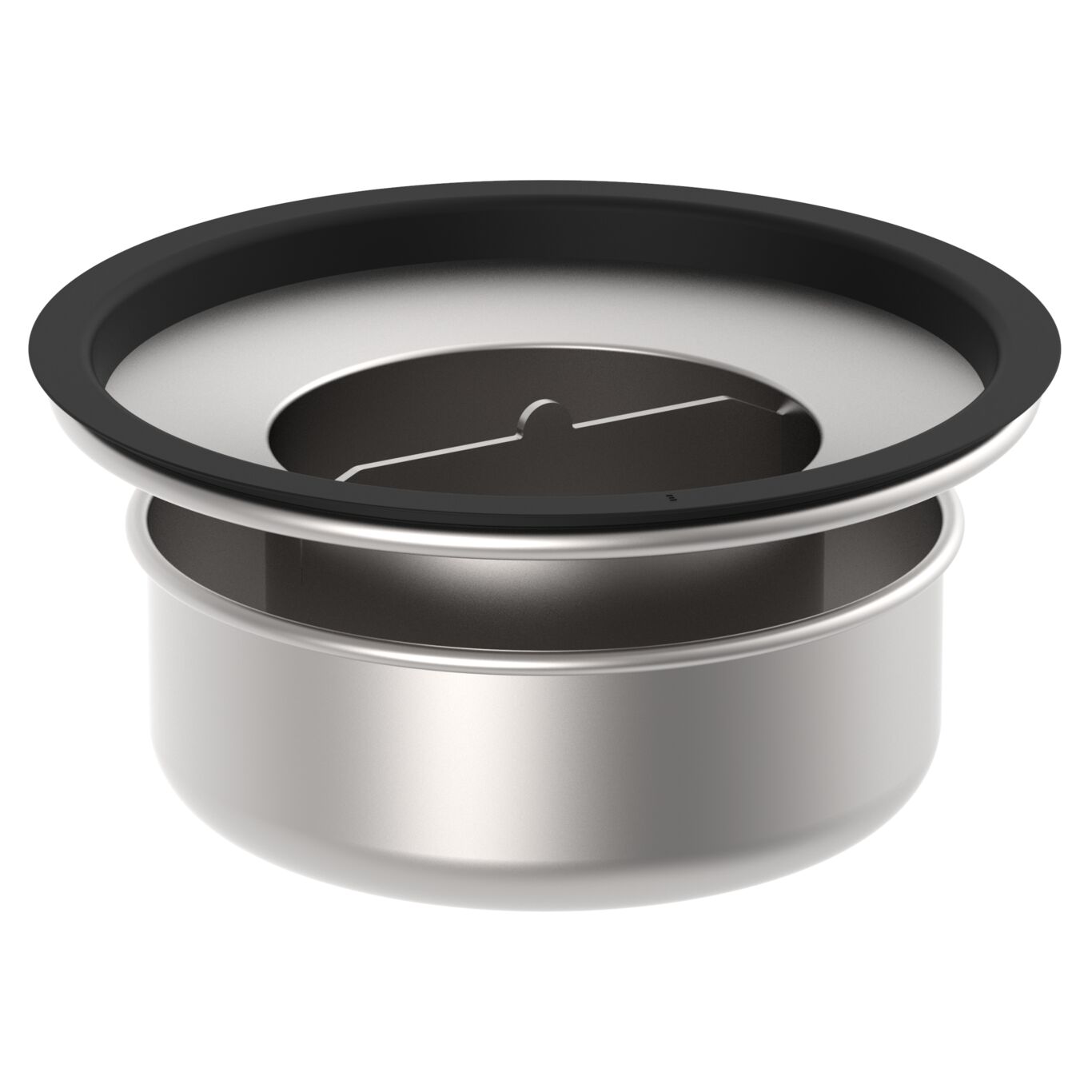

REMOVABLE TWO-PART WATER TRAP

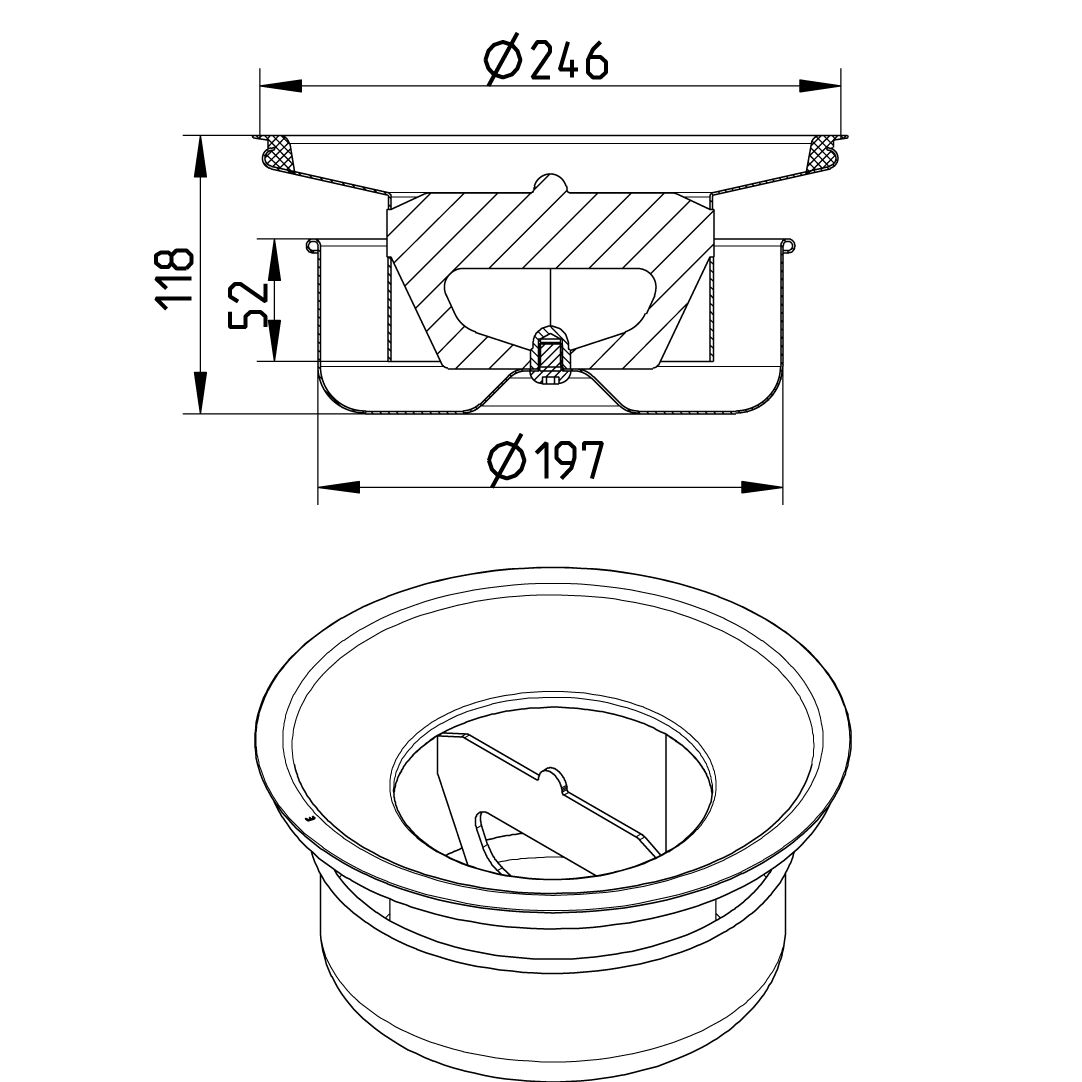

-Water seal height = 52mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 7.8 |
| Minimum Flow (l/s) | 5.6 |
| Minimum Height (mm) | 118 |
| Outlet Diameter (mm) | 246 |
| Water Seal Height (mm) | 52 |
| Weight (kg) | 2,20 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
