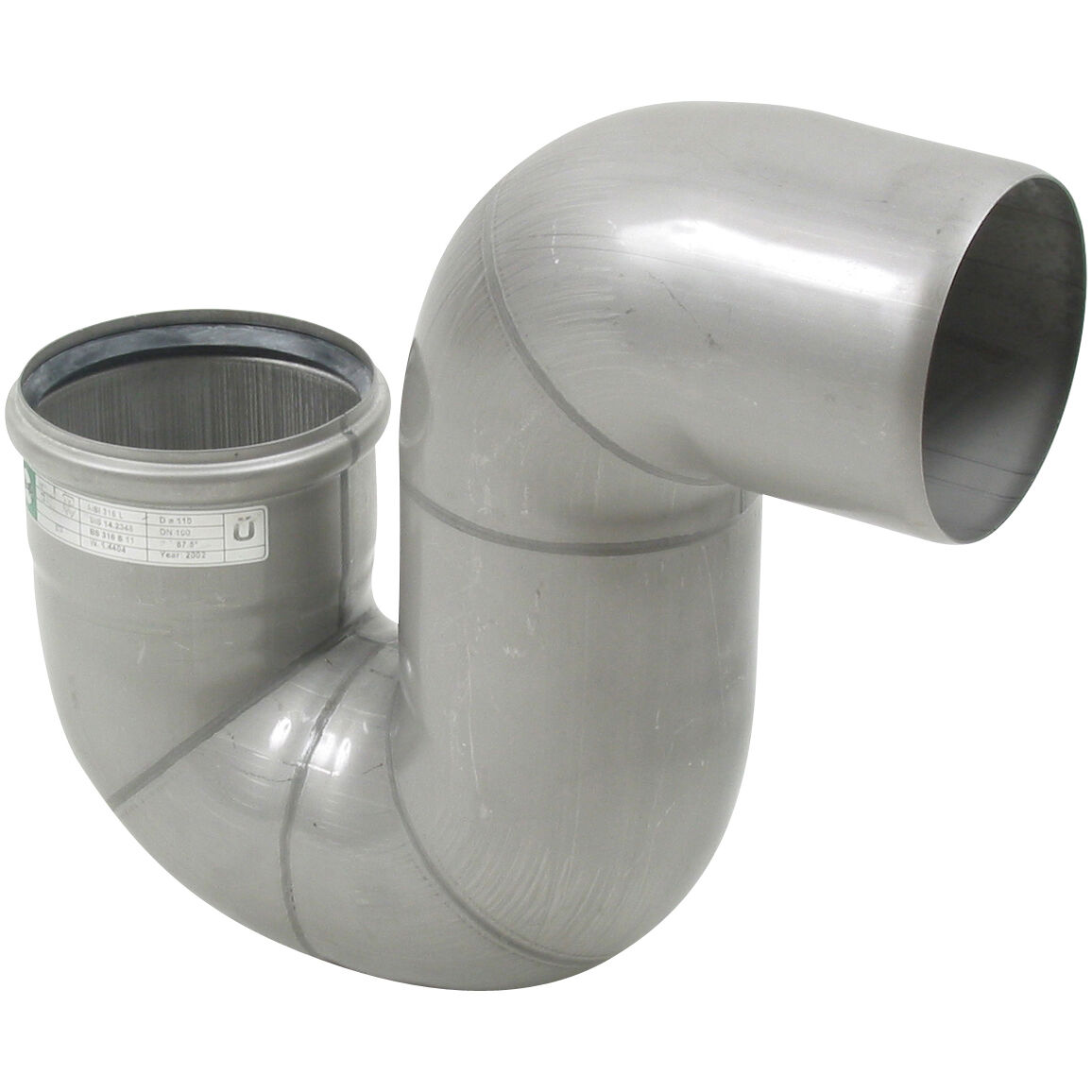

P-TRAP 87.5° - (525.090.110 S)
Part Of the Series: Water trap-p
Type no.: 525.090.110 S
EAN no.: 5705499101485
VVS no.: 160381410
RSK no.: 1550347
NRF no.: 3395043
LVI no.: 3304021

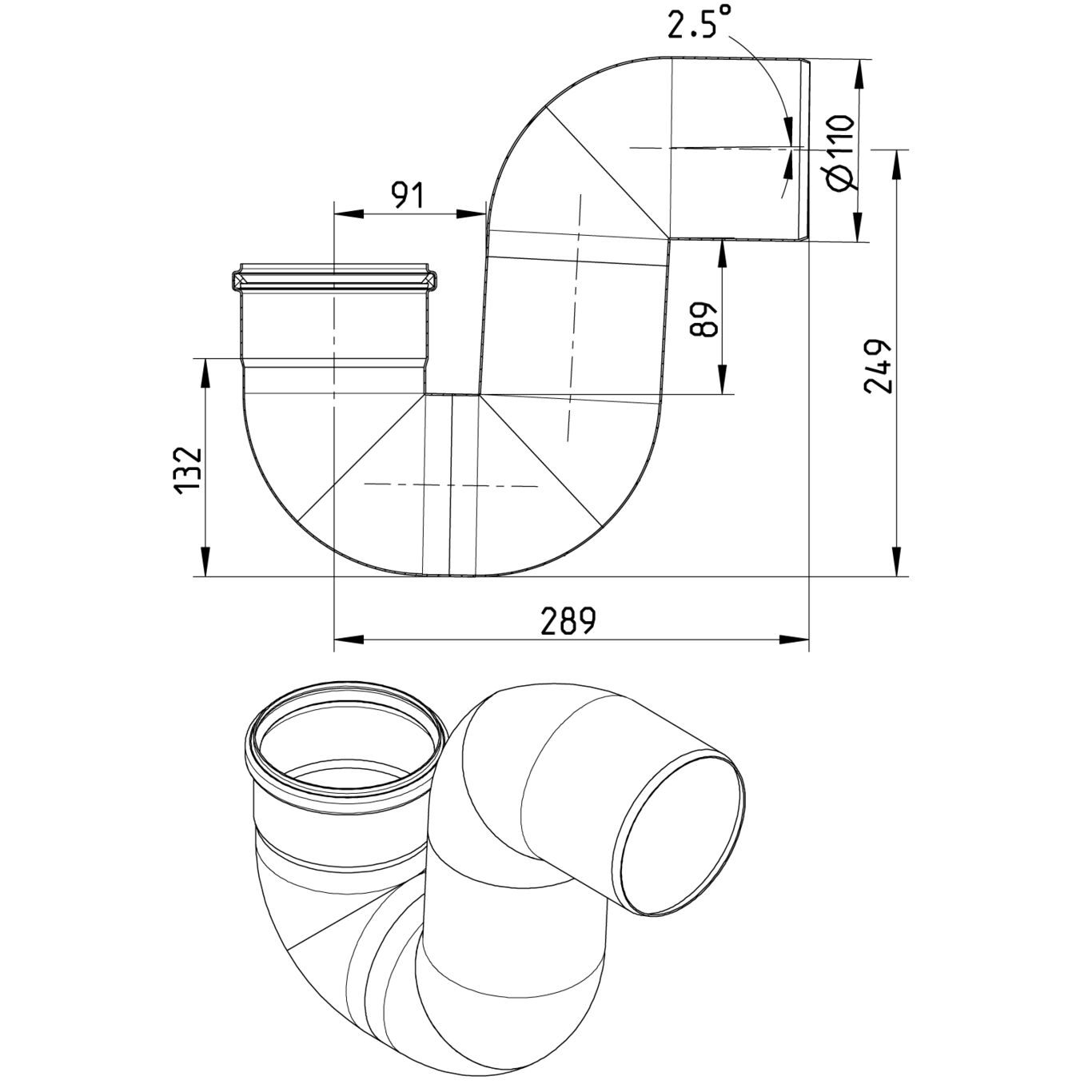

P-TRAP 87.5°
-Diameter: Ø110mm
-Water seal height = 89mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 132 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Max Flow (l/s) | 10.4 |
Minimum Flow (l/s) | 3.4 |
Outlet Diameter (mm) | 110 |
Water Seal Height (mm) | 89 |
Weight (kg) | 1,49 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24 US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Europe NO - 0692-22 EuroPipe DK VA 2.41/19631 P-Vandlås dim 50, 75, 110, 125, 160mm HACCP Food Safety Programme - Australasia Bureau Veritas - 03456-H0, ShipDrains Lloyds Register LR22419510TA DNV - TAP0000023-rev4, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM ABS - LD1716353-PDA
