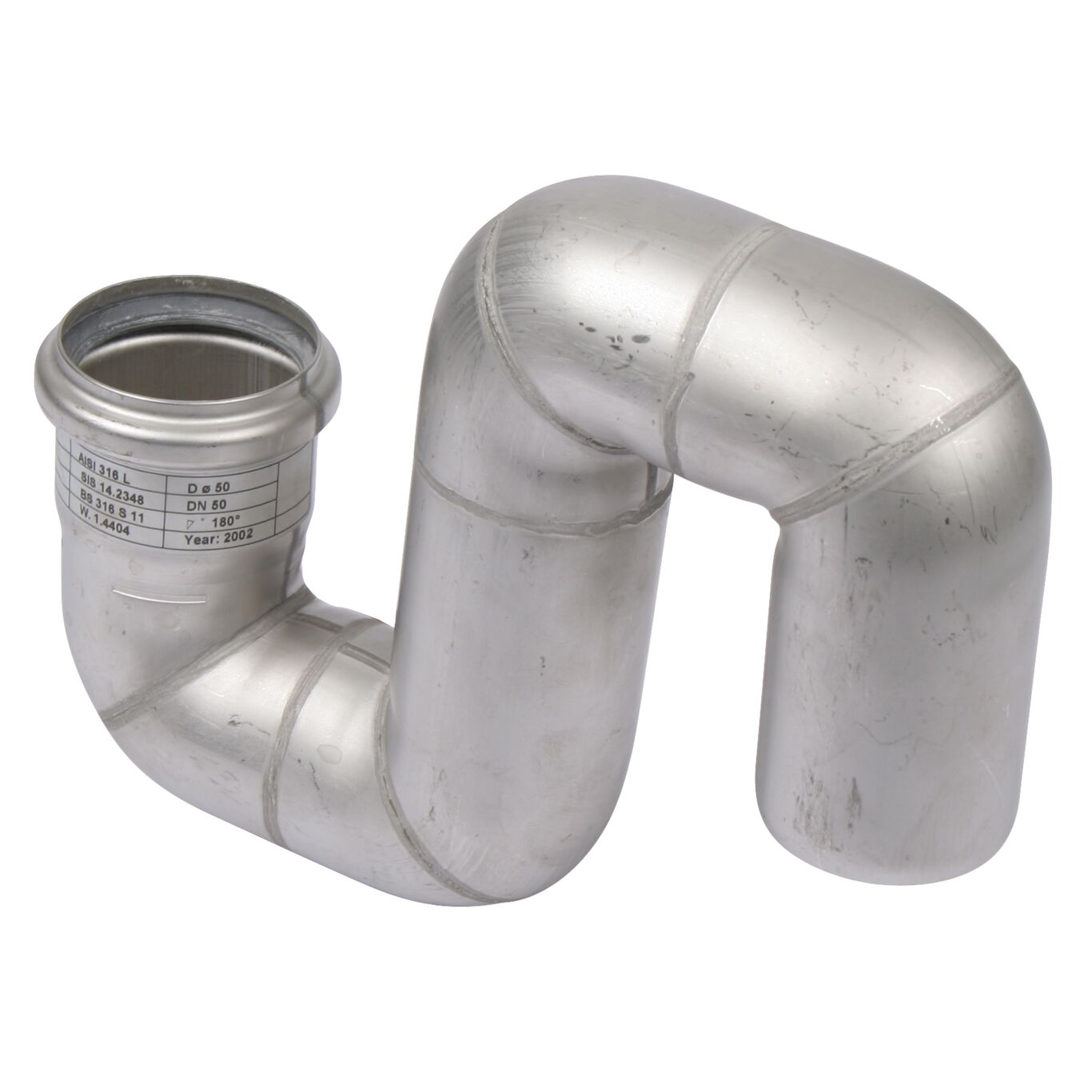

S-TRAP 180° - (525.180.050 S)
×
![]()
Part Of the Series: Water trap-S
Type no.: 525.180.050 S
EAN no.: 5705499114096
NRF no.: 3395047

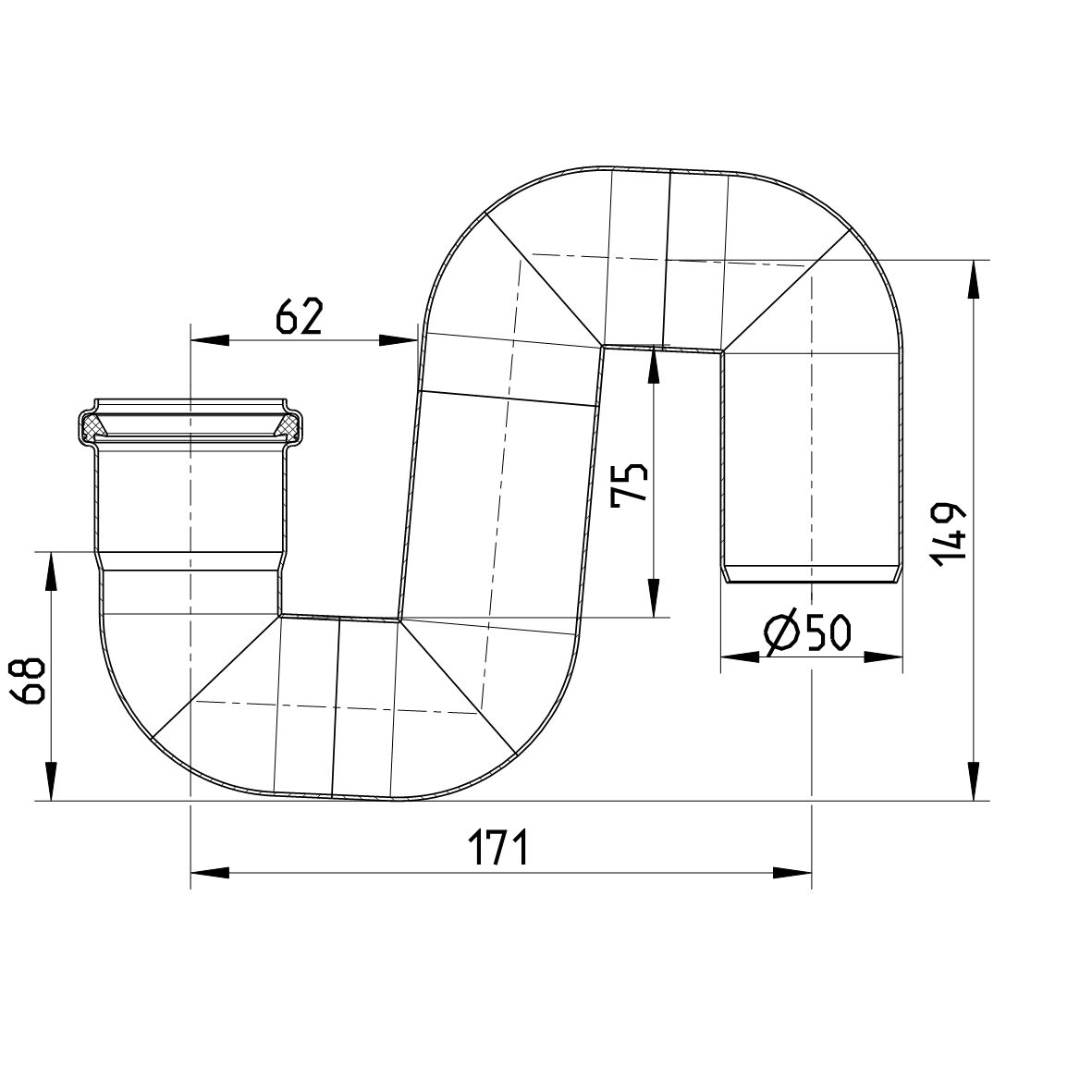

S-TRAP 180°
-Diameter: Ø50MM
-Water seal height = 74mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 180 |
| Length (mm) | 67 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 50 |
| Water Seal Height (mm) | 74 |
| Weight (kg) | 0,54 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
