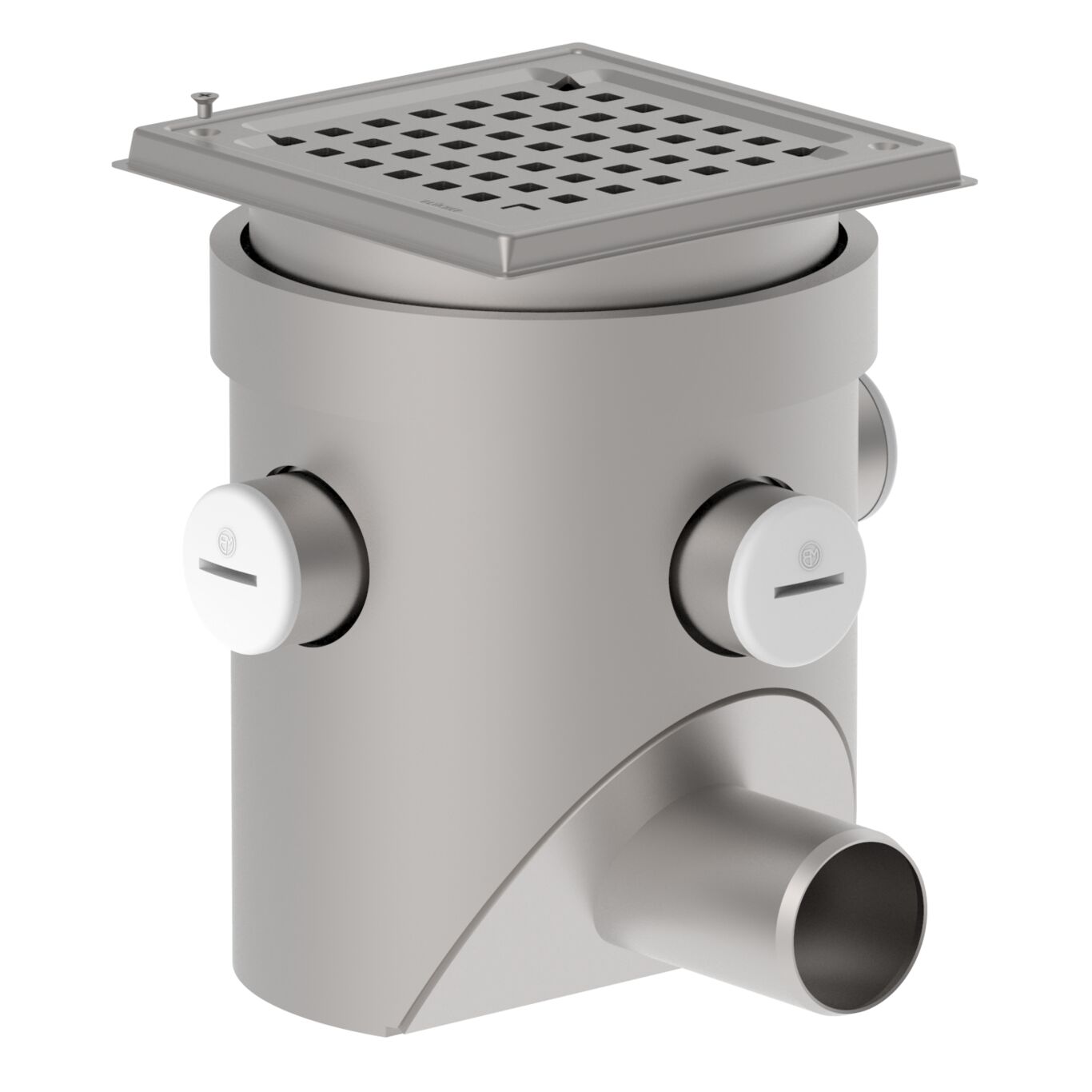

VACUUM DRAIN - (480.150.050)
×
![]()
Part Of the Series: Marine vacuum drain-155
Type no.: 480.150.050
EAN no.: 5705499116199

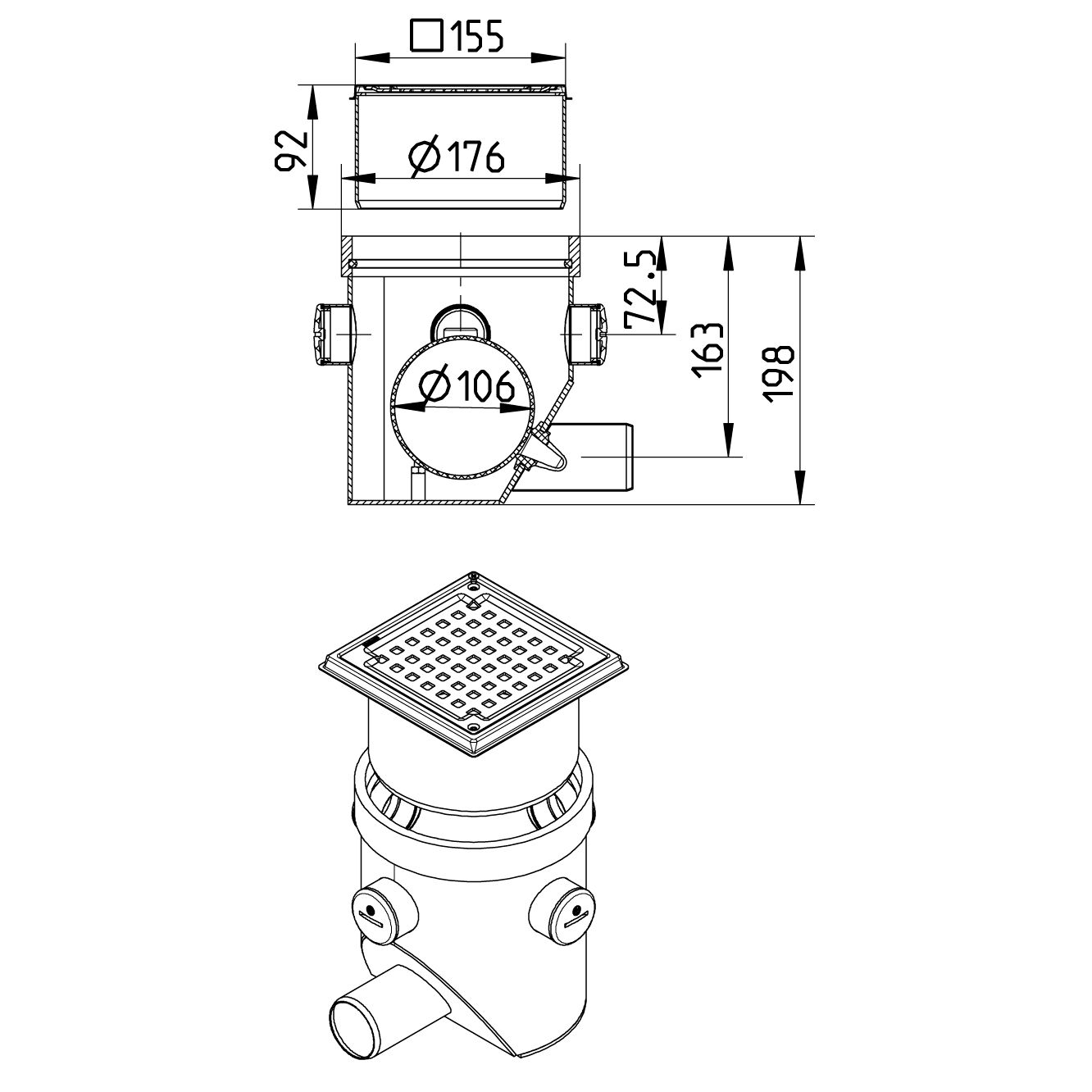

Size: 155x155
VACUUM DRAIN
-With side inlets
-Deck: steel
-Frame: 155x155mm
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Deck | Steel |
| Floor | Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 257 |
| Minimum Height (mm) | 217 |
| Number of Inlets | 4 (Ø1¼") |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Shape | Square |
| Size (mm) | 155x155 |
| Weight (kg) | 6,07 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
