LOWER PART MARINE - (470.200.075)
×
![]()
Part Of the Series: Marine-lower part-welding flange-steel
Type no.: 470.200.075
EAN no.: 5705499106213
NRF no.: 3396353

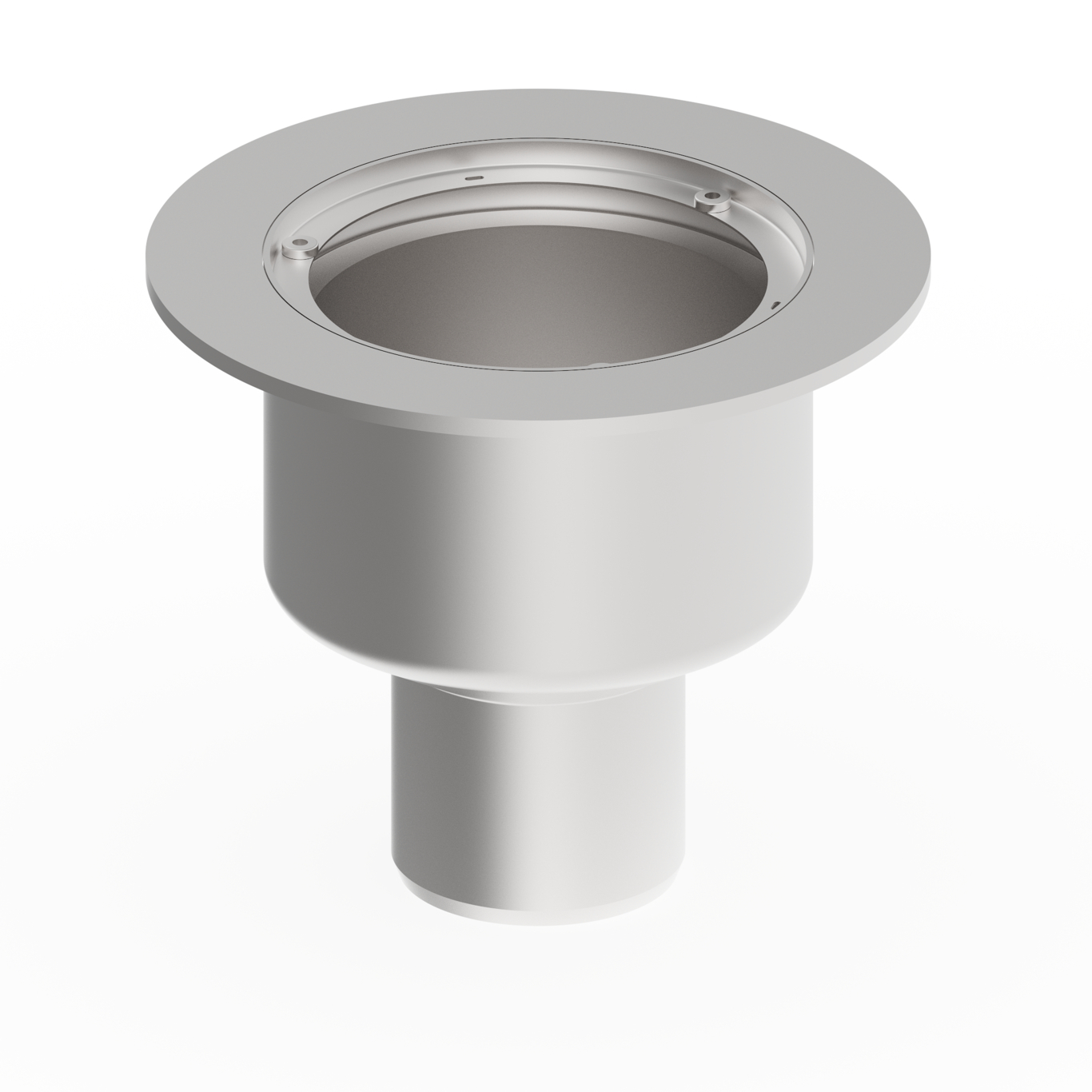

LOWER PART MARINE
-With welding flange
-Deck: steel

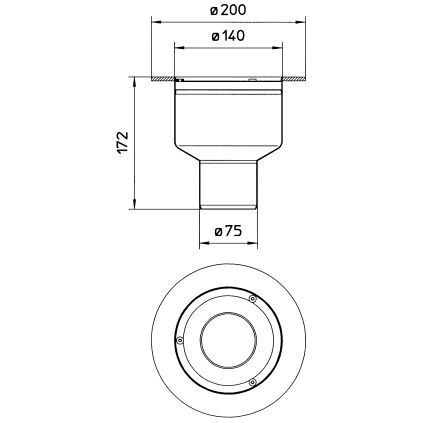

-Flange: Ø200mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 172 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Weight (kg) | 1,40 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB00000MA, Rev3, Marine Drains Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA_02 KR - Type Approval CPH42135-PE001 Bureau Veritas - 03456-H0, ShipDrains ABS - 23-2329630-PDA Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM
