LOWER PART MARINE - (475.200.075)
×
![]()
Part Of the Series: Marine-lower part-welding flange-steel
Type no.: 475.200.075
EAN no.: 5705499106336
NRF no.: 3396355

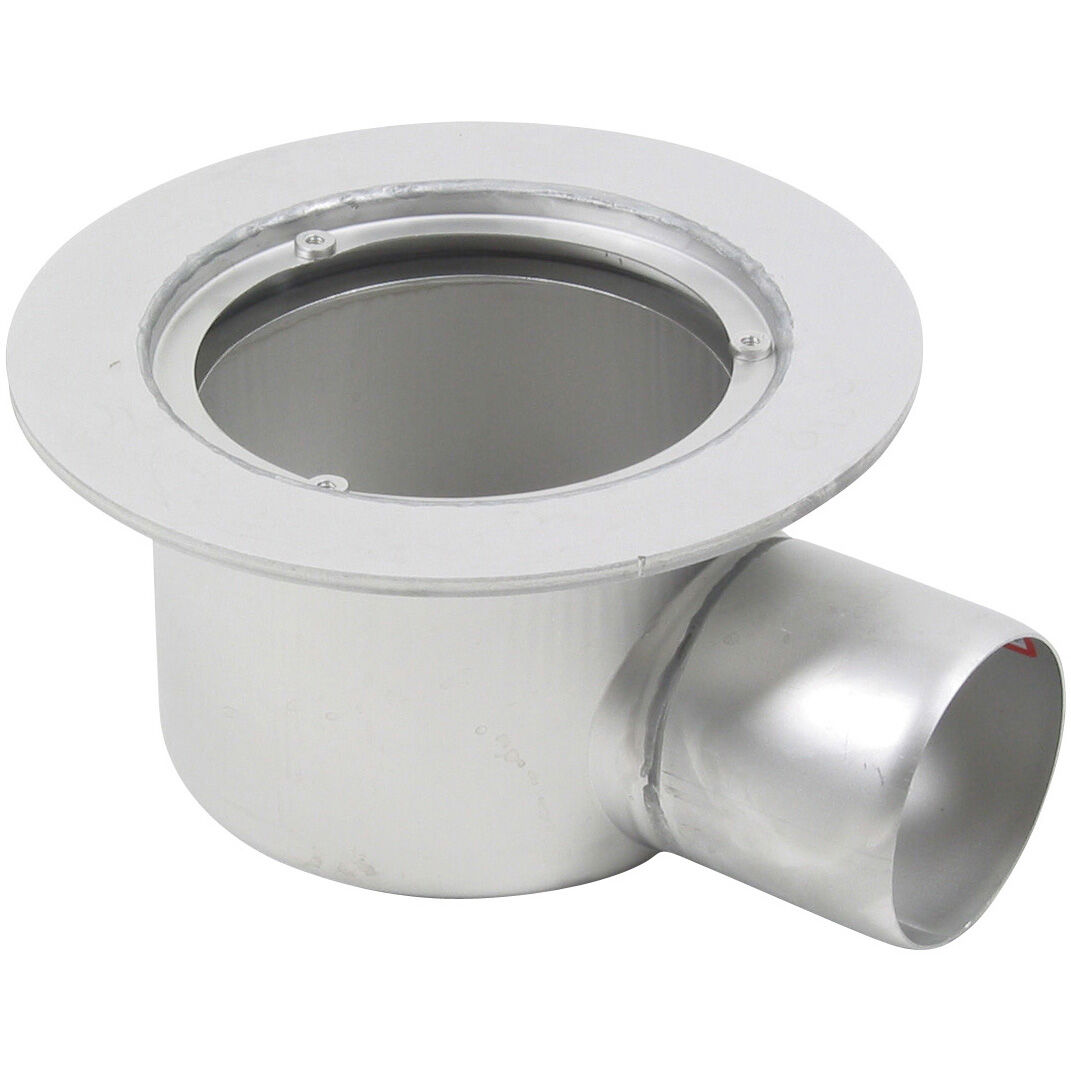

LOWER PART MARINE
-With welding flange
-Deck: steel
-Flange: Ø200mm
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 106 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Weight (kg) | 1,35 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB00000MA, Rev3, Marine Drains Achilles Certificate - 46702-22 Bureau Veritas - 03456-H0, ShipDrains Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA_02
