LOWER PART HORISONTAL - (475.000.076 S)
×
![]()
Part Of the Series: Marine-lower part-welding sleeve-steel
Type no.: 475.000.076 S
EAN no.: 5705499140576

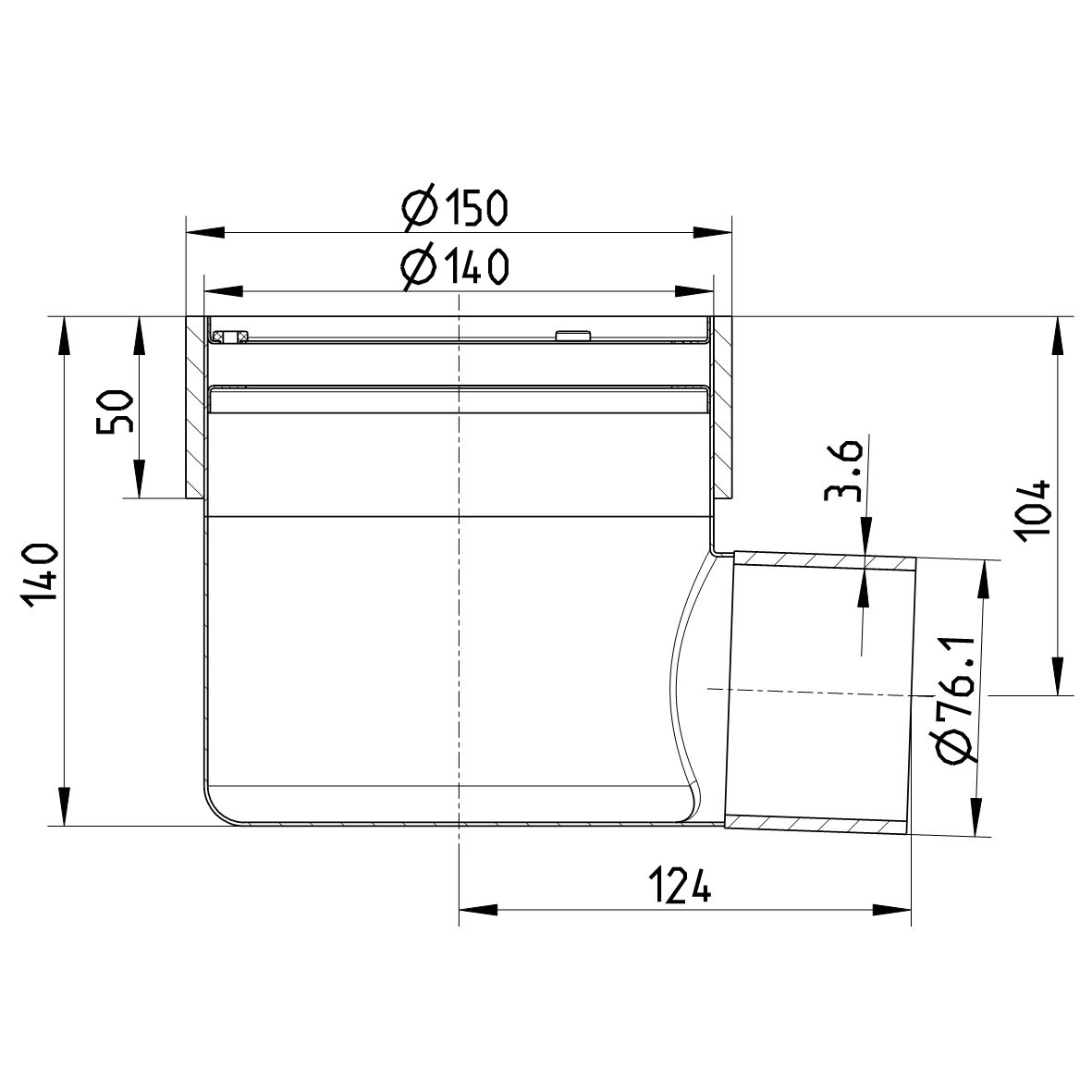

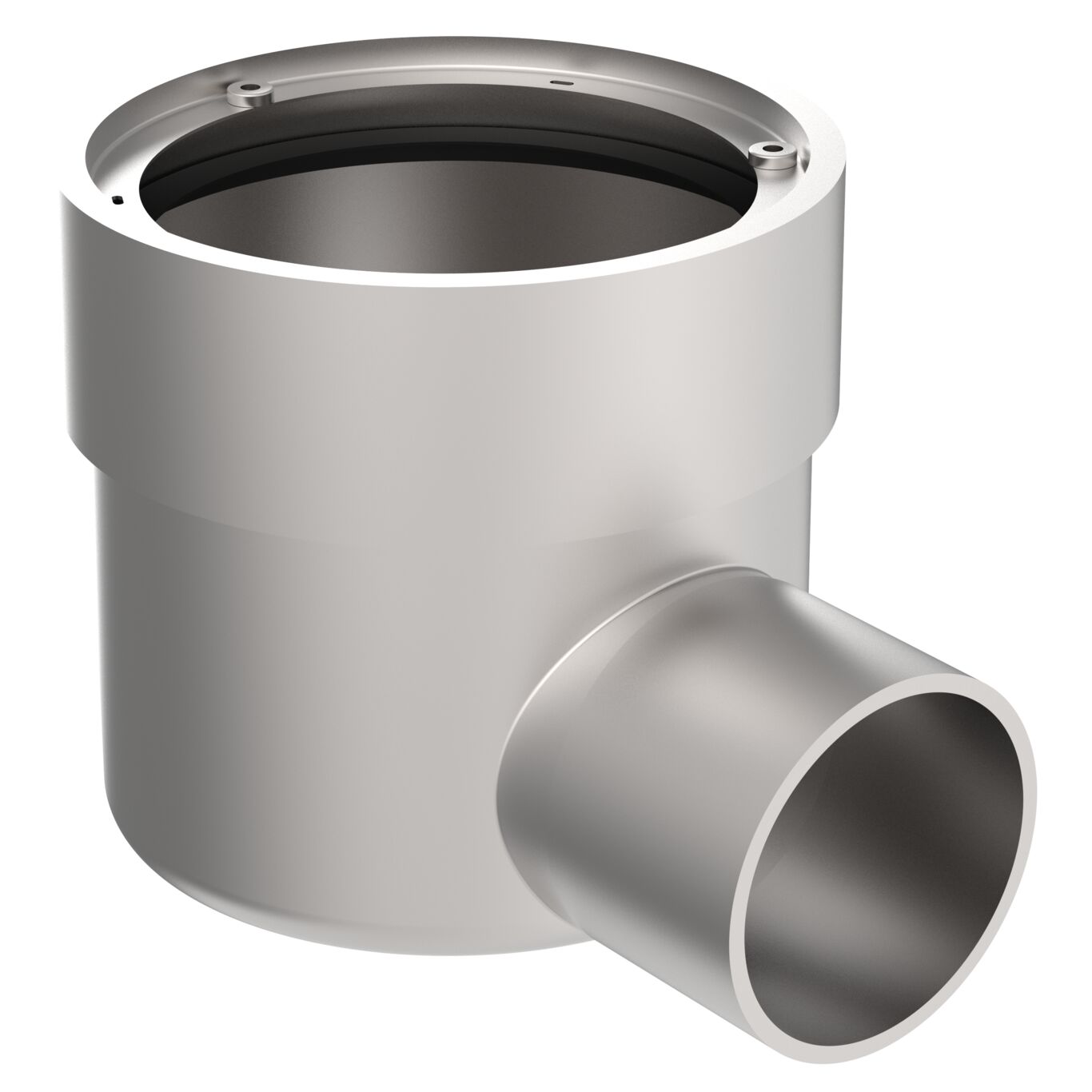

LOWER PART HORISONTAL
- With welding sleeve
- Deck: Steel
- Outlet: Ø76,1 x 3,6m, horizontal
- Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 140 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 76.1 |
| Outlet Direction | Horizontal |
| Weight (kg) | 1,93 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
