LOWER PART HORISONTAL - (475.000.110 S)
×
![]()
Part Of the Series: Marine-lower part-welding sleeve-steel
Type no.: 475.000.110 S
EAN no.: 5705499140606

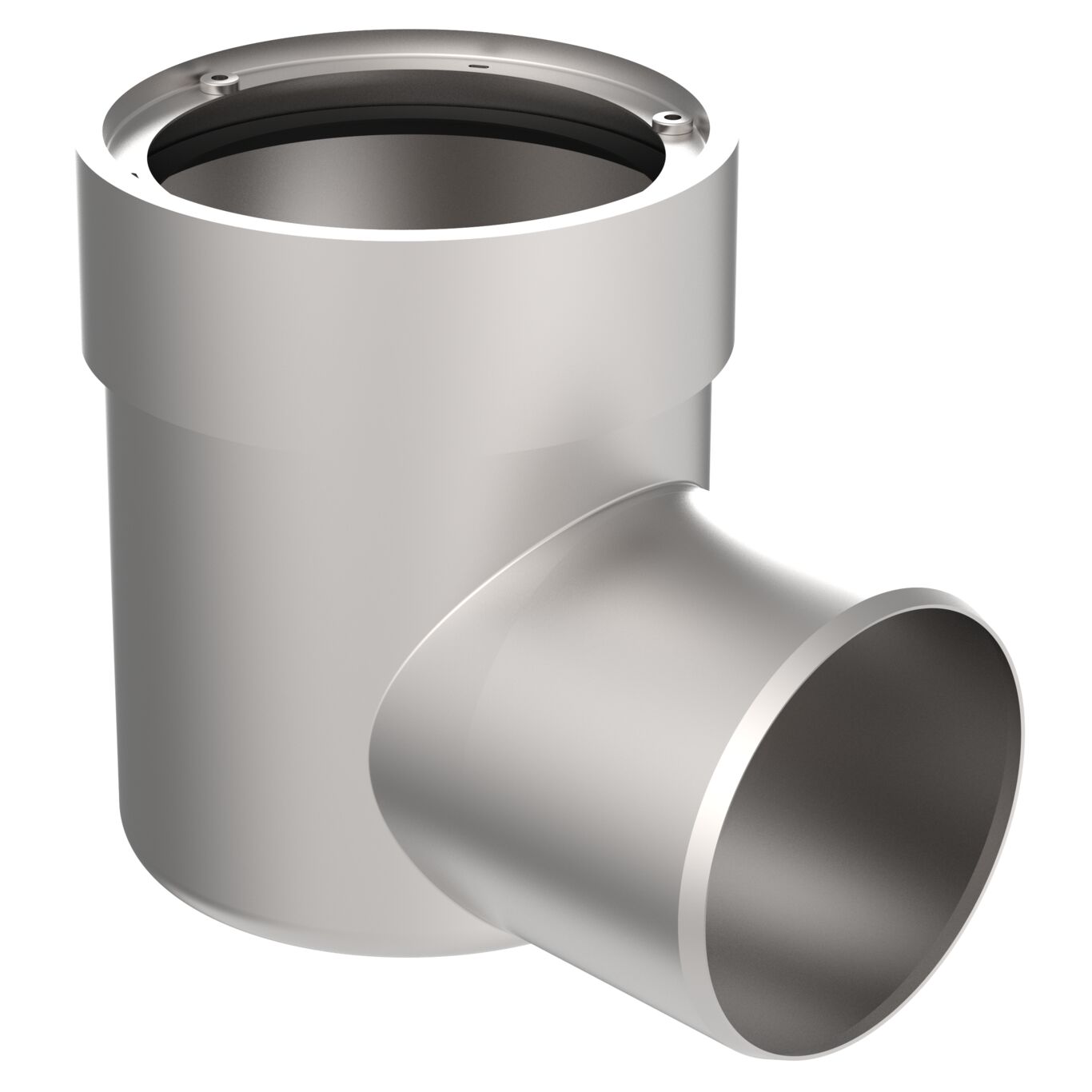

LOWER PART HORISONTAL
- With welding sleeve
- Deck: Steel
- Outlet: Ø110, horizontal
- Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |

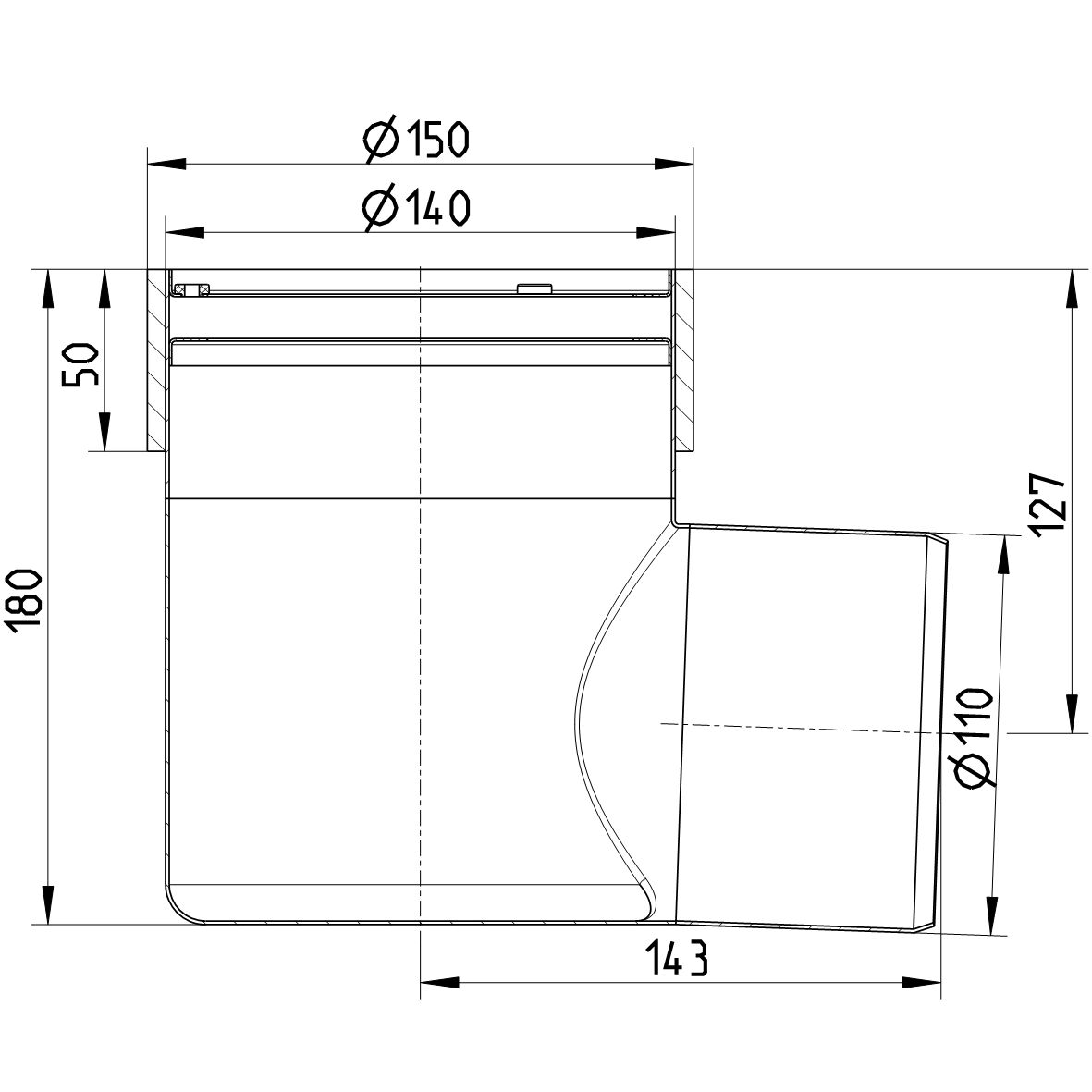

| Minimum Height (mm) | 180 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Horizontal |
| Weight (kg) | 1,91 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB00000MA, Rev3, Marine Drains ABS - 23-2329630-PDA MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas - 03456-H0, ShipDrains
