LOWER PART VERTICAL - (470.000.060 S)
×
![]()
Part Of the Series: Marine-lower part-welding sleeve-steel
Type no.: 470.000.060 S
EAN no.: 5705499140521

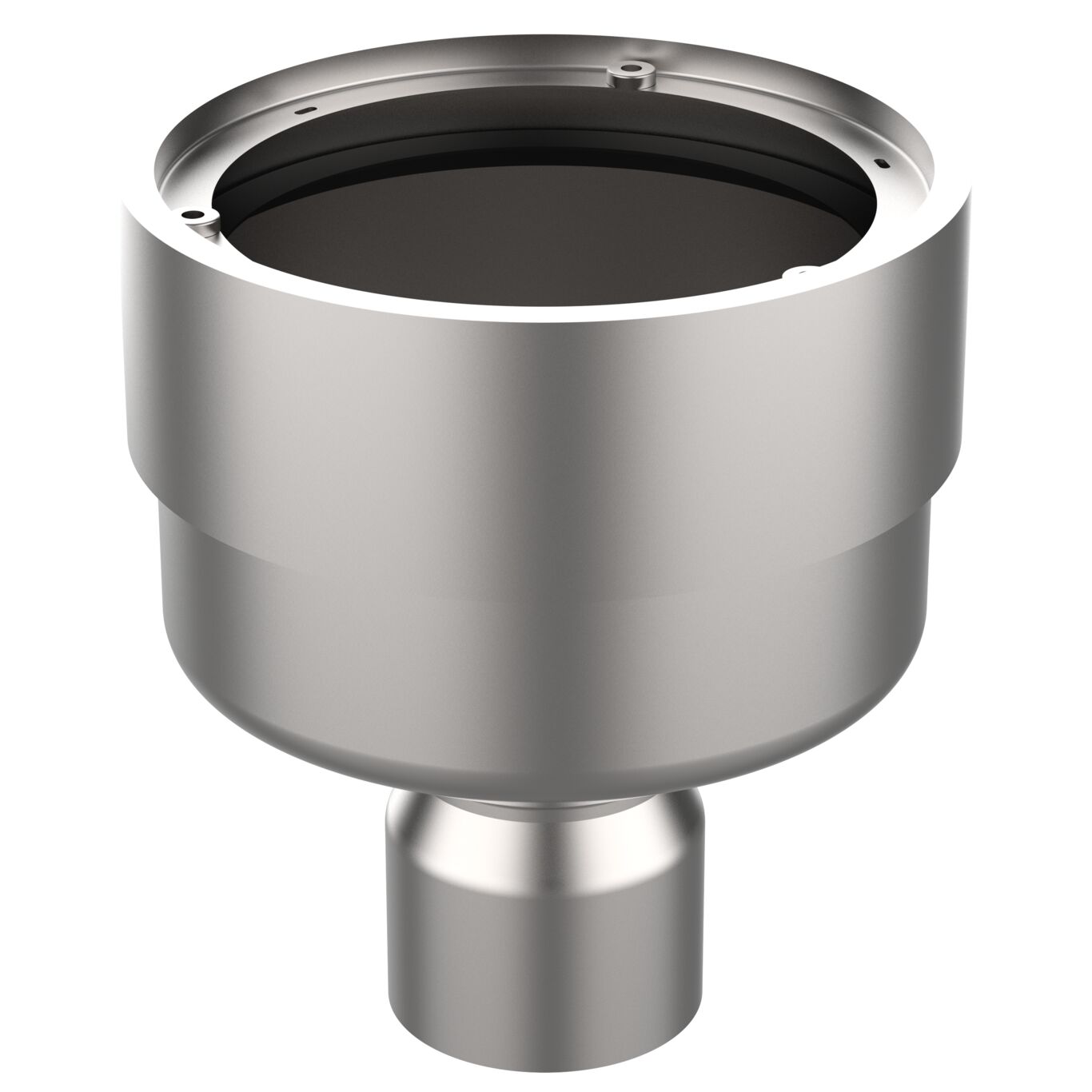

LOWER PART VERTICAL
- With welding sleeve
- Deck: Steel

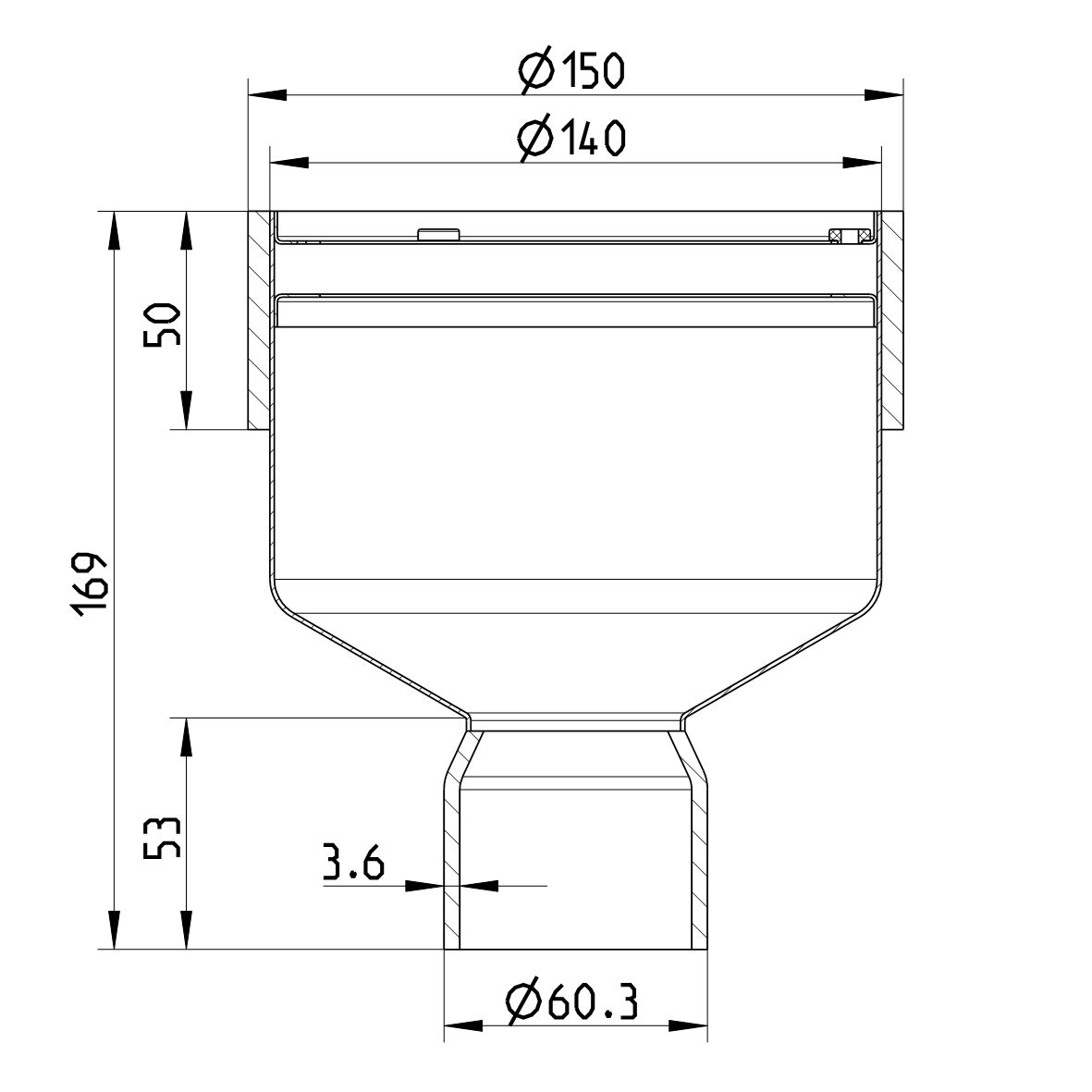

- Outlet: Ø60,3 x 3,6mm, vertical
- Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 169 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 60.3 |
| Outlet Direction | Vertical |
| Weight (kg) | 1,72 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
