PENETRATION WITH FLANGE - (868.100.040F)
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.100.040F
EAN no.: 5705499140804
PENETRATION WITH FLANGE
-With SI sealing
-Diameter: Ø40mm
-Deck: Steel
-Stainless steel: AISI304/EN1.4301

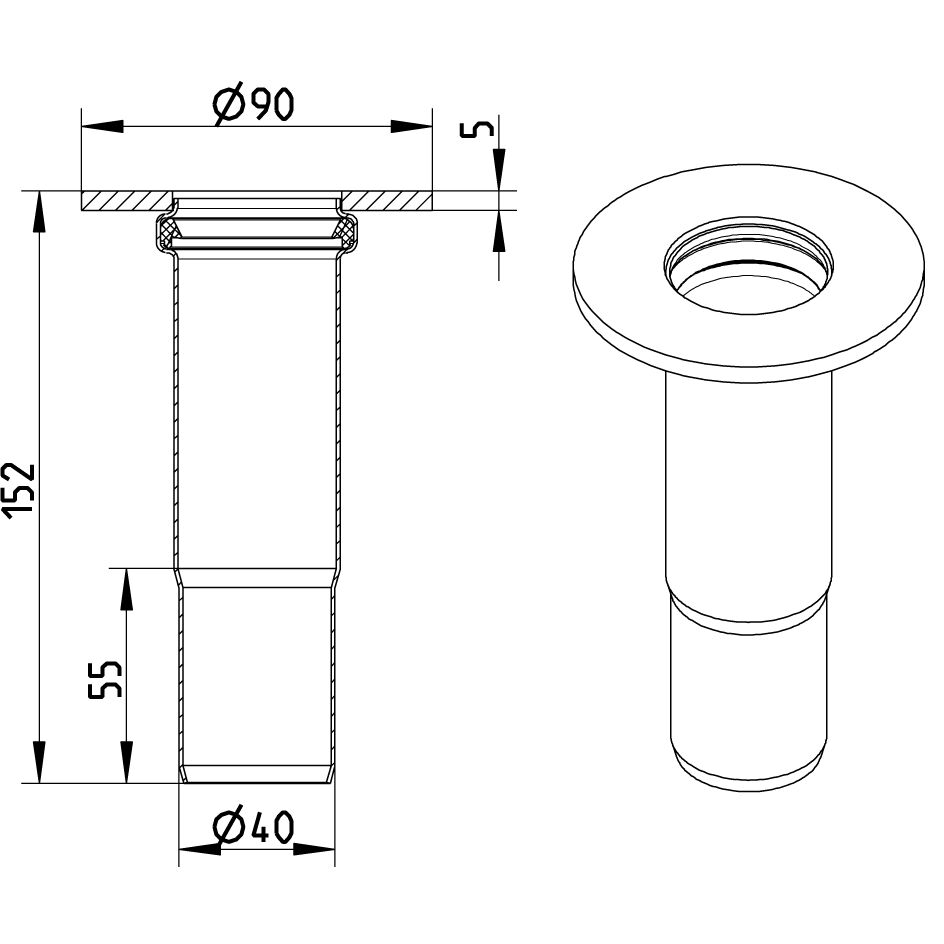

Product Specification | |
---|---|
Deck | Steel |
EC/MED (Bulkhead) | A0-A60 |
EC/MED (Deck) | A0-A60 |
Length (mm) | 55 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 152 |
Outlet Diameter (mm) | 40 |
Weight (kg) | 0,36 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB000016W, Rev7, Penetrations with SI sealing HACCP Food Safety Programme - Australasia HACCP Food Safety Programme - Europe ClassNK - Type868, TA21160E(N)_21FPA12DA KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA_02 Achilles Certificate - 46702-22 ABS - 23-2329630-PDA RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes
