PENETRATION WITH SLEEVE - (866.015.125.05F)
×
![]()
Part Of the Series: Penetration-welding sleeve-steel
Type no.: 866.015.125.05F
EAN no.: 5705499140705
PENETRATION WITH SLEEVE
- With SI sealing
- Diameter: Ø125mm
- Deck: Steel
- Stainless steel: AISI304/EN1.4301

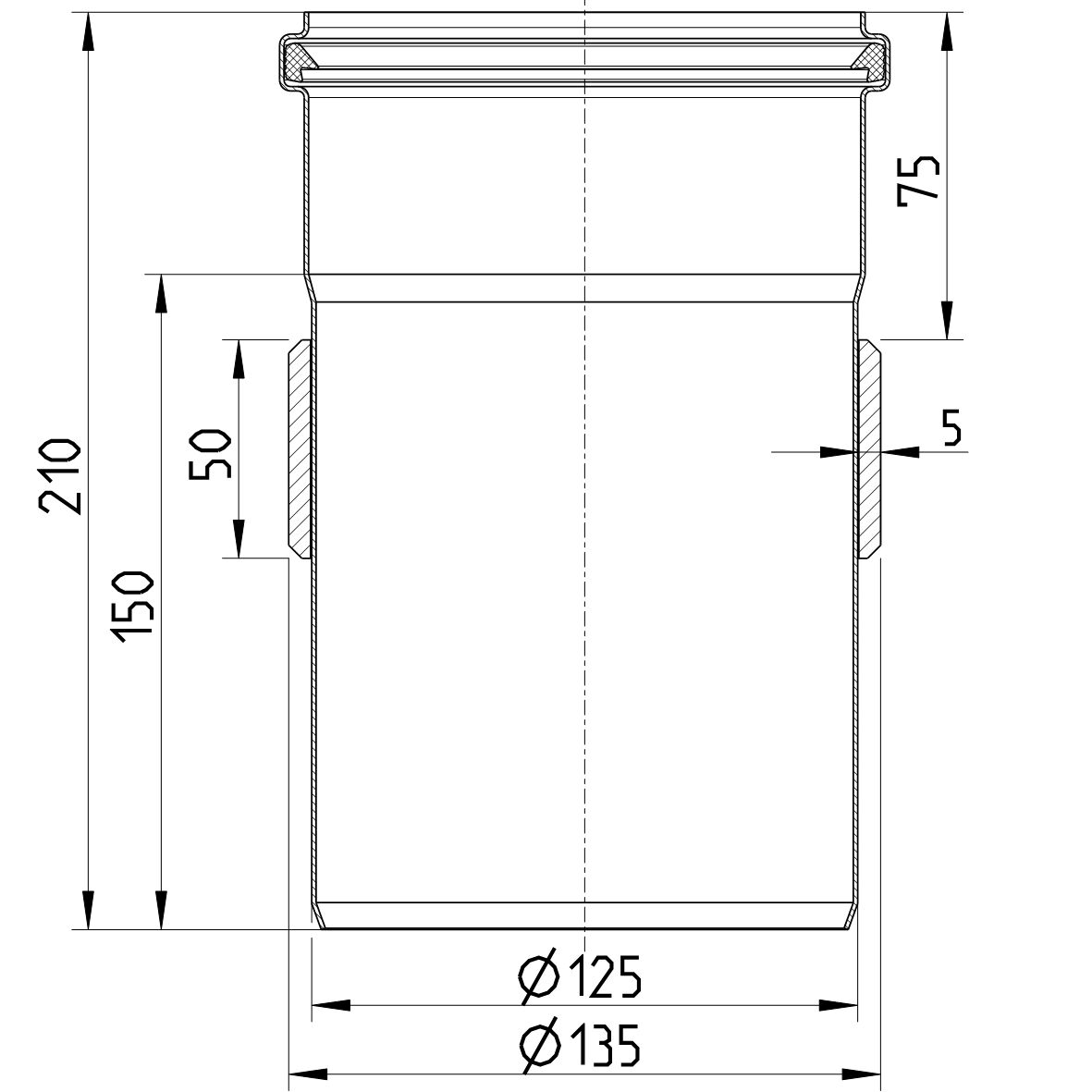

| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 150 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 125 |
| Weight (kg) | 1,52 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB000016W, Rev7, Penetrations with SI sealing
