PENETRATION WITH SLEEVE - (866.025.050.10FS)
×
![]()
Part Of the Series: Penetration-welding sleeve-steel
Type no.: 866.025.050.10FS
EAN no.: 5705499410099
NRF no.: 2172745

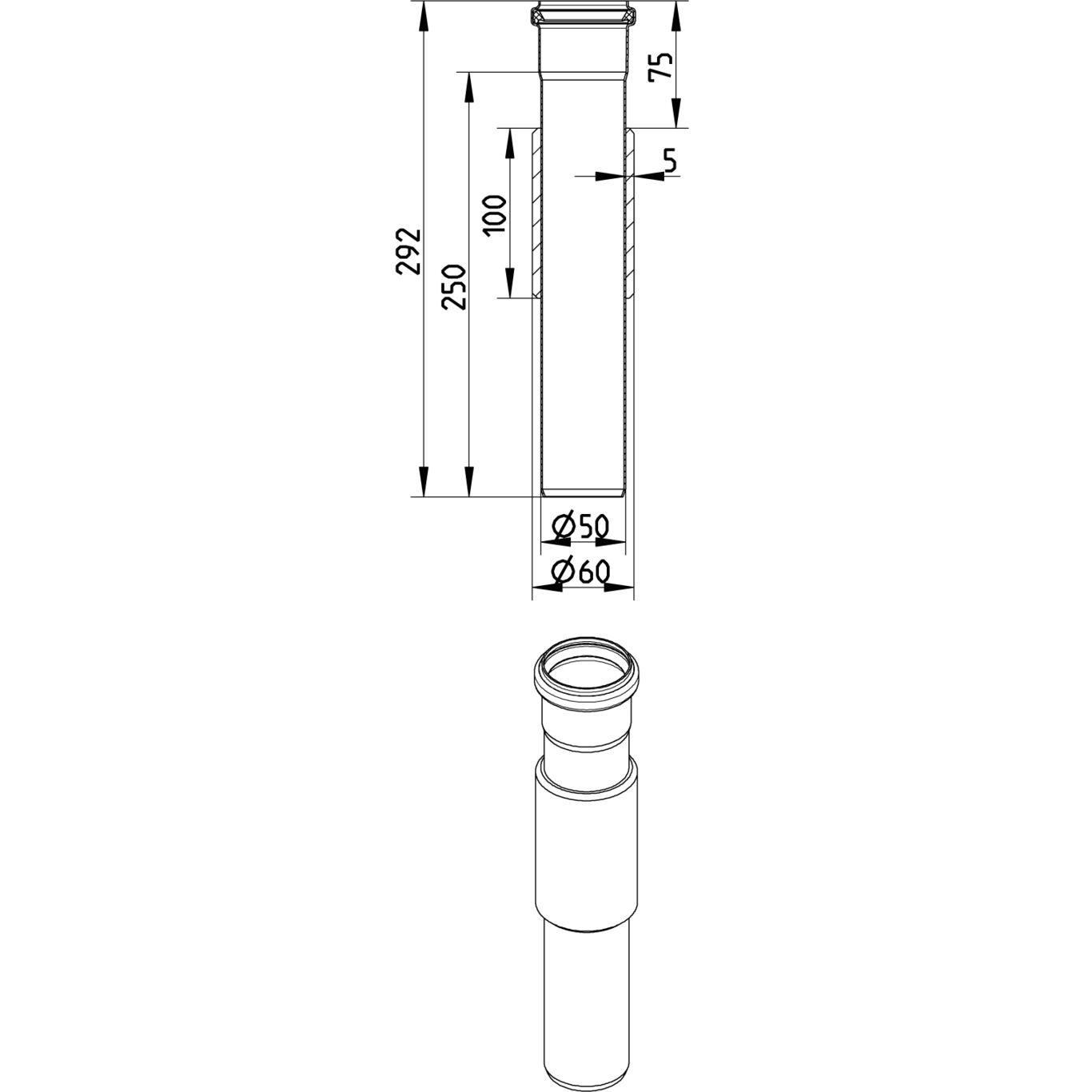

PENETRATION WITH SLEEVE
-Diameter: Ø50mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 250 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 1,00 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
DNV - MEDB000016W, Rev7, Penetrations with SI sealing
