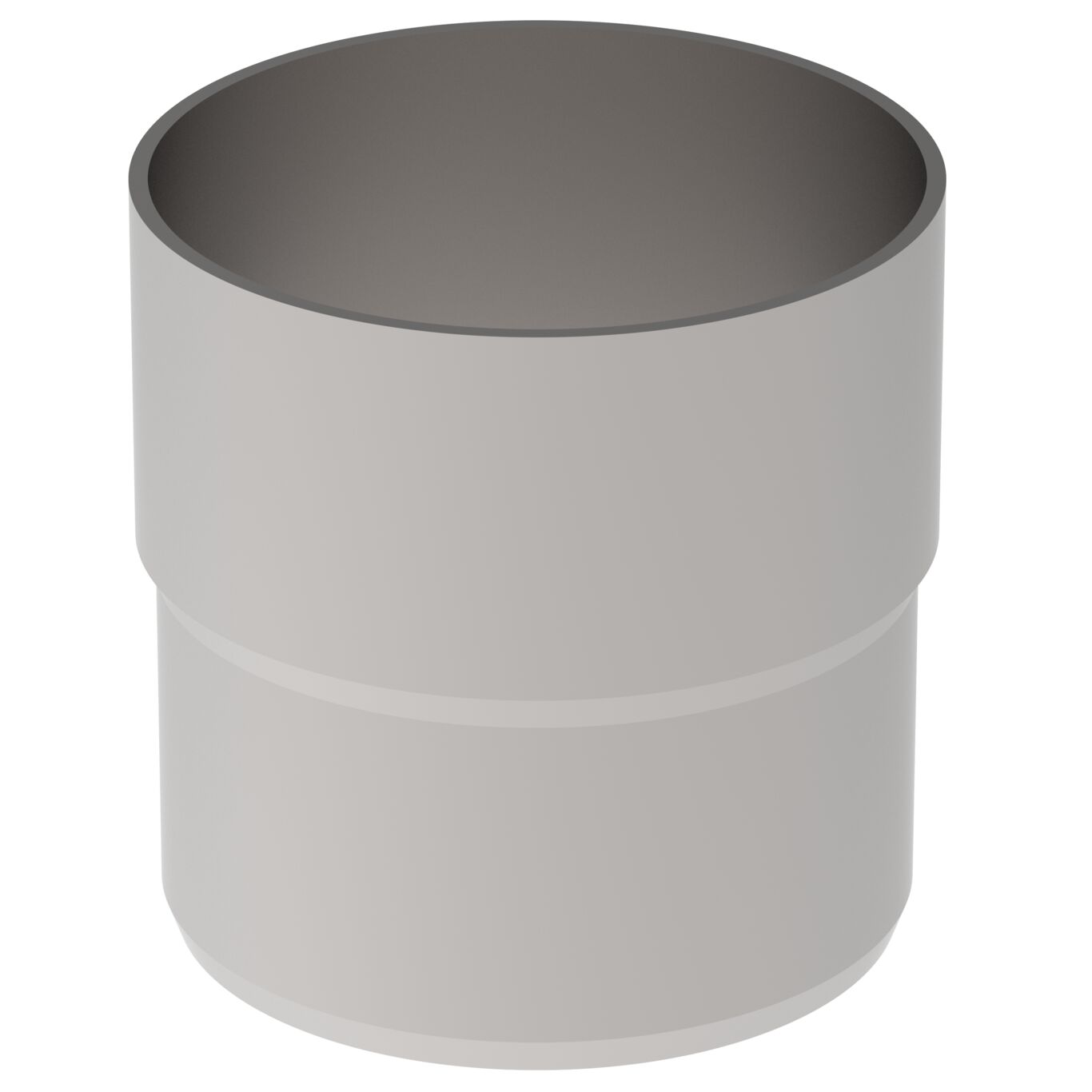

PENETRATION WITH SPIGOT - (872.210.200 S)
×
![]()
Part Of the Series: Transition pipe-welding sleeve-steel
Type no.: 872.210.200 S
EAN no.: 5705499139778

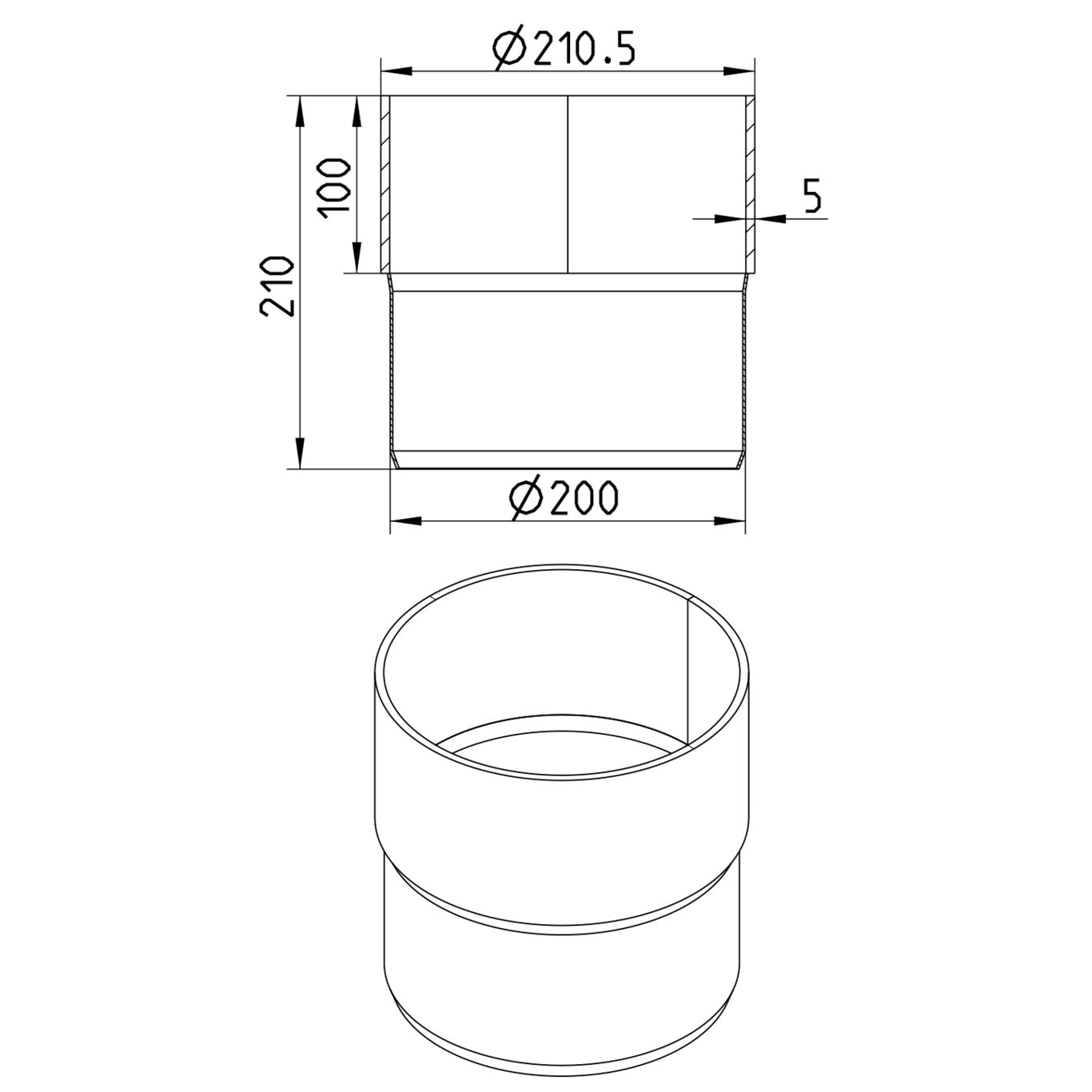

PENETRATION WITH SPIGOT
- Welding transition: Ø210.5mm
- Diameter: Ø200mm
- Deck: steel
- Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 210 |
| Outlet Diameter (mm) | 200 |
| Weight (kg) | 3,37 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
