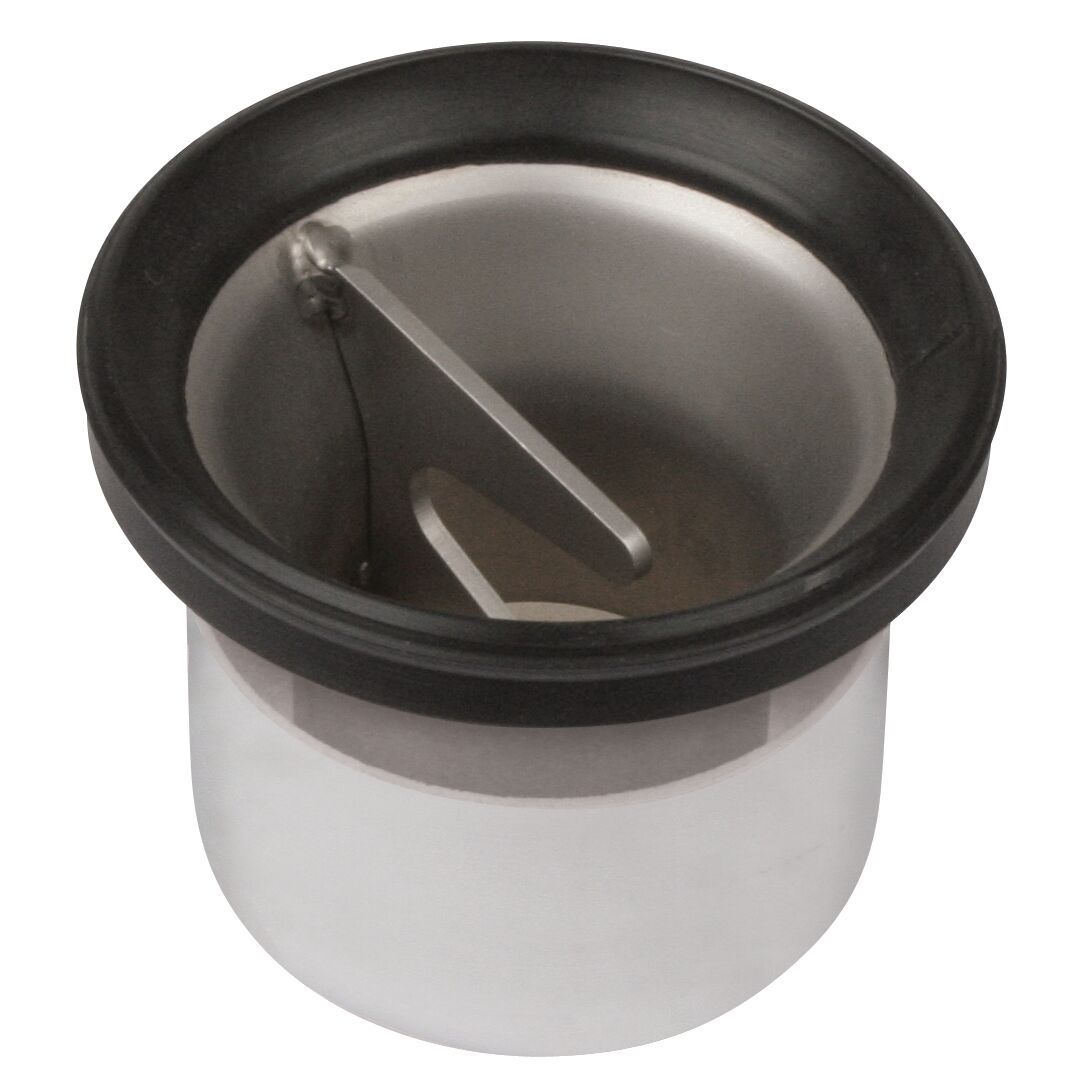

REMOVABLE WATER TRAP, LOW - (502.025.075 S)
×
![]()
Part Of the Series: Water trap-75
Type no.: 502.025.075 S
EAN no.: 5705499131833
REMOVABLE WATER TRAP, LOW
-Water seal height = 25mm
-Stainless steel: AISI316L/EN1.4404

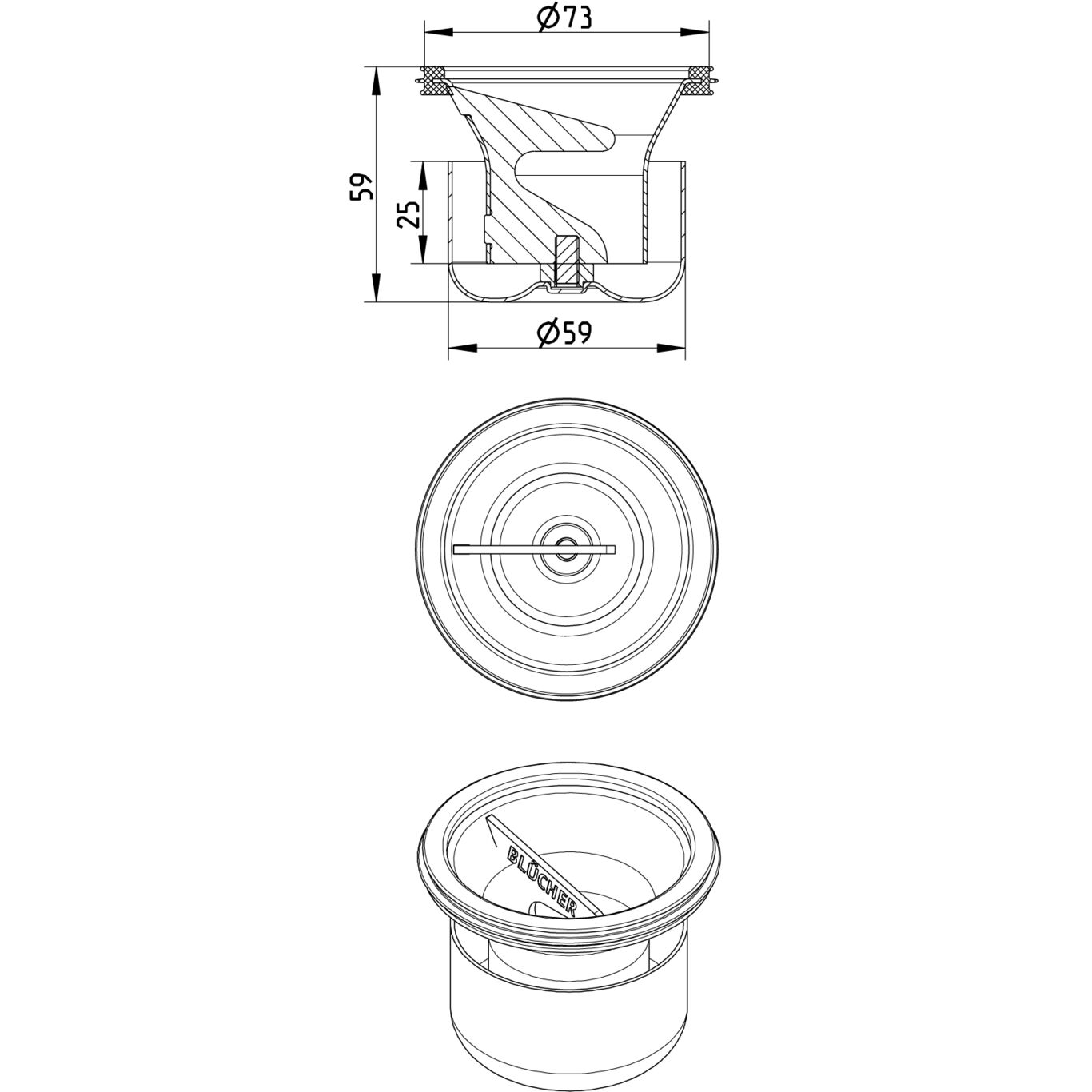

| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 0.4 |
| Minimum Height (mm) | 59 |
| Outlet Diameter (mm) | 73 |
| Water Seal Height (mm) | 25 |
| Weight (kg) | 0,15 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
