LOWER PART FOR ROOF DRAIN - (401.000.075)
Part Of the Series: Lower part-bitumen
Type no.: 401.000.075
EAN no.: 5705499141092

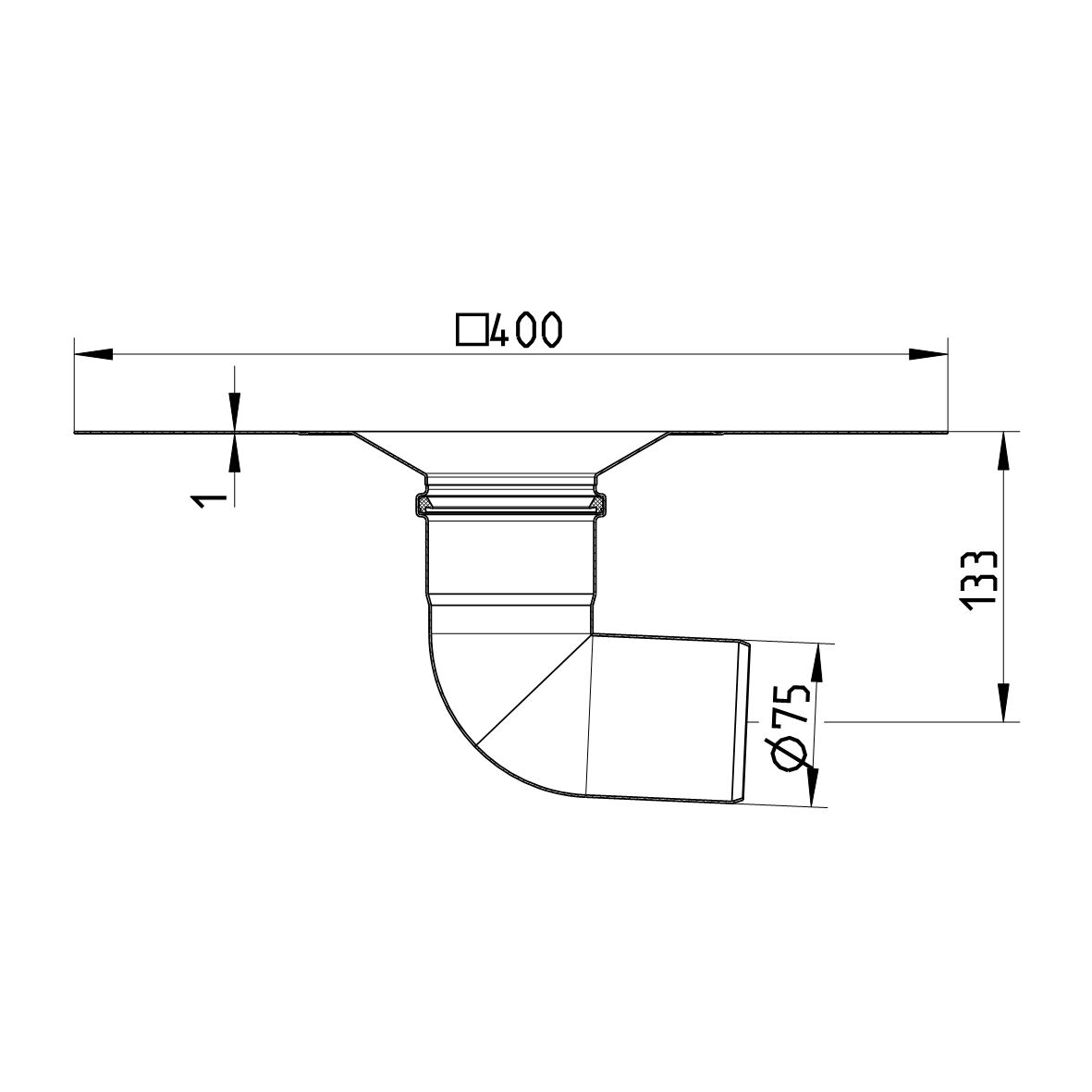

LOWER PART FOR ROOF DRAIN
-Roof: Bitumen
-Flange: 400x400mm
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Horizontal |
Roof | Bitumen |
Weight (kg) | 1,65 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
