LOWER PART FOR ROOF DRAIN - (401.000.125)
×
![]()
Part Of the Series: Lower part-bitumen
Type no.: 401.000.125
EAN no.: 5705499141115

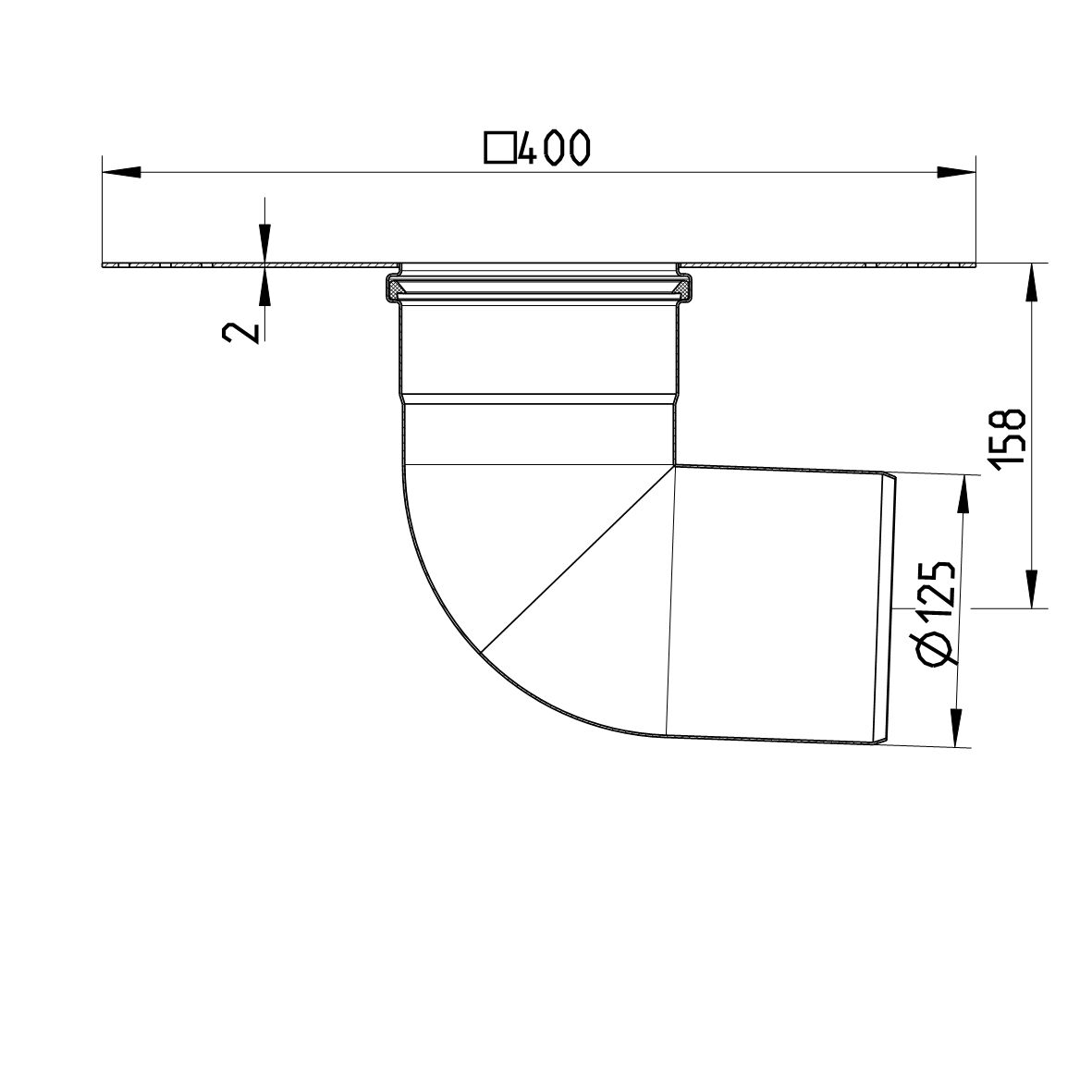

LOWER PART FOR ROOF DRAIN
-Roof: Bitumen
-Flange: 400x400mm
-Outlet: Ø125mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 125 |
| Outlet Direction | Horizontal |
| Roof | Bitumen |
| Weight (kg) | 3,33 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
