LOWER PART FOR ROOF DRAIN - (401.004.110)
×
![]()
Part Of the Series: Lower part-bitumen
Type no.: 401.004.110
EAN no.: 5705499132946
VVS no.: 164120110
RSK no.: 5173712
LVI no.: 3384517

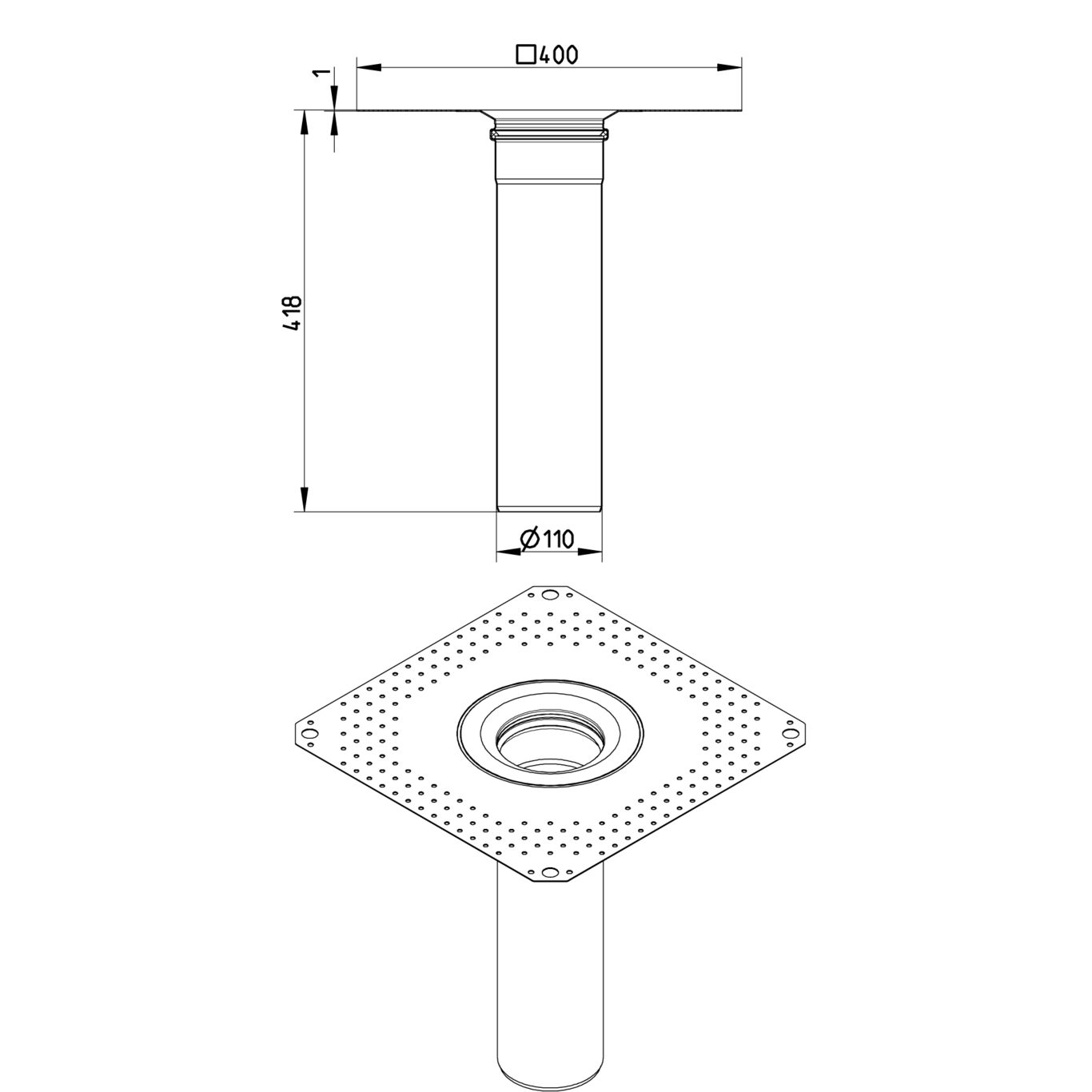

LOWER PART FOR ROOF DRAIN
-Roof: bitumen
-Flange: 400x400mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 418 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| Weight (kg) | 1,94 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
