LOWER PART FOR ROOF DRAIN - (402.000.040)
×
![]()
Part Of the Series: Lower part-single ply membrane
Type no.: 402.000.040
EAN no.: 5705499141276

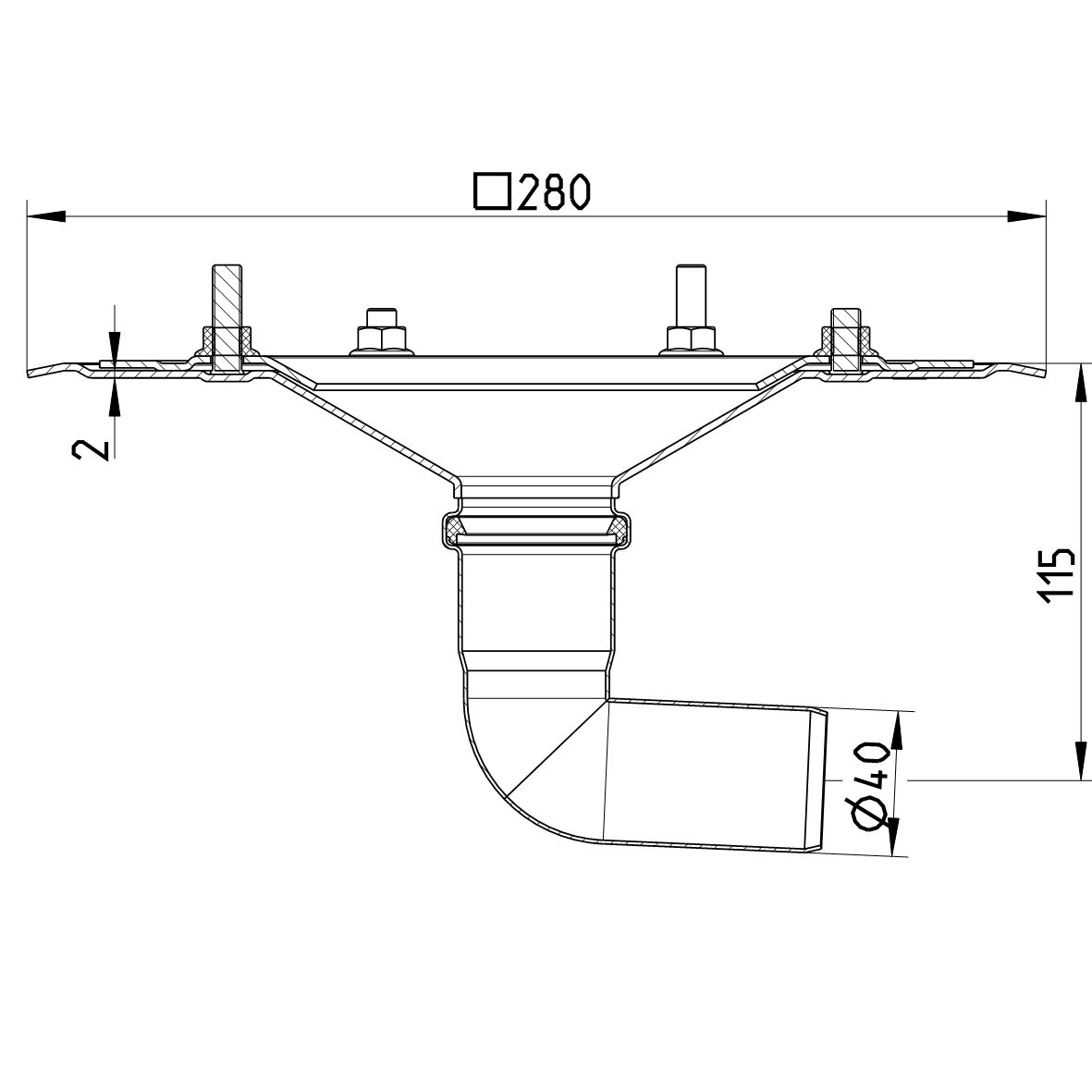

LOWER PART FOR ROOF DRAIN
- Roof: Single ply membrane
- Flange: 280x280mm
- Outlet: Ø40mm, horizontal
- Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 40 |
| Outlet Direction | Horizontal |
| Roof | Single ply membrane |
| Weight (kg) | 2,08 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
