LOWER PART FOR ROOF DRAIN - (402.000.050)
Part Of the Series: Lower part-single ply membrane
Type no.: 402.000.050
EAN no.: 5705499141283

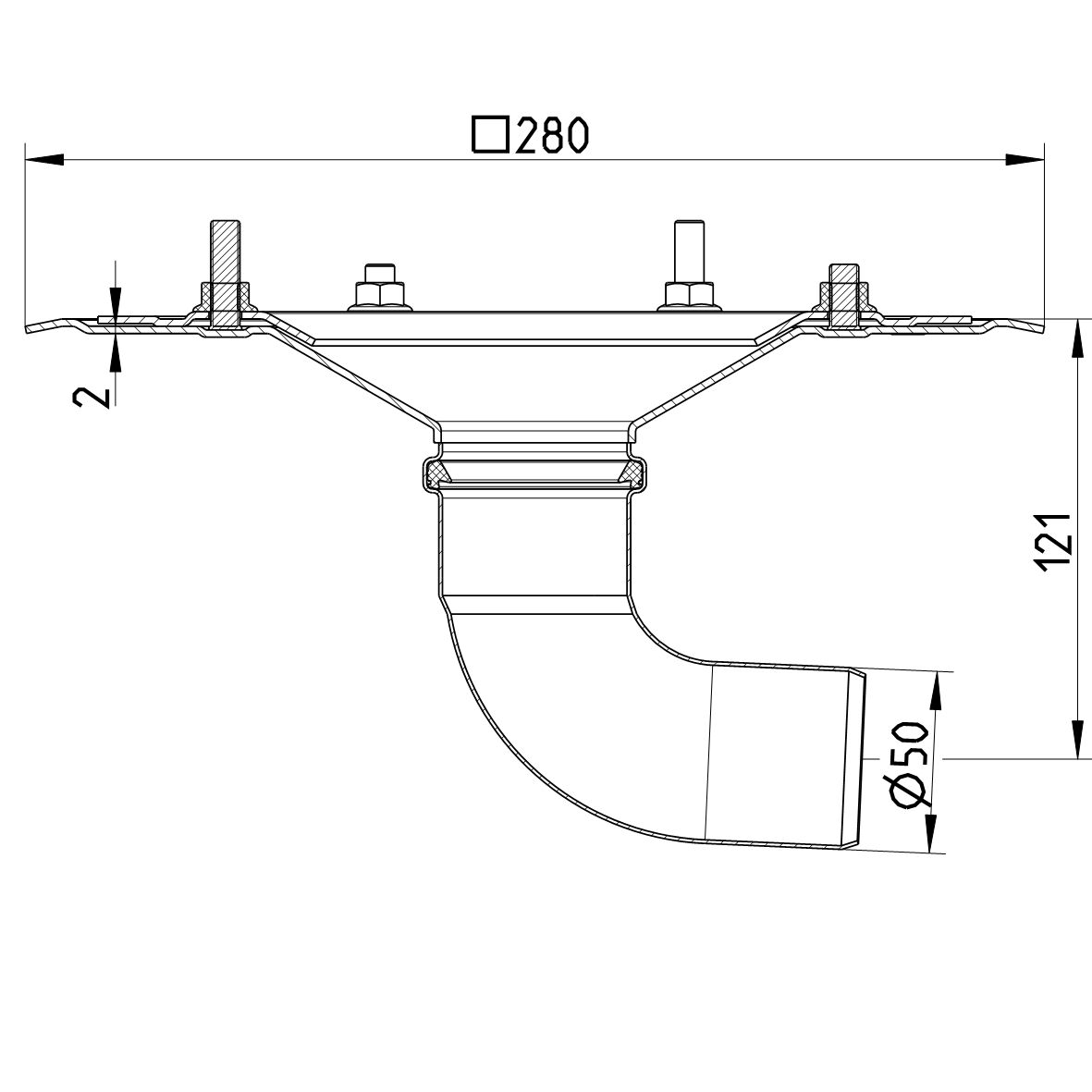

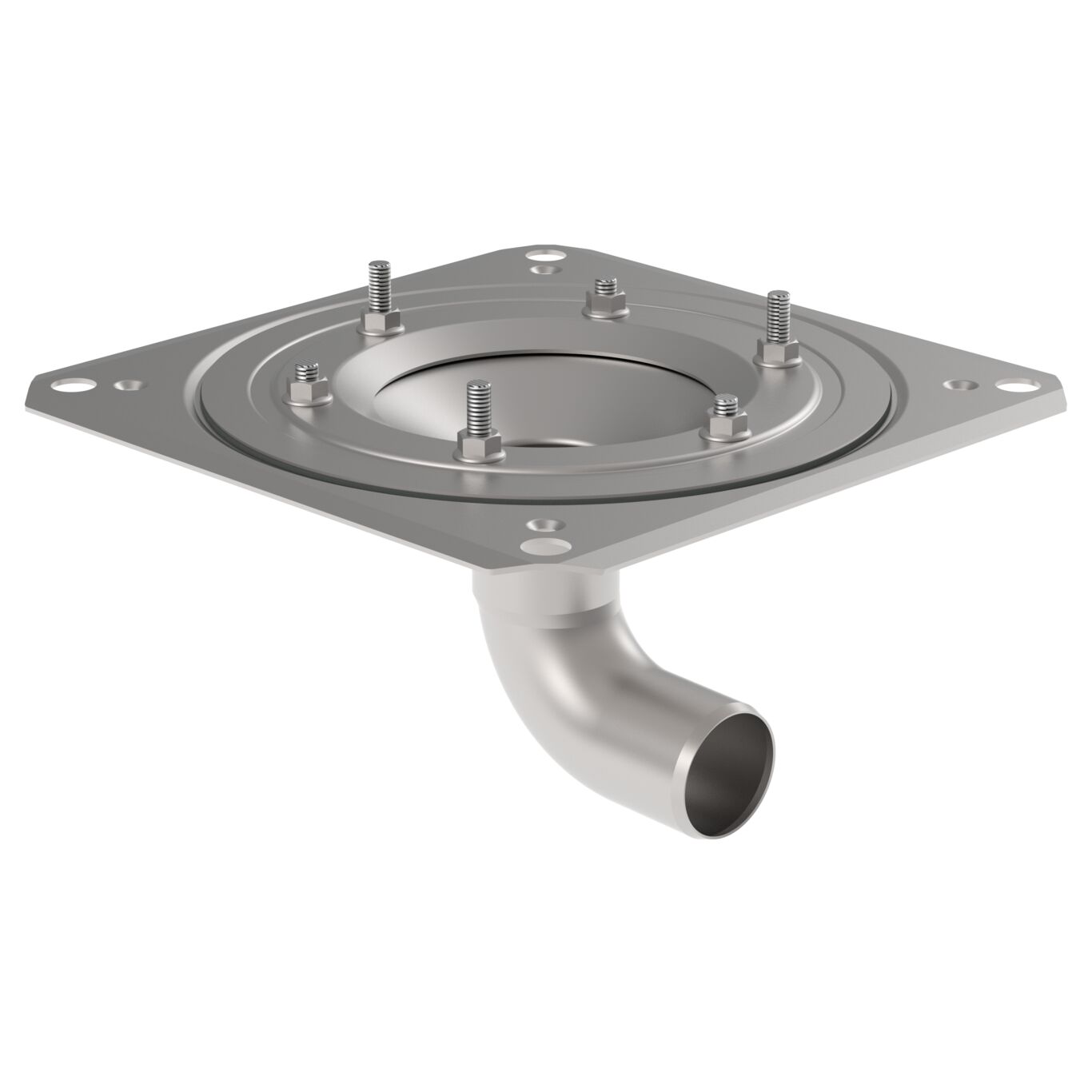

LOWER PART FOR ROOF DRAIN
- Roof: Single ply membrane
- Flange: 280x280mm
- Outlet: Ø50mm, horizontal
- Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet Diameter (mm) | 50 |
Outlet Direction | Horizontal |
Roof | Single ply membrane |
Weight (kg) | 2,12 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
