HYGIENICPRO CHANNEL 150x1500 END OUTLET - (676CC015-00CF)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 676CC015-00CF
EAN no.: 5705499135619
VVS no.: 221800015
LVI no.: 3305627
Size: 150x1500

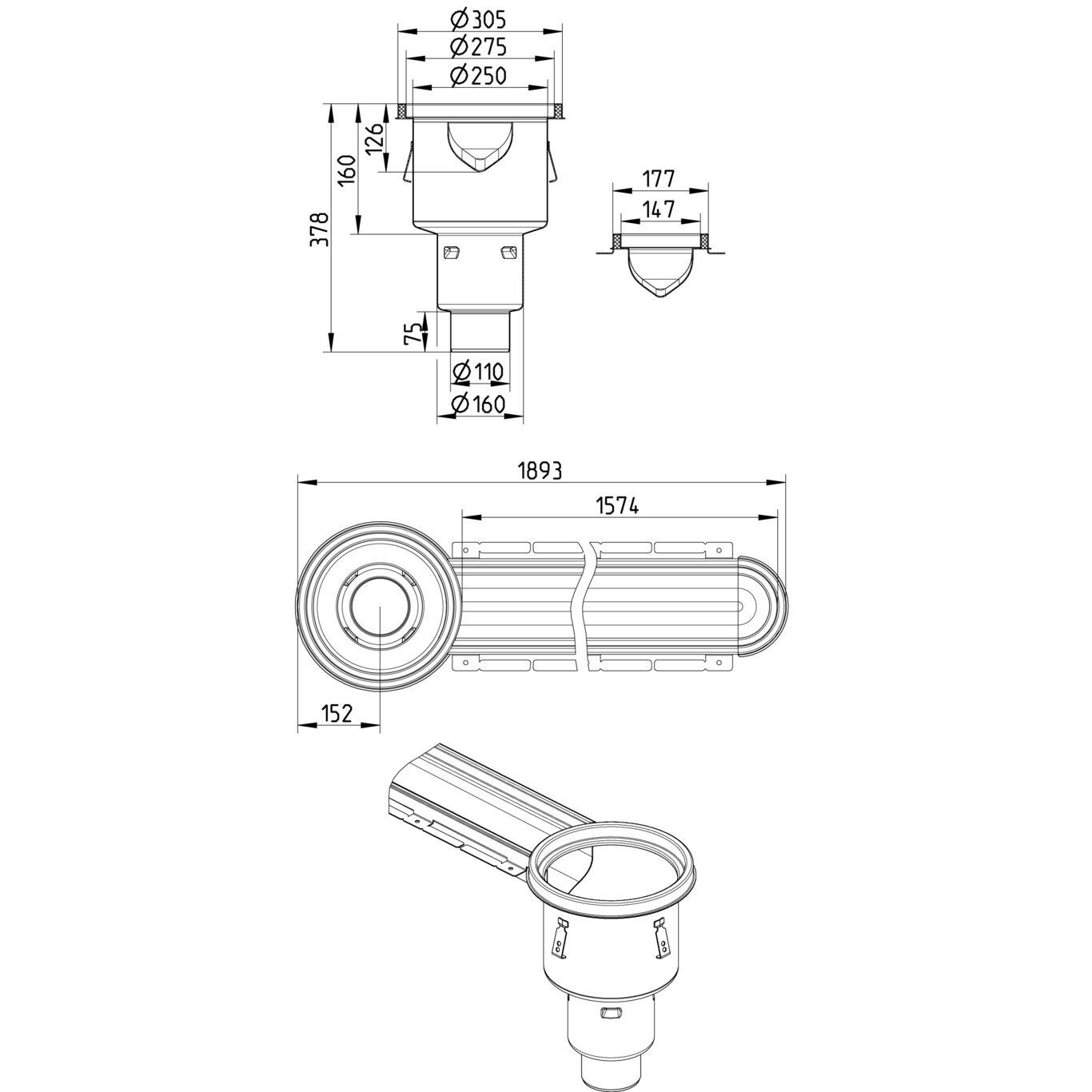

HYGIENICPRO CHANNEL 150x1500 END OUTLET
-Low model. With outlet box
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 378 |
| Outlet Box | Yes |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 150x1500 |
| Weight (kg) | 16,25 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
