HYGIENICPRO CHANNEL 150x2000 END OUTLET - (676CC020-00EF)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 676CC020-00EF
EAN no.: 5705499135770
VVS no.: 221800220
LVI no.: 3305637
Size: 150x2000

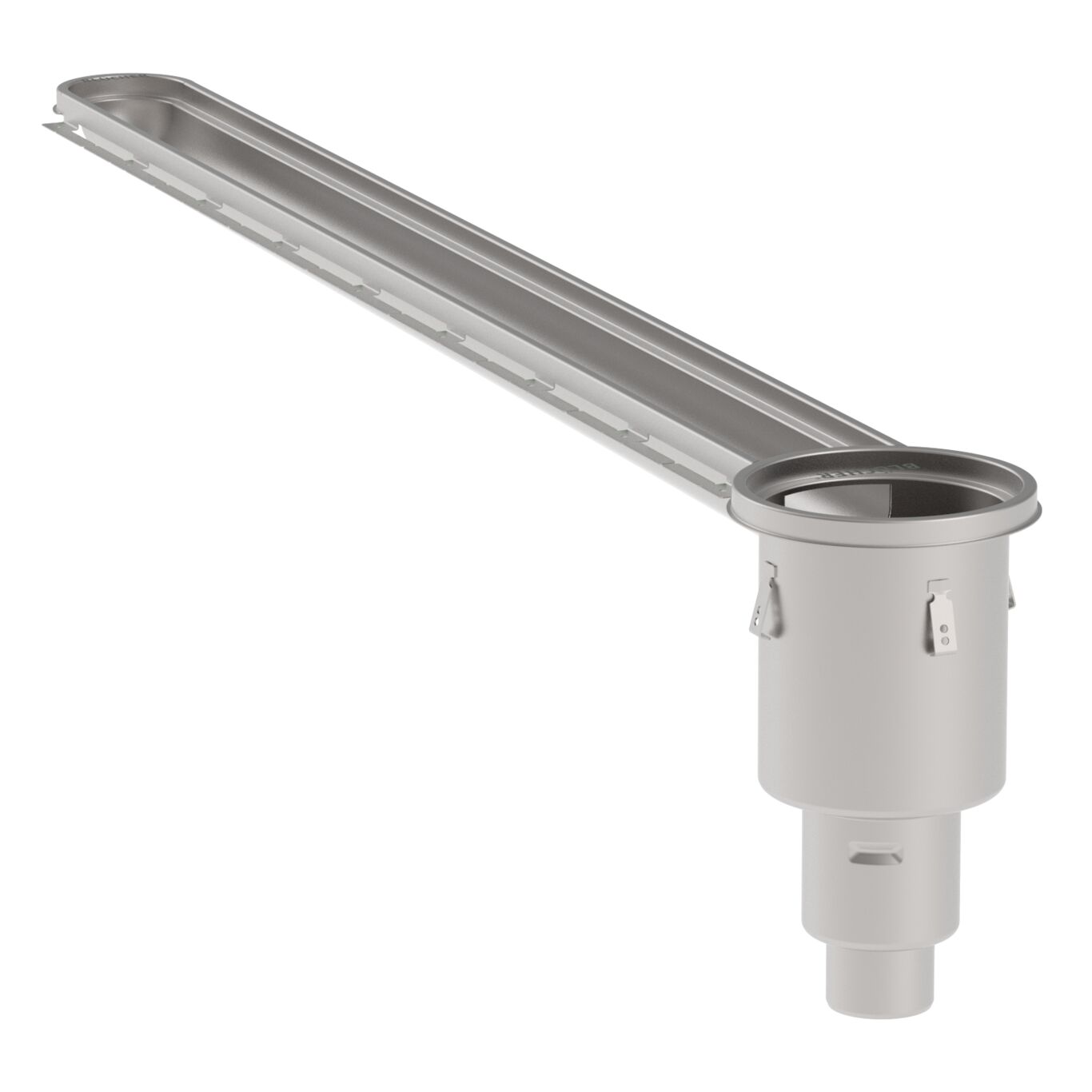

HYGIENICPRO CHANNEL 150x2000 END OUTLET
-High model. With outlet box
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301

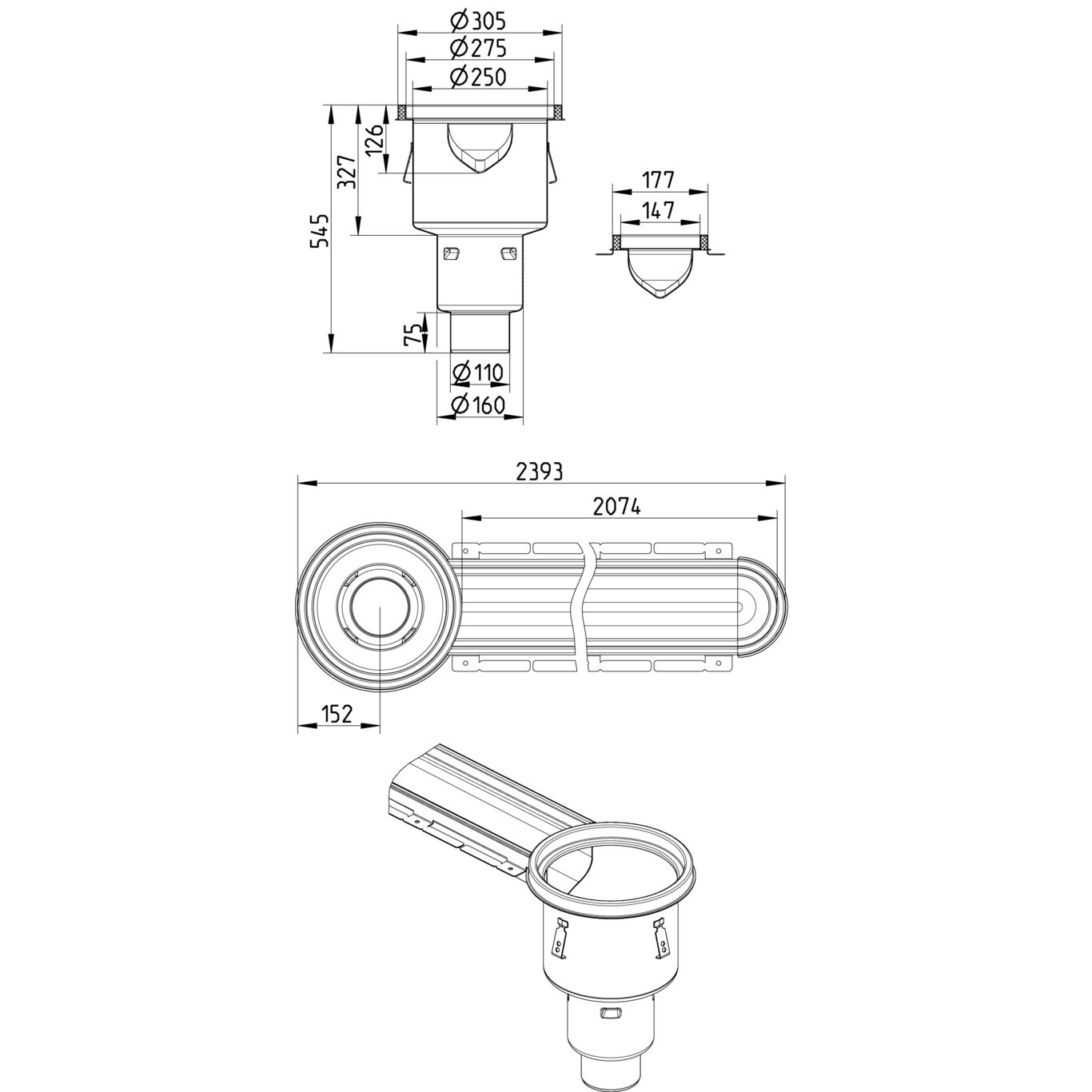

| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 545 |
| Outlet Box | Yes |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 150x2000 |
| Weight (kg) | 20,96 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
