UPPER PART SQUARE - (150.300.002)
×
![]()
Part Of the Series: Upper part-No membrane-197
Type no.: 150.300.002
EAN no.: 5705499135466
Size: 145x145

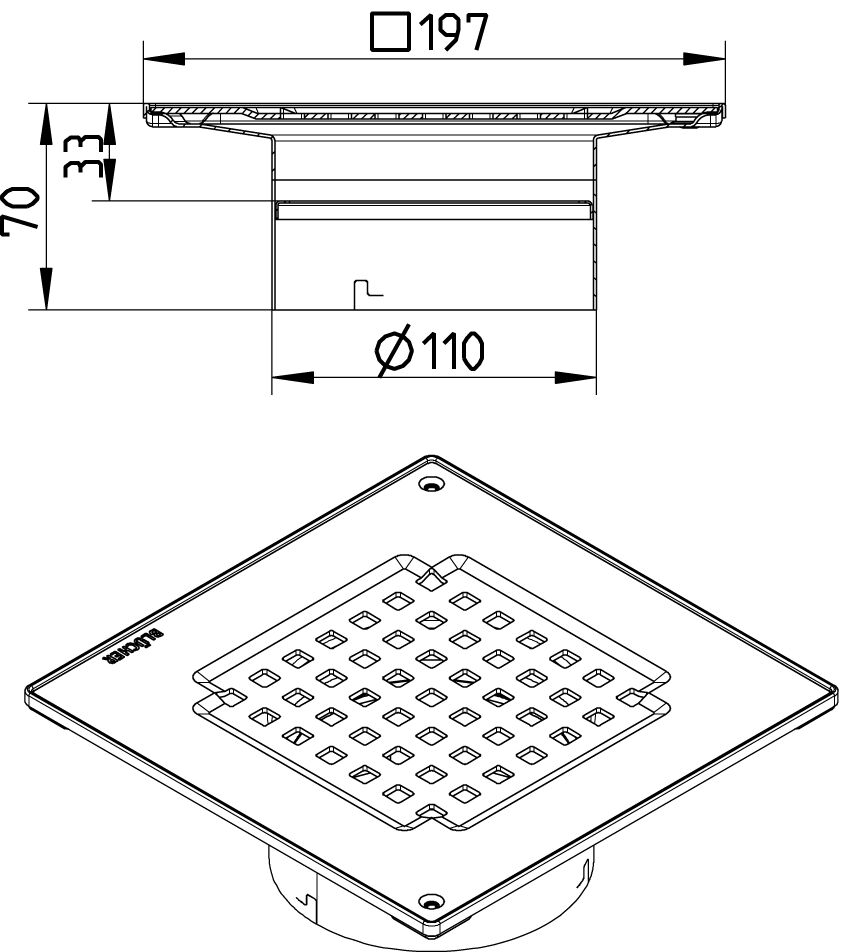

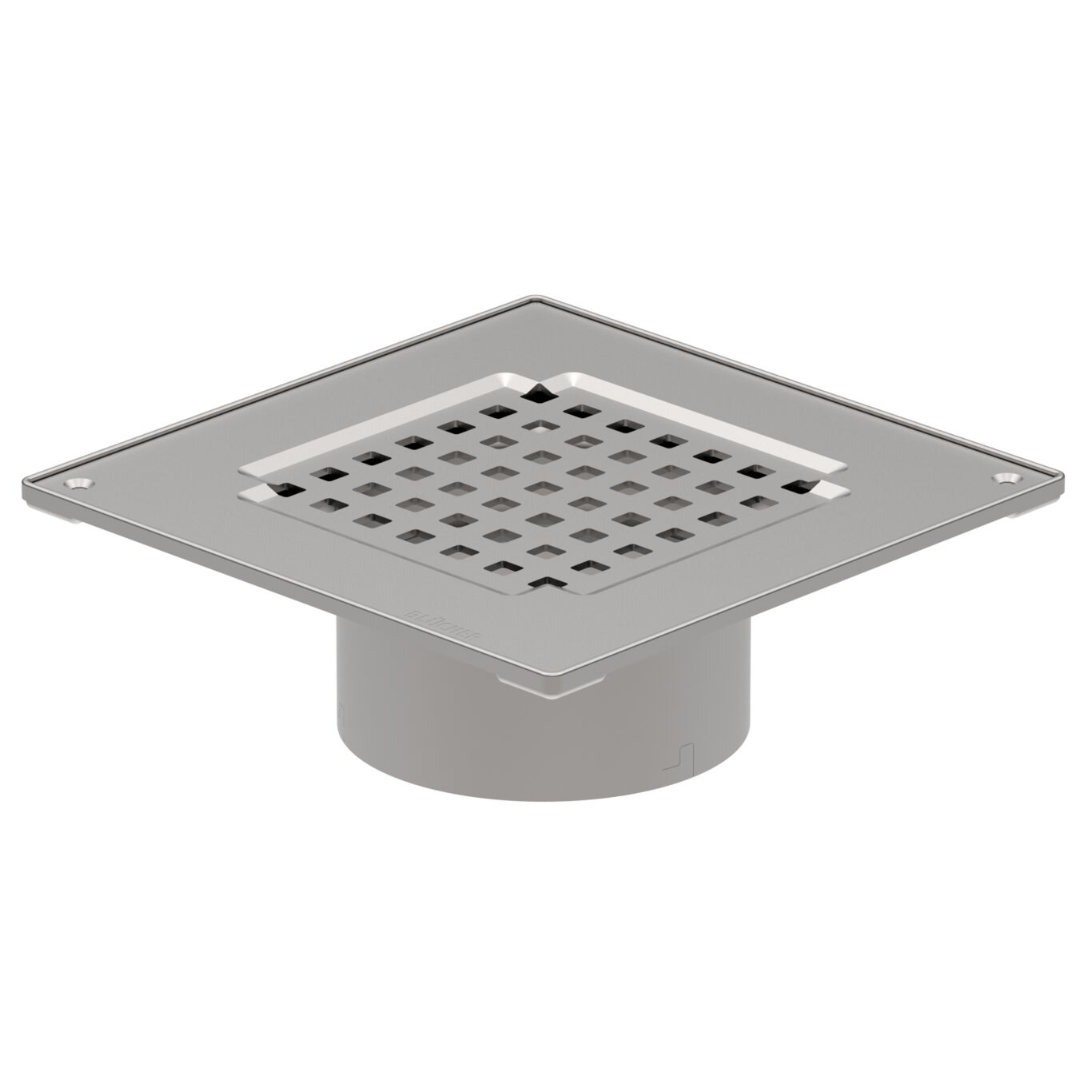

UPPER PART SQUARE
-With supporting ring for water trap
-Floor: concrete and tiled
-Frame: 197x197mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Number of Screw Holes | 2 |
| Outlet Diameter (mm) | 110 |
| Shape | Square |
| Size (mm) | 145x145 |
| Weight (kg) | 1,00 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
