LOWER PART - (150.000.075)
×
![]()
Part Of the Series: Lower part-110
Type no.: 150.000.075
EAN no.: 5705499107074
RSK no.: 7121868
NRF no.: 3396322
LVI no.: 3303753

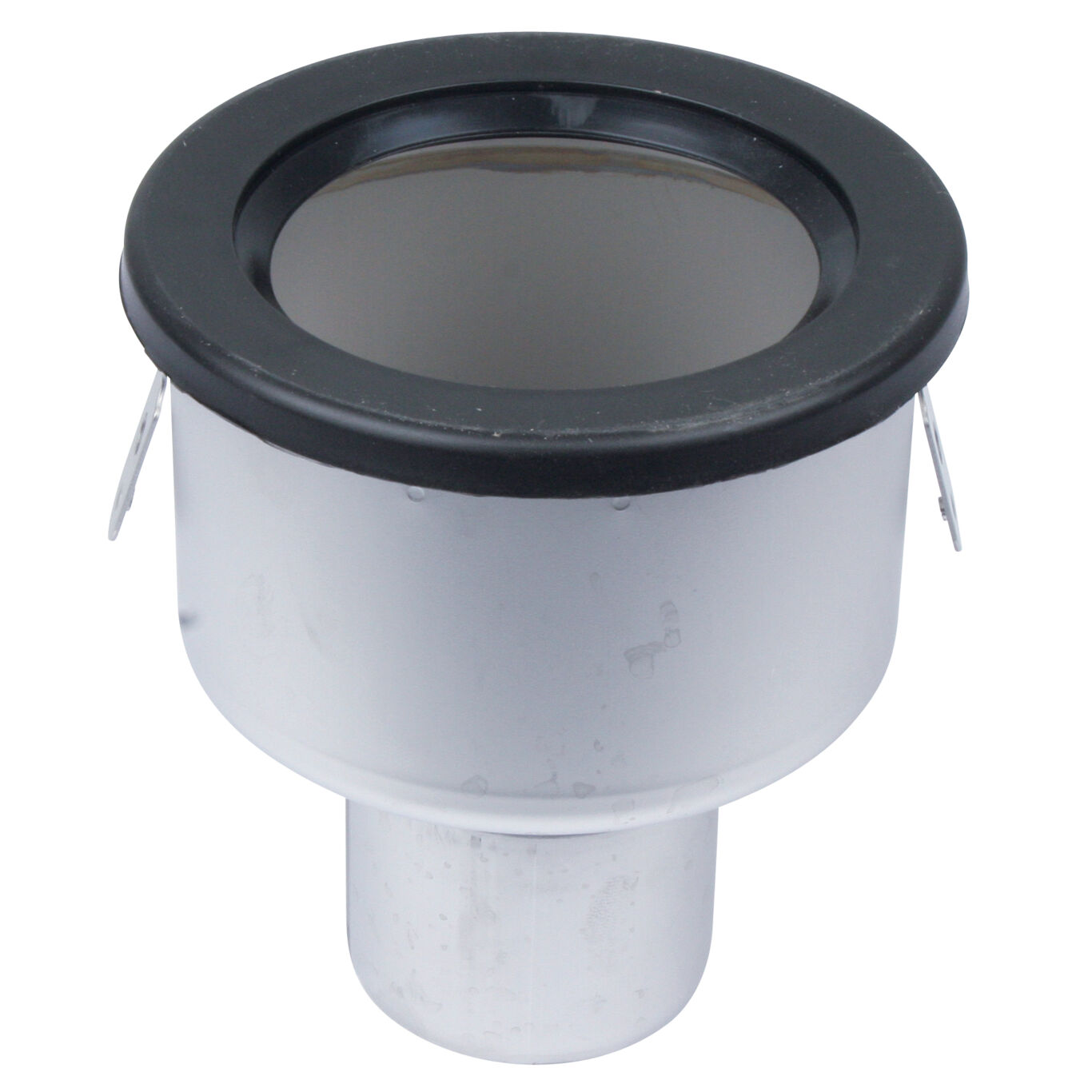

LOWER PART
-No membrane flange
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 173 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Weight (kg) | 0,94 |
-
Downloads

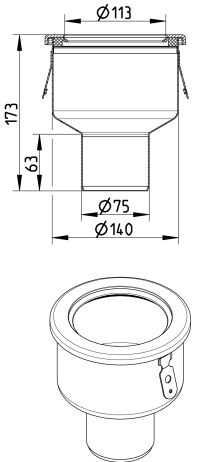

- DWG - 150.000.075
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Channels
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Kitchen Channels
- Installation heights - Lower parts combined with Upper Parts with Square or Circular Top with 200-300mm Frame size
-
Approval Information
For approval information, please refer to the below approval certificates.
