UPPER PART - (710.502.000)
×
![]()
Part Of the Series: Upper part-No membrane-205
Type no.: 710.502.000
EAN no.: 5705499108286
NRF no.: 3396098
LVI no.: 3303813
Size: Ø205

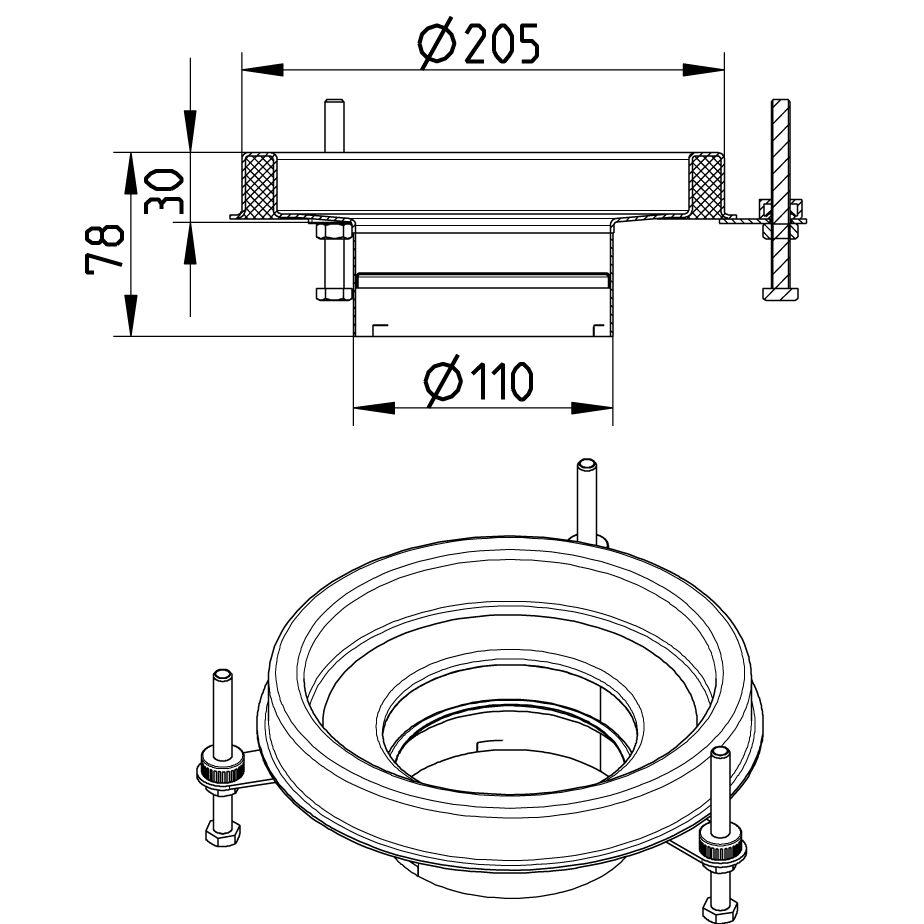

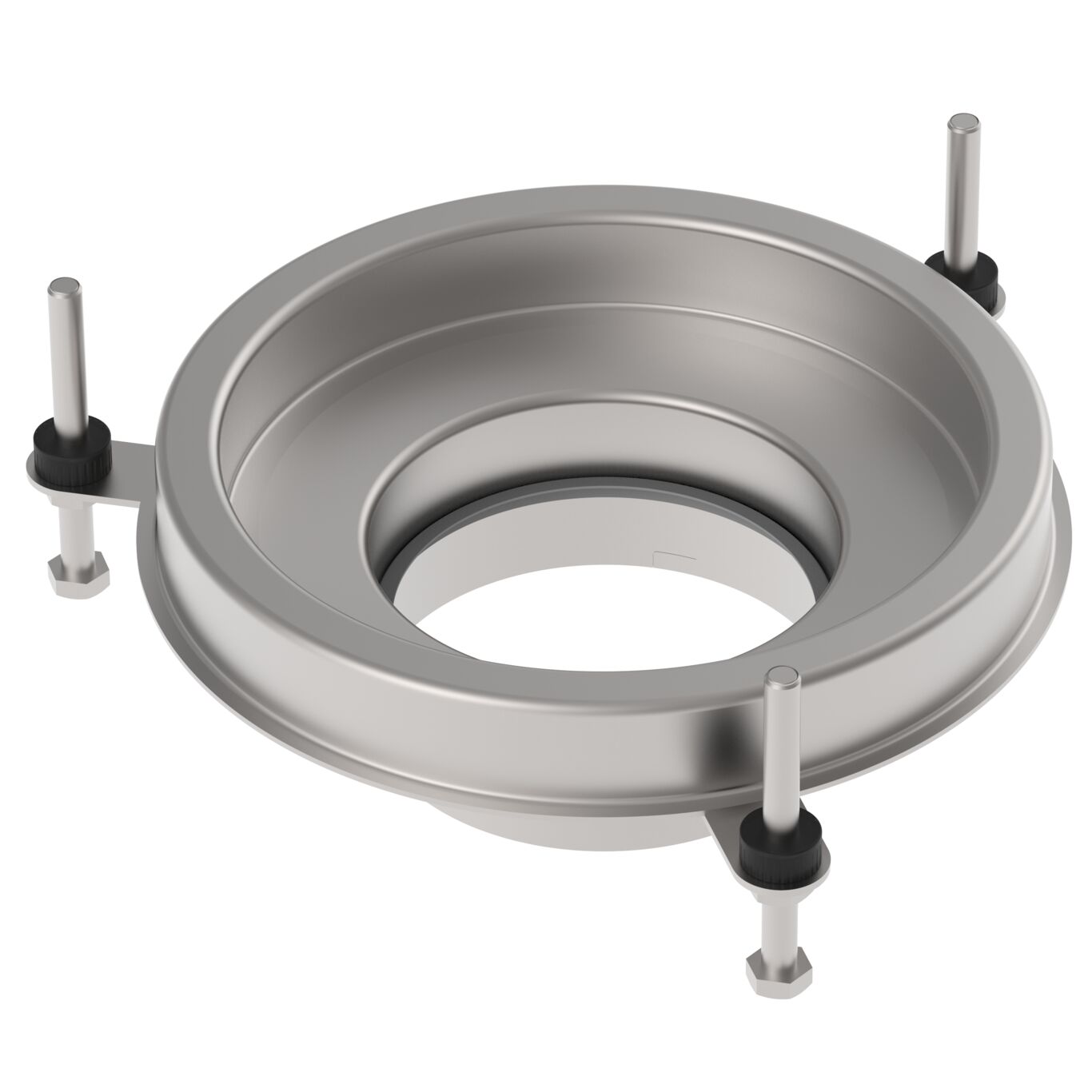

UPPER PART
-With supporting ring for water trap
-Floor: resin
-Frame: Ø205mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 78 |
| Number of Screw Holes | 0 |
| Outlet Diameter (mm) | 110 |
| Shape | Round |
| Size (mm) | Ø205 |
| Weight (kg) | 1,56 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
