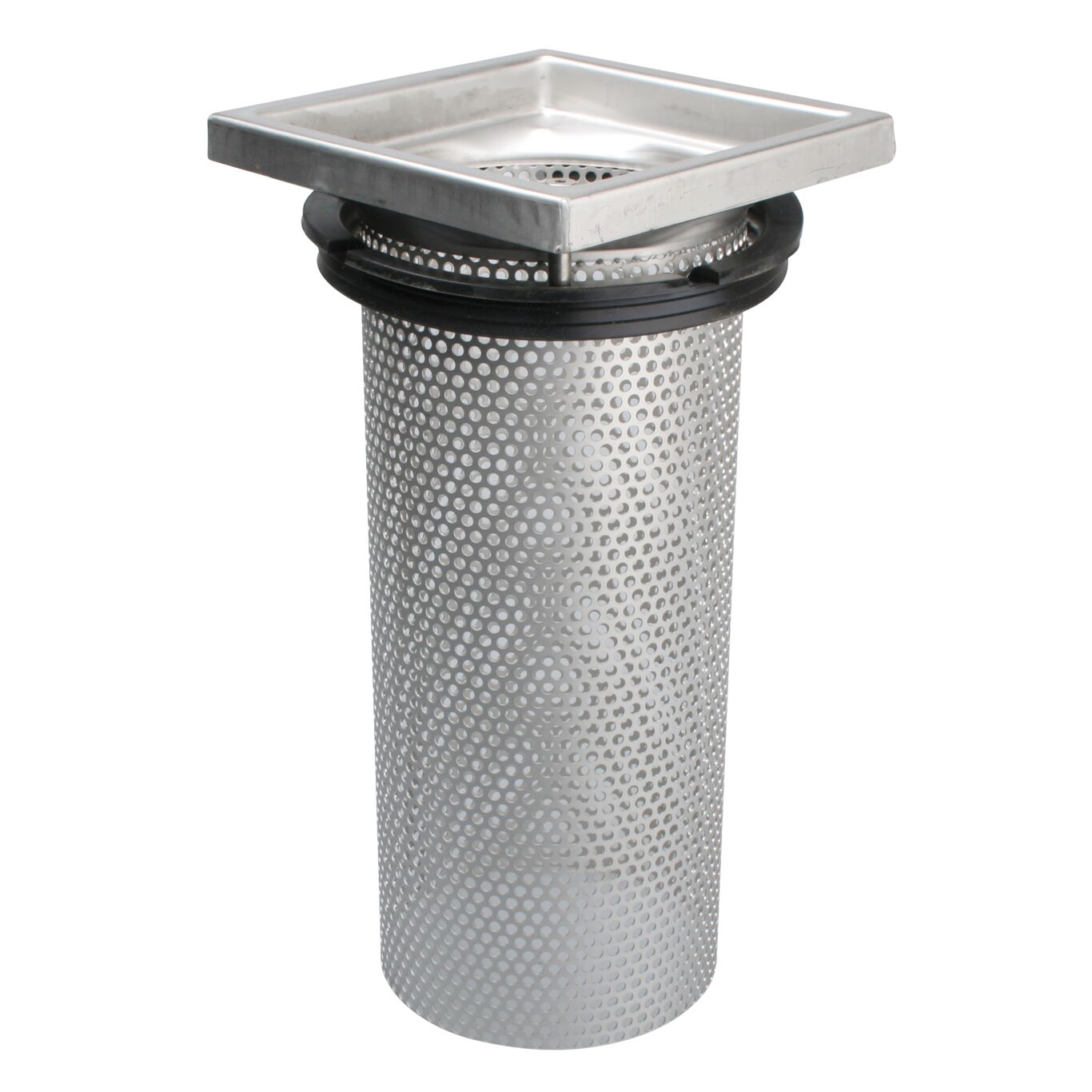

UPPER PART FOR OUTDOOR DRAIN - (774.472.000.01 S)
×
![]()
Part Of the Series: Upper part-outdoor/roof
Type no.: 774.472.000.01 S
EAN no.: 5705499127782
VVS no.: 153018158
NRF no.: 3406402
Size: 200x200

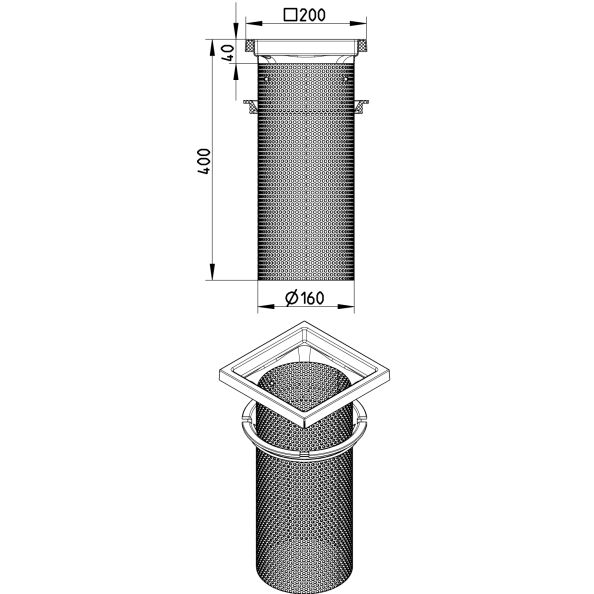

UPPER PART FOR OUTDOOR DRAIN
-Frame: 200x200mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 400 |
| Number of Screw Holes | 3 |
| Outlet Diameter (mm) | 160 |
| Shape | Square |
| Size (mm) | 200x200 |
| Weight (kg) | 1,94 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
