LOWER PART - (151.000.075)
×
![]()
Part Of the Series: Lower part-110
Type no.: 151.000.075
EAN no.: 5705499107111
LVI no.: 3303856

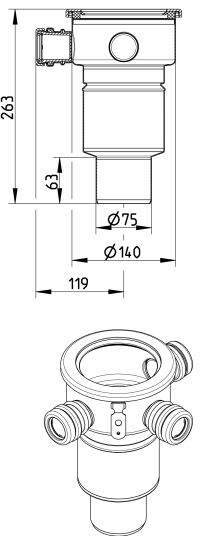

LOWER PART
-With side inlets
-No membrane flange
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 263 |
| Number of Inlets | 3 (Ø32/40mm) |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Weight (kg) | 1,40 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
