ROOF DRAIN FOR GRAVITY - (401.170.110)
×
![]()
Part Of the Series: Drain for gravity-bitumen
Type no.: 401.170.110
EAN no.: 5705499134872
VVS no.: 164107110
RSK no.: 5173690

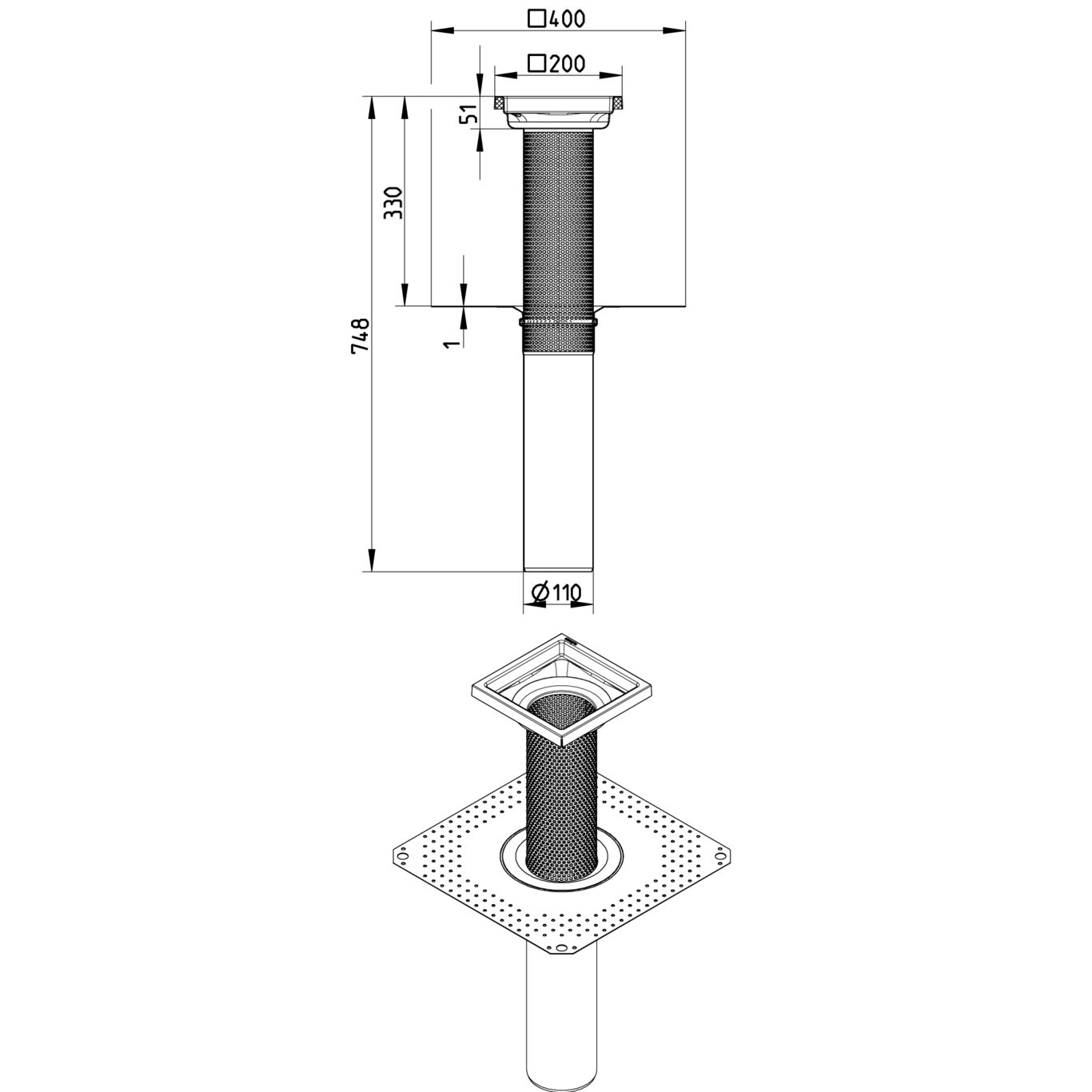

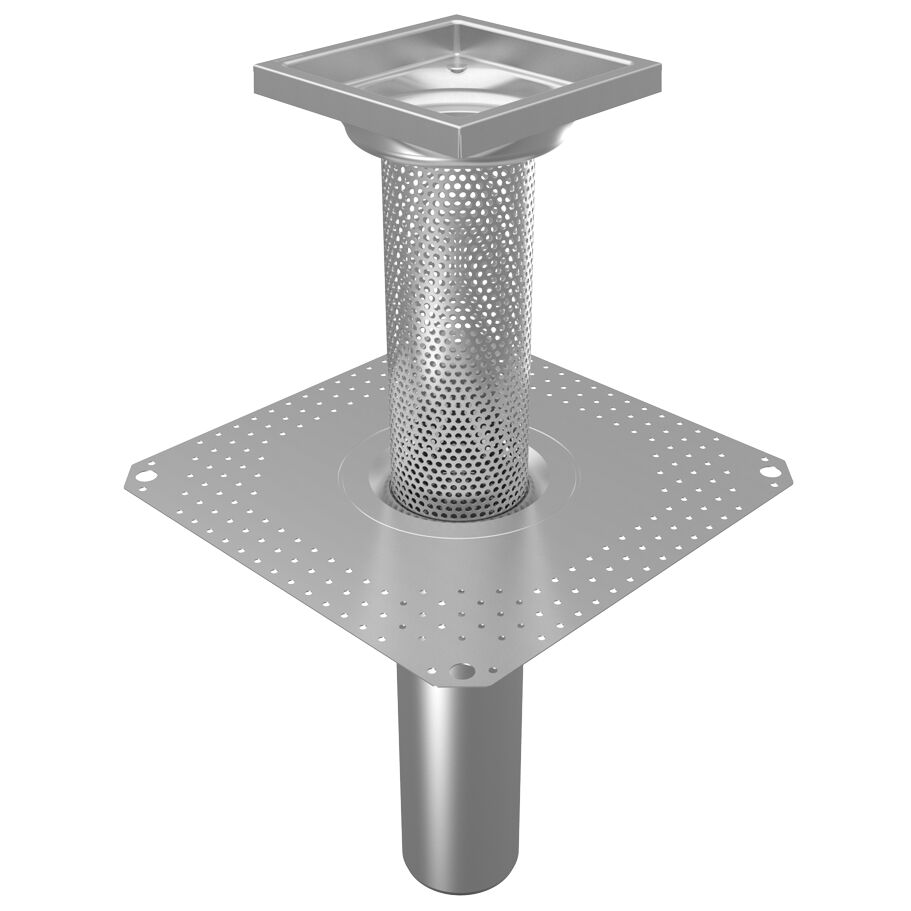

ROOF DRAIN FOR GRAVITY
-Perforated upperpart
-Roof: bitumen
-Flange: 400x400mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 5.1 |
| Minimum Height (mm) | 748 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| System | Gravity |
| Weight (kg) | 4,02 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
