HYGIENICPRO CHANNEL 150x9000 CENTER OUTLET - (676CC090-45CF S)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 676CC090-45CF S
EAN no.: 5705499137552
LVI no.: 3305706
Size: 150x9000

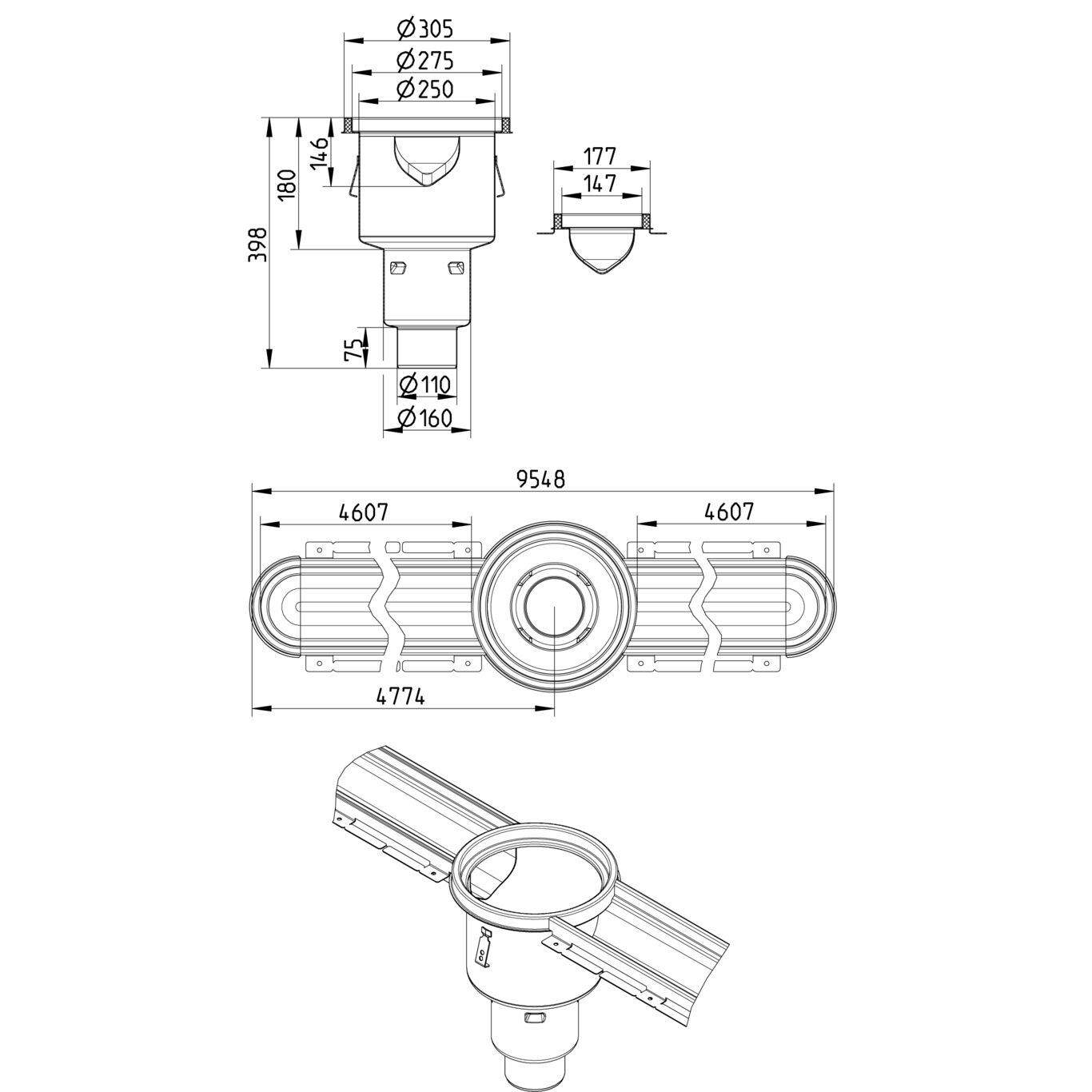

HYGIENICPRO CHANNEL 150x9000 CENTER OUTLET
-Low model. With outlet box
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 398 |
| Outlet Box | Yes |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (mm) | 150x9000 |
| Weight (kg) | 62,66 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
