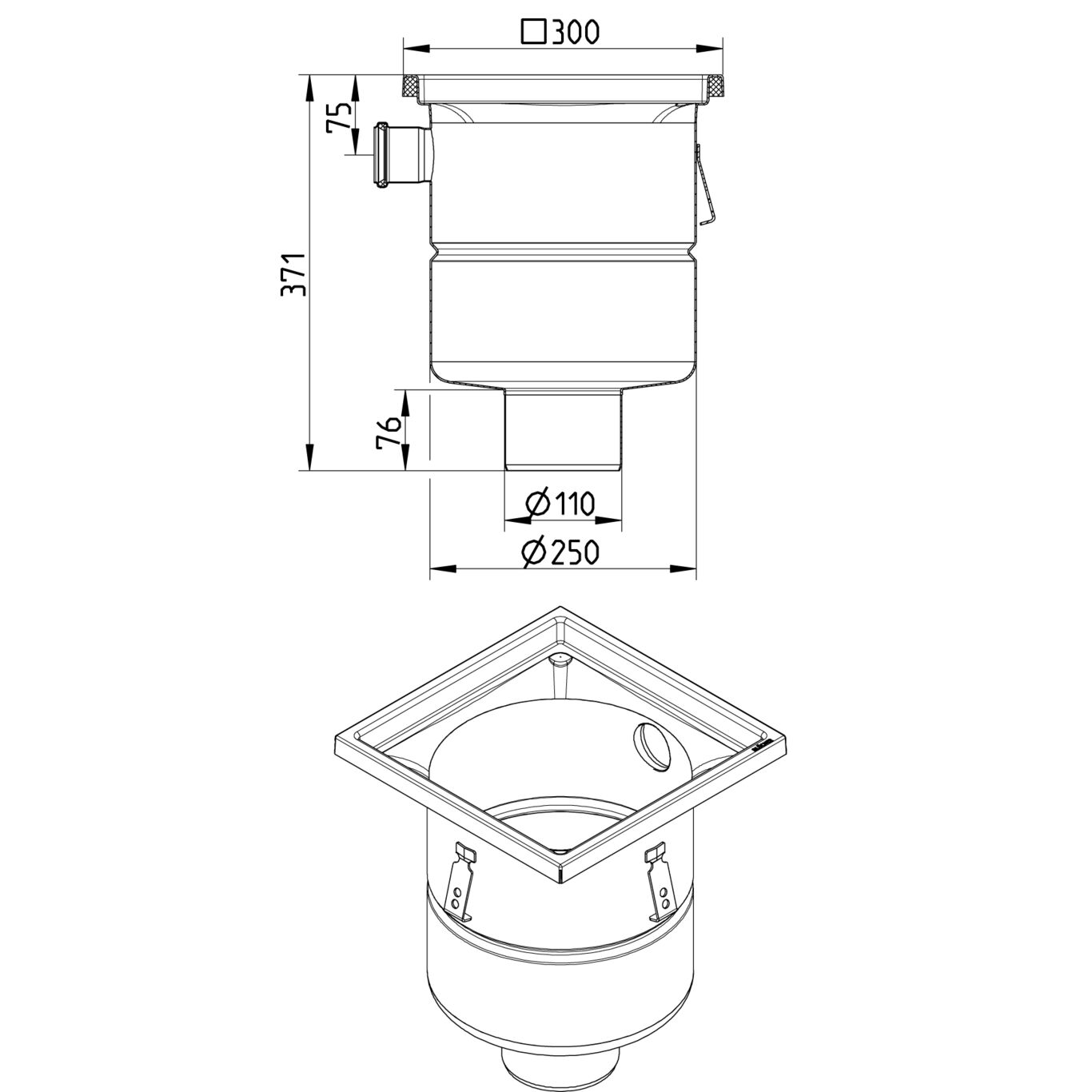

INDUSTRIAL DRAIN - (760.403.110.91 S)
×
![]()
Part Of the Series: Drain-No membrane-300
Type no.: 760.403.110.91 S
EAN no.: 5705499118339
VVS no.: 153000326
Size: 300x300
INDUSTRIAL DRAIN
-With side inlet
-Floor: concrete and tiled
-No membrane, frame: 300x300mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Adjustable | No |
| Floor | Concrete / Tiled |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Number of Inlets | 1 (Ø50mm) |
| Number of Screw Holes | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 300x300 |
| Weight (kg) | 4,92 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
