UPPER PART - (774.402.000.01 S)

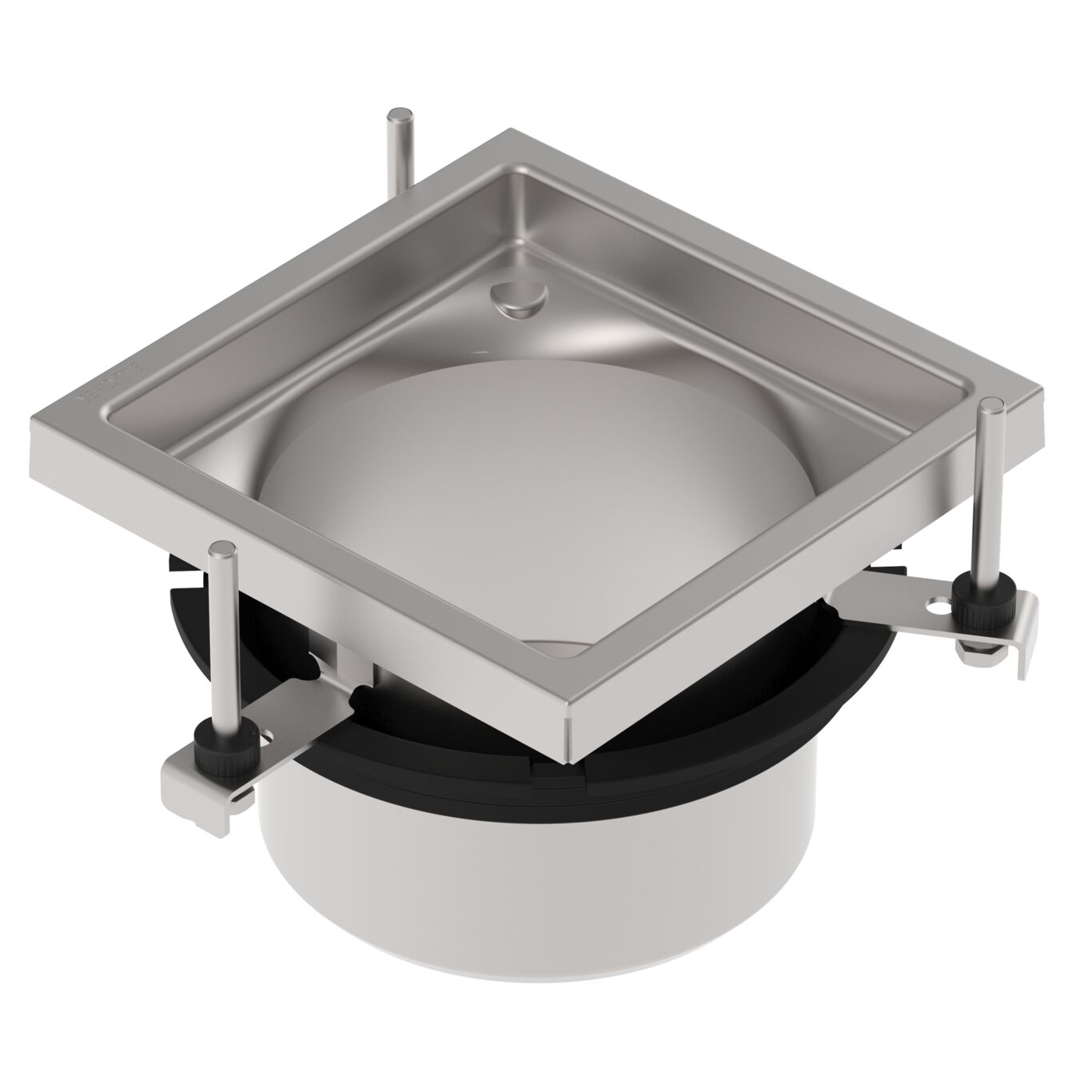

Product Image - Upper part-No membrane-250

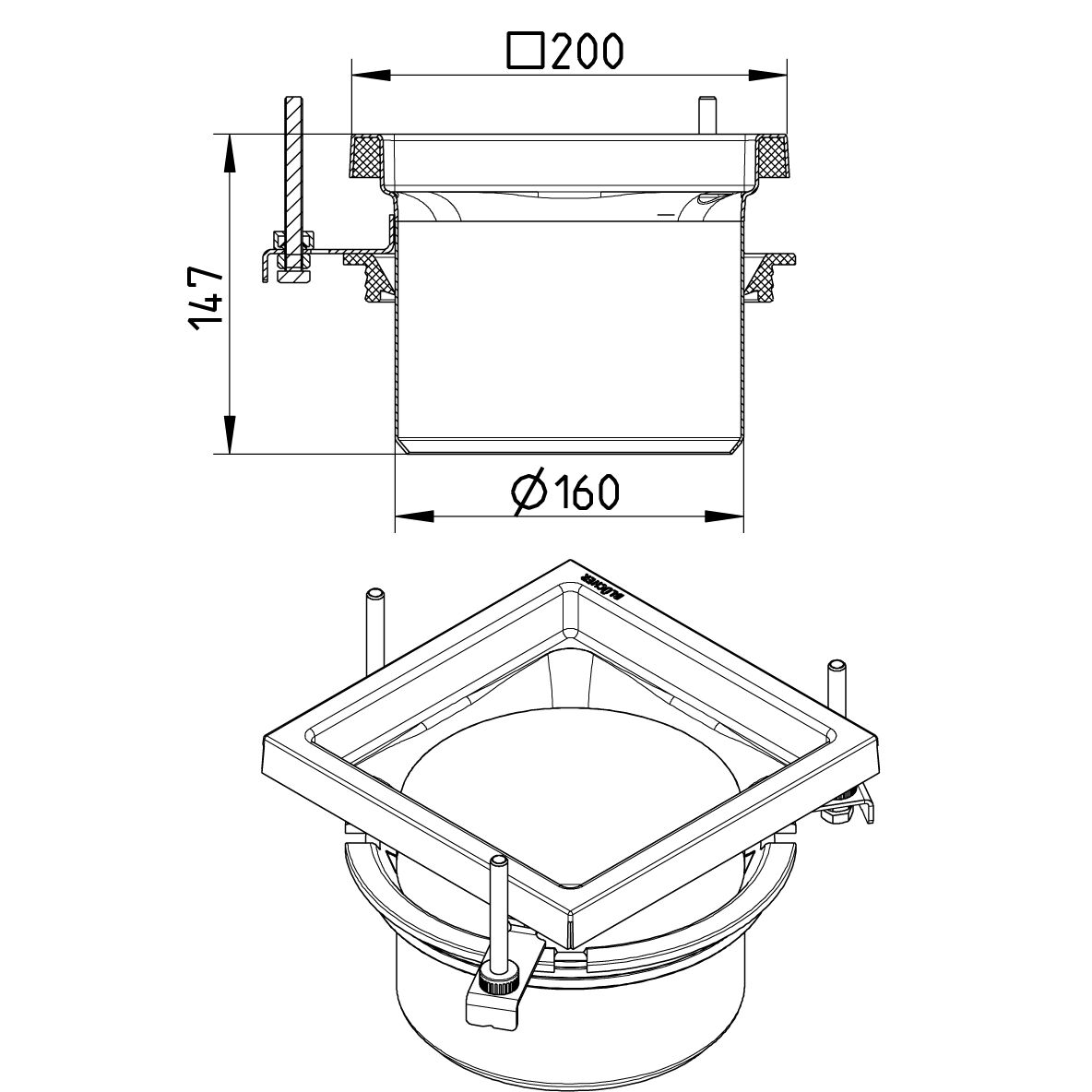

Line Drawing - Upper part-No membrane-200
×

Part Of the Series: Upper part-No membrane-200

Type no.: 774.402.000.01 S

EAN no.: 5705499112016

LVI no.: 3303824

Size: 200x200

UPPER PART
- With screwlock
- Floor: concrete and tiled
- Frame: 200x200mm
- Stainless steel: AISI316L/EN1.4404

Product Specification
Floor Concrete / Tiled
Material AISI 316L
Material (EN) EN 1.4404
Number of Screw Holes 1
Outlet Diameter (mm) 160
Shape Square
Size (mm) 200x200
Weight (kg) 1,85
Find a Sales Representative
Find a Wholesaler/Distributor
Customer Support Access BIM Drawings

Share this Product

Product Accessories

Filter Baskets

FILTER BASKET, NO BOTTOM SLOT - (780.002.004.05)

FILTER BASKET - (780.002.003.05)

FILTER BASKET - (780.002.000.05)

Gratings

LADDER GRATING SQUARE - (790.168.001.25 S)

HYGIENICPRO GRATING SQUARE - (790.168.001.60)

BLANK PLATE SQUARE - (790.168.001.00)

SLOT GRATING SQUARE - (790.168.001.10 S)

3MM GRATING SQUARE - (790.168.001.03 S)

Lower Parts

LOWER PART - (775.002.110 S)

LOWER PART - (775.002.075 S)

LOWER PART - (760.160.075 S)

LOWER PART - (769.002.075 S)

LOWER PART - (771.002.110 S)

LOWER PART - (763.002.110 S)

LOWER PART - (760.160.110 S)

LOWER PART - (769.002.110 S)

LOWER PART, LOW - (763.042.110 S)

LOWER PART - (763.002.075 S)

LOWER PART - (771.002.075 S)

LOWER PART - (774.002.110 S)

LOWER PART - (760.002.110 S)

LOWER PART - (760.002.075 S)

LOWER PART - (774.002.075 S)

Middle Parts

INTERMEDIATE SECTION WITH MEMBANE FLANGE - (777.002.000 S)

INTERMEDIATE SECTION WITH CLAMPING FLANGE - (779.002.000 S)

Other Products

SAND BUCKET - (780.002.000.00)

SEALING RING FOR LOWER PART - (700.002.EPDM)

Traps

REMOVABLE TWO-PART WATER TRAP - (562.102.000 S)

REMOVABLE WATER TRAP - (562.002.000 S)

REMOVABLE WATER TRAP - (562.082.000 S)
