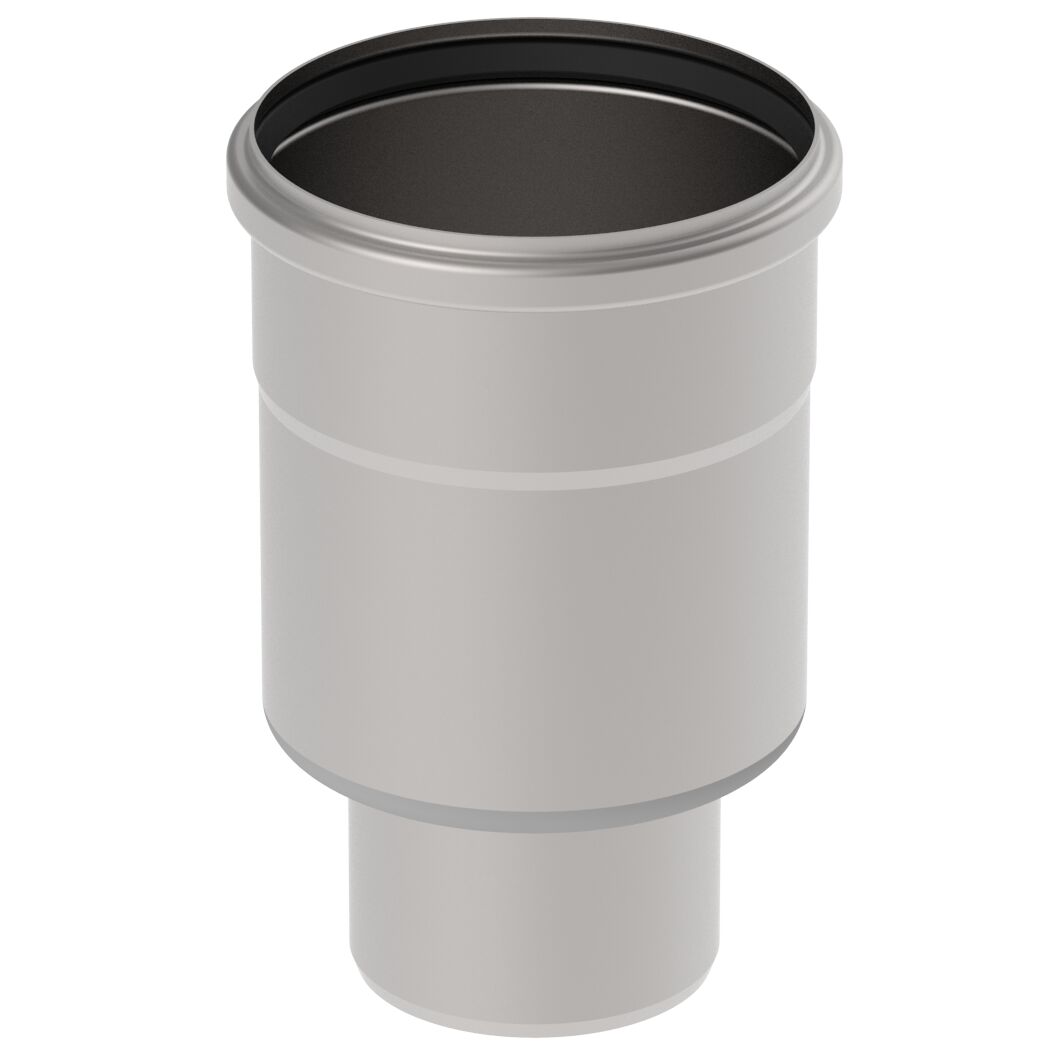

LOWER PART - (760.160.110 S)
×
![]()
Part Of the Series: Lower part-160
Type no.: 760.160.110 S
EAN no.: 5705499135350
LOWER PART
-No membrane flange
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |

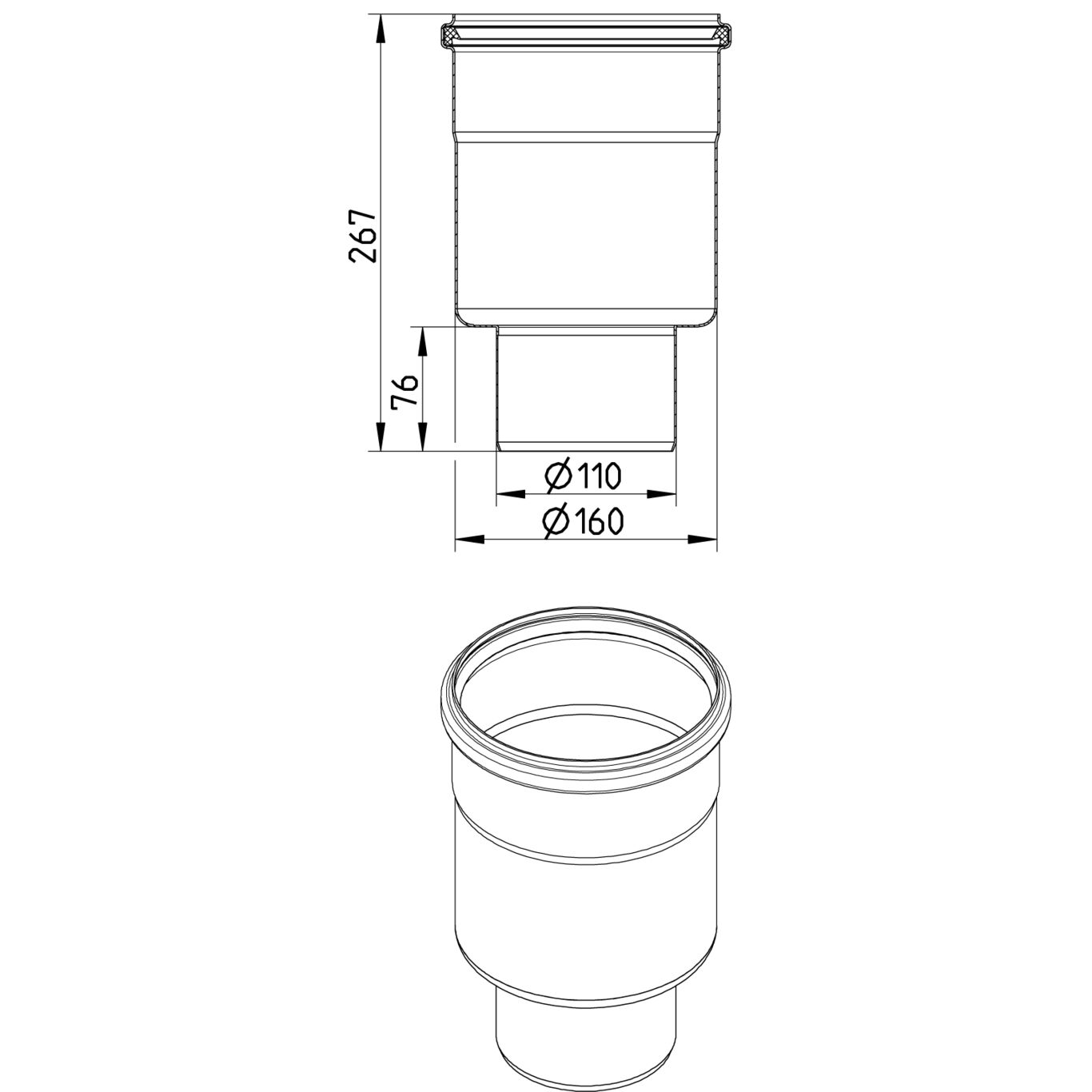

| Minimum Height (mm) | 267 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Weight (kg) | 1,35 |
-
Downloads
- DWG - 760.160.110
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Channels
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Kitchen Channels
- Installation heights - Lower parts combined with Upper Parts with Square or Circular Top with 200-300mm Frame size
-
Approval Information
For approval information, please refer to the below approval certificates.
