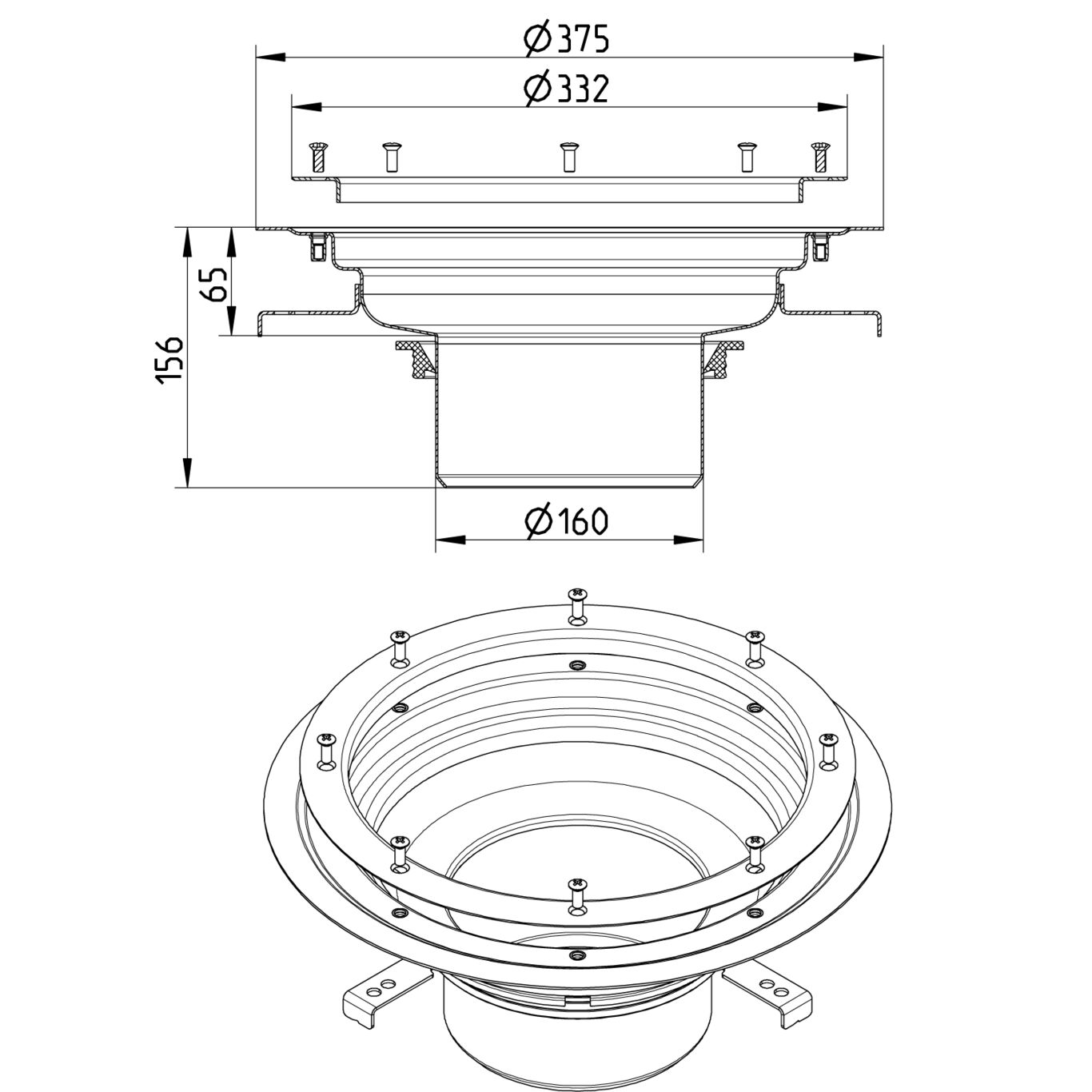

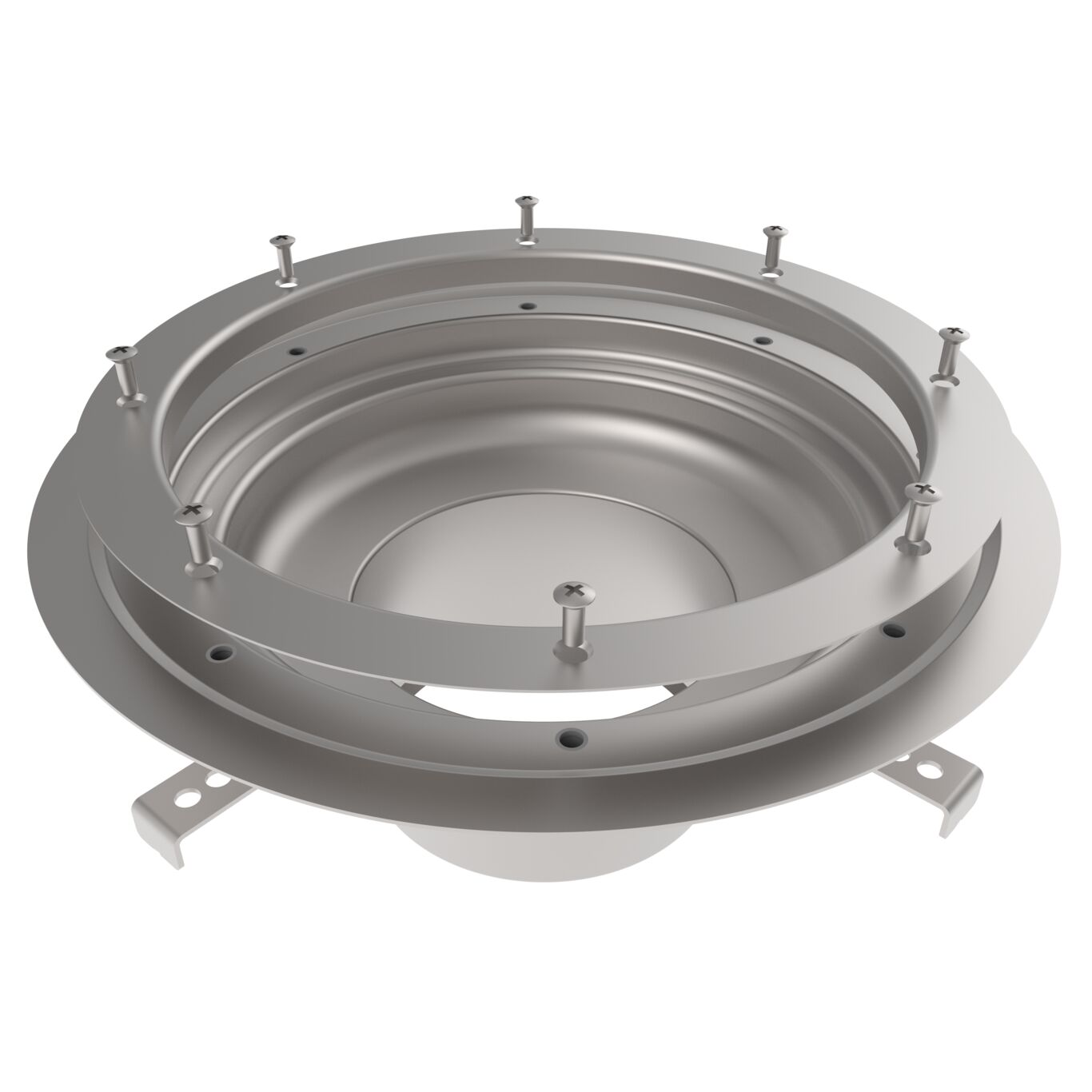

UPPER PART - (710.603.000 S)
×
![]()
Part Of the Series: Upper part-Vinyl-332
Type no.: 710.603.000 S
EAN no.: 5705499108477
VVS no.: 153038318
LVI no.: 3303820
Size: Ø332
UPPER PART
-With supporting ring for water trap
-Floor: vinyl
-Frame: Ø332mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Vinyl |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 156 |
| Number of Screw Holes | 0 |
| Outlet Diameter (mm) | 160 |
| Shape | Round |
| Size (mm) | Ø332 |
| Weight (kg) | 5,43 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
